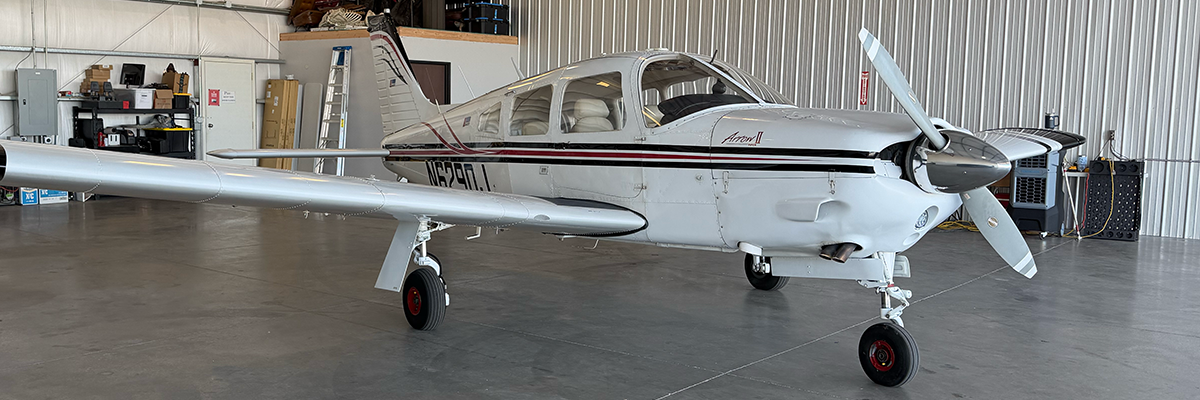

N6290J – Piper Arrow II – PARTner 91 Arizona Aircraft

1976 Piper Arrow II
PA-28R-200
N6290J

Low time complex aircraft,
All-Garmin panel,
flown regularly, ready to go

Airframe TTAF	Engine SMOH	Prop SPOH
3075	975	975

$131,000 USD

A perfect blend of retractable performance, predictable handling, and proven cross-country reliability.

The Piper PA-28R-200 Arrow II is widely regarded as a premier cross-country aircraft in the general aviation community, celebrated for its predictable handling characteristics and stable flight profile. As a retractable-gear, complex personal cross-country flyer, it strikes an optimal balance between operational economy and performance, offering reliable cruise speeds alongside a highly manageable maintenance profile. Its spacious cabin, forgiving stall behavior, and robust Lycoming engine make it an ideal step-up aircraft for pilots transitioning to high-performance flying or seeking a dependable, long-term regional traveler.

This low time, IFR-equipped Piper Arrow II has been a faithful and well running aircraft for its current owners, but after several years of aircraft ownership, the pilot has transitioned to military flying responsibilities. So, we are looking for a good home for this Arizona-based, always hangared Arrow II. This aircraft has complete logbooks, and has no damage history which is unusual for a retractable gear bird of this vintage. Overall, this is a nice Arrow II.

Please carefully review the detailed, high resolution image gallery and walkaround video below. You'll see every inch of the aircraft. If you reach out to me, I can digitally share all logbooks and important documents.

General Specifications
PA-28R-200 Arrow II

Power - Lycoming IO-360-C1C:	200 HP	Recommended TBO:	2000 HRS
Service Ceiling:	15,000 FT	Airframe Length:	24 FT 3 IN
Wingspan:	30 FT 0 IN	Height:	8 FT 0 IN
Takeoff Distance (ground roll):	770 FT	Landing Distance:	780 FT
Best Cruise Speed:	143 KTS	Max Range:	600 NM
Fuel Burn:	10.2 GPH	Fuel Capacity:	50 GAL
Rate of Climb:	900 FPM	Vs1 (Stall):	55 KIAS

These specifications were gathered from a variety of sources and are not guaranteed.

Numbers and Dates

Born On:	17 June 1976
Factory Serial Number:	28R-7635333
Flight Rules:	IFR
Total Time on Airframe (TTAF):	3075 hrs
Engine Time Since 2005 Overhaul (SMOH):	975 hrs
TBO of Lycoming IO-360-C1C:	2000 hrs
Prop Time Since Overhaul (SPOH):	975 hrs
Gross Weight:	2650 lbs
Empty Weight:	1627 lbs
Useful Load:	1023 lbs
Next Annual Insp Due:	May 2027
Transponder Cert (91.413) Due:	Feb 2028
Pitot/Static Cert (91.411) Due:	Feb 2028

Hours are an approximation and will change as aircraft is flown.

Aircraft Summary

Aircraft is hangared at Mesa Falcon Field (KFFZ), 15 NM ENE of Sky Harbor Int'l Airport (KPHX), Phoenix, Arizona
Good looking Arrow II, always hangared, no observed evidence of hail or hangar rash damage
No damage history
Mid time engine w/ 975 hrs SMOH in good condition, flown regularly
3 years of regular oil analysis history shows good engine health
Latest engine compressions: 79/78/74/79 over 80
Garmin primary instruments and radios, recent refresh
Vacuum system eliminated (modernized and weight reduction)
Installed Piper Kit #765-303 Backup Landing Gear Extender - Removal
AD 2020-26-16 Wing Spar - c/w; due at 5000 factored hrs; current factored hrs is only ~230 hrs.

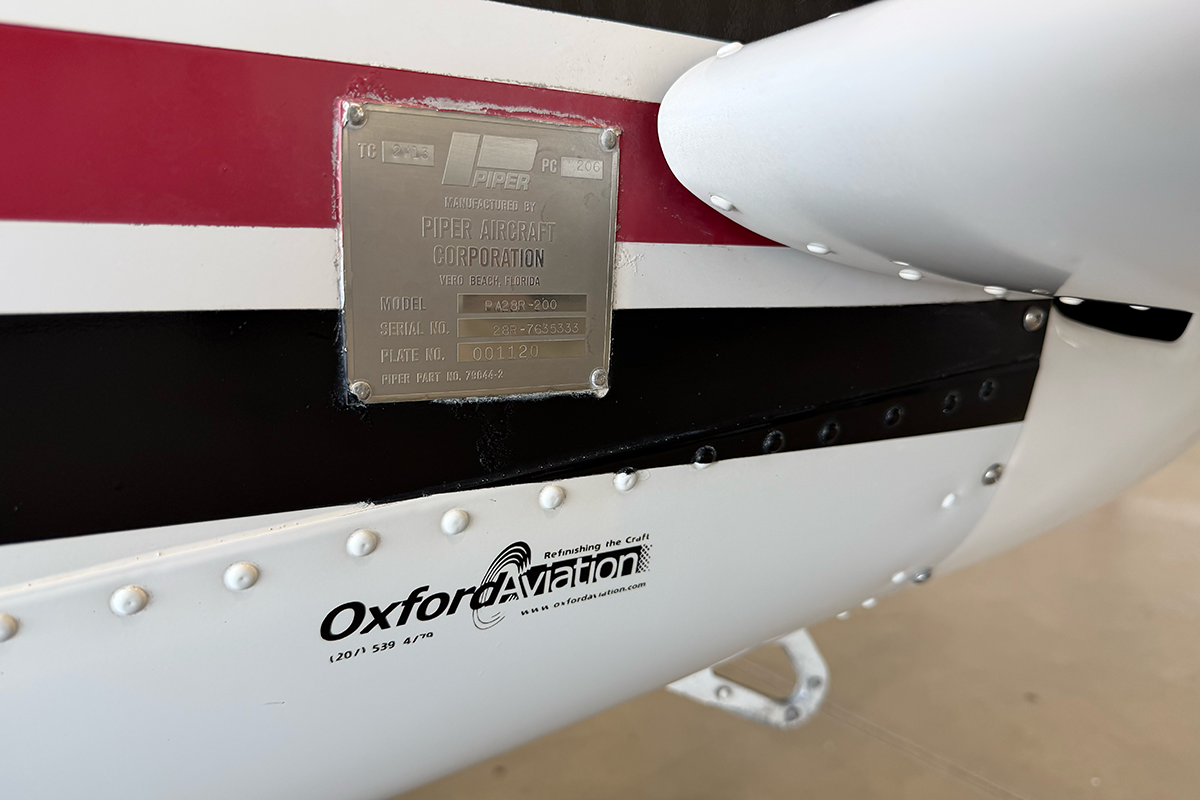

July 2003 - repaint by Oxford Aviation, a premier paint shop in the Northeast; paint has held up well despite the age
April 2010 - extensive interior refresh: new leather upholstery, headliner, insulation, and carpet; new foam in seats; plastics replaced or repaired; new door seals; R&R yokes; panel repainted/refreshed, all new placards. New seatbelts.
Clean and complete logbooks; deep review found no noteworthy issues
All ADs complied with and documented at last annual inspection
All logbooks are professionally scanned, well organized, and available upon request

Avionics and Equipment

Garmin GNS 430W WAAS GPS Navigator and NAV/COMM radio interfaced to dual G5s
Garmin G5 ADI (attitude direction indicator)
Garmin G5 HSI (horiz situation indicator)
Garmin GI 106A CDI
Garmin GNC 215 NAV/COMM radio interfaced to GI 106A
Garmin GTX 345 transponder with integral ADS-B In and Out
Garmin Flight Stream 210 wireless gateway (Bluetooth) bridge to EFBs (ForeFlight, etc.)
Garmin GMU 11 Digital 3-Axis Magnetometer (Stabilized Heading Data)
Garmin GAD 29D ARINC 429 Avionics Interface Adapter
Garmin GAD 13 Digital Air Data Interface with GTP 59 OAT Probe
Garmin GMA 350c audio panel with 4-place stereo intercom
Piper Autocontrol IIIB autopilot (INOP)
Electric trim (INOP)
Davtron M800 Chronometer
Davtron M303 OAT/voltage display
ACK E04 ELT interfaced to GNS 430W

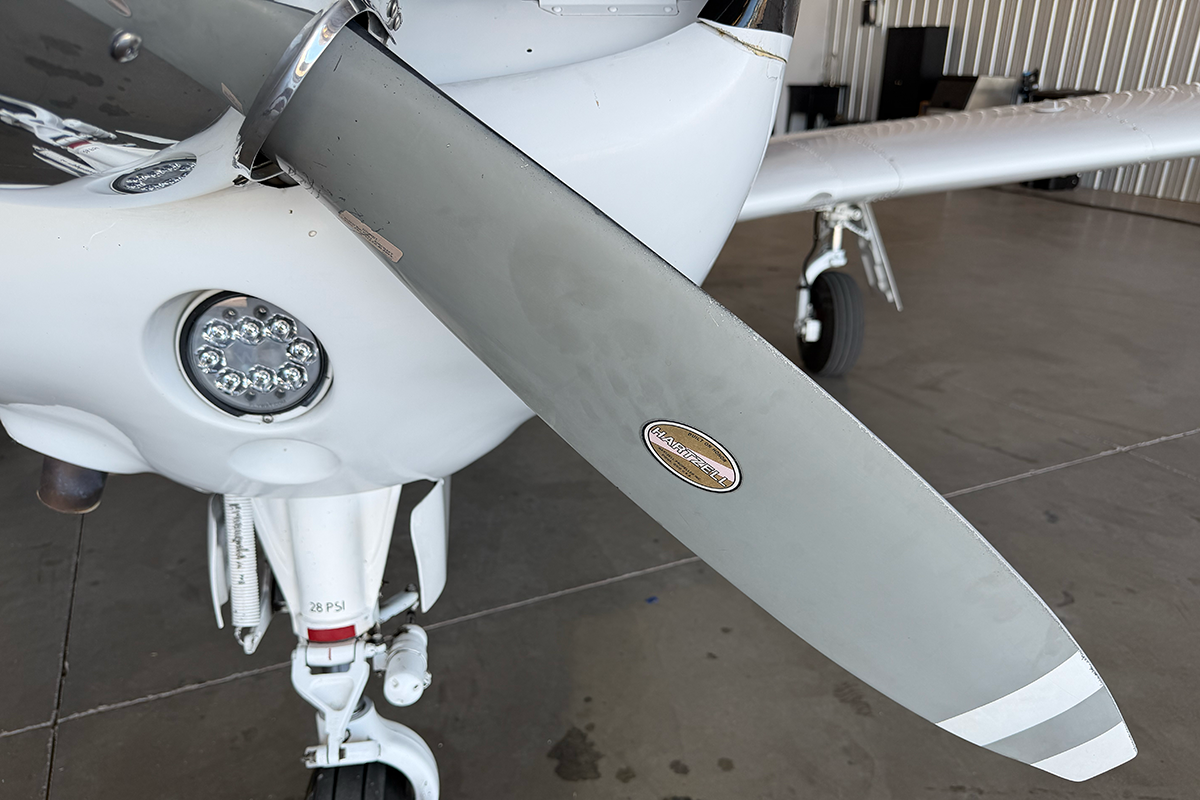

Hartzell 2-blade aluminum prop
Whelen Orion 650 LED premium nav lights
Whelen LED landing light, taxi light, tail light, anti-collision light assembly

Facts and figures are provided to the best of broker's knowledge. Buyer is encouraged to confirm this information.

Walkaround Video

Aircraft Evaluation

As the broker, I make a significant effort to represent an aircraft in as much detail as possible. I share with you not only the benefits and features I've discovered, but also the issues or concerns that I found during my extensive intake and deep logbook review process. I present dozens of detailed, high resolution images, and an extensive walkaround video. Please review this material in detail. All logbooks and other important documents are professionally scanned, well organized, and available for your review.

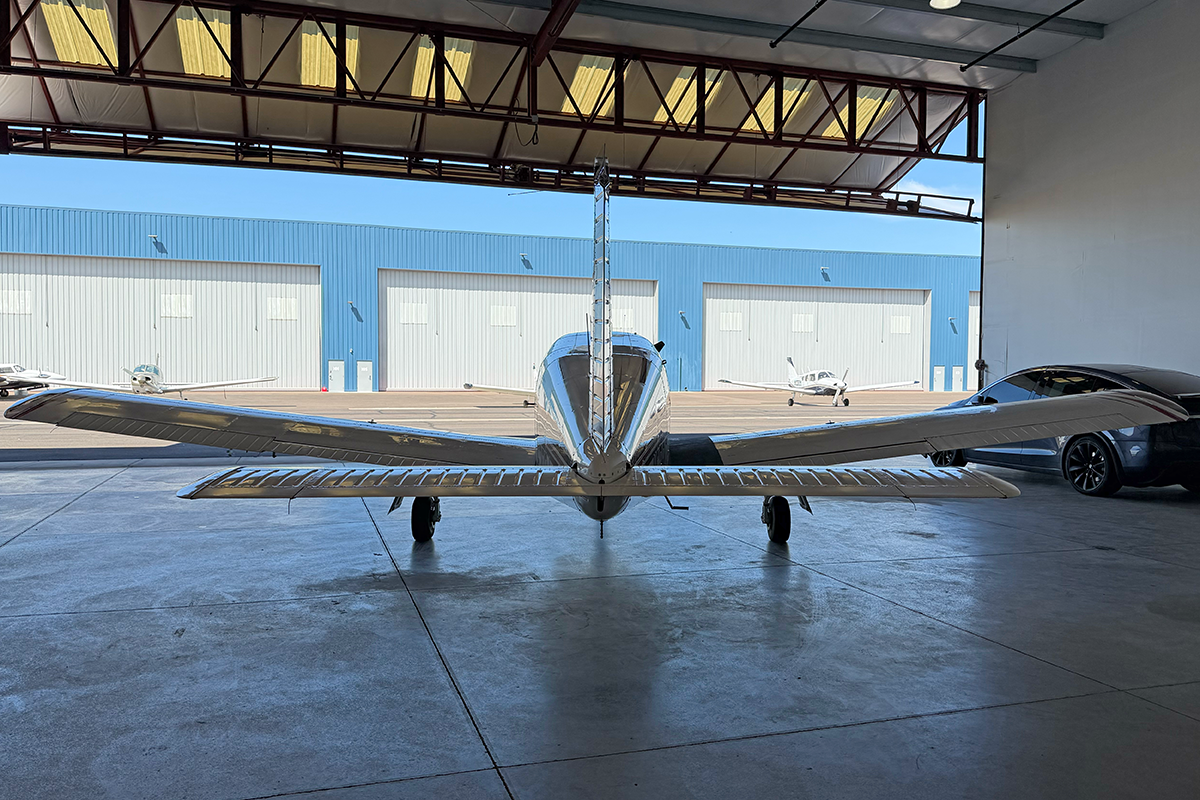

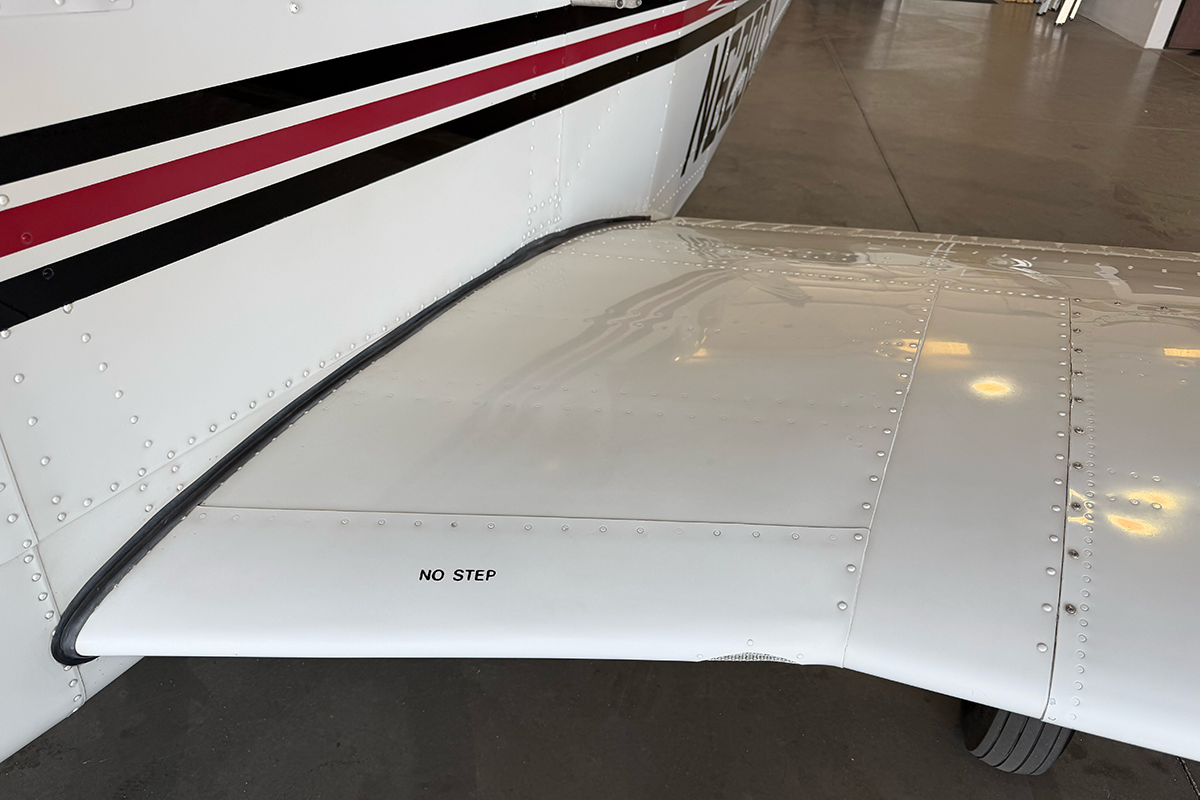

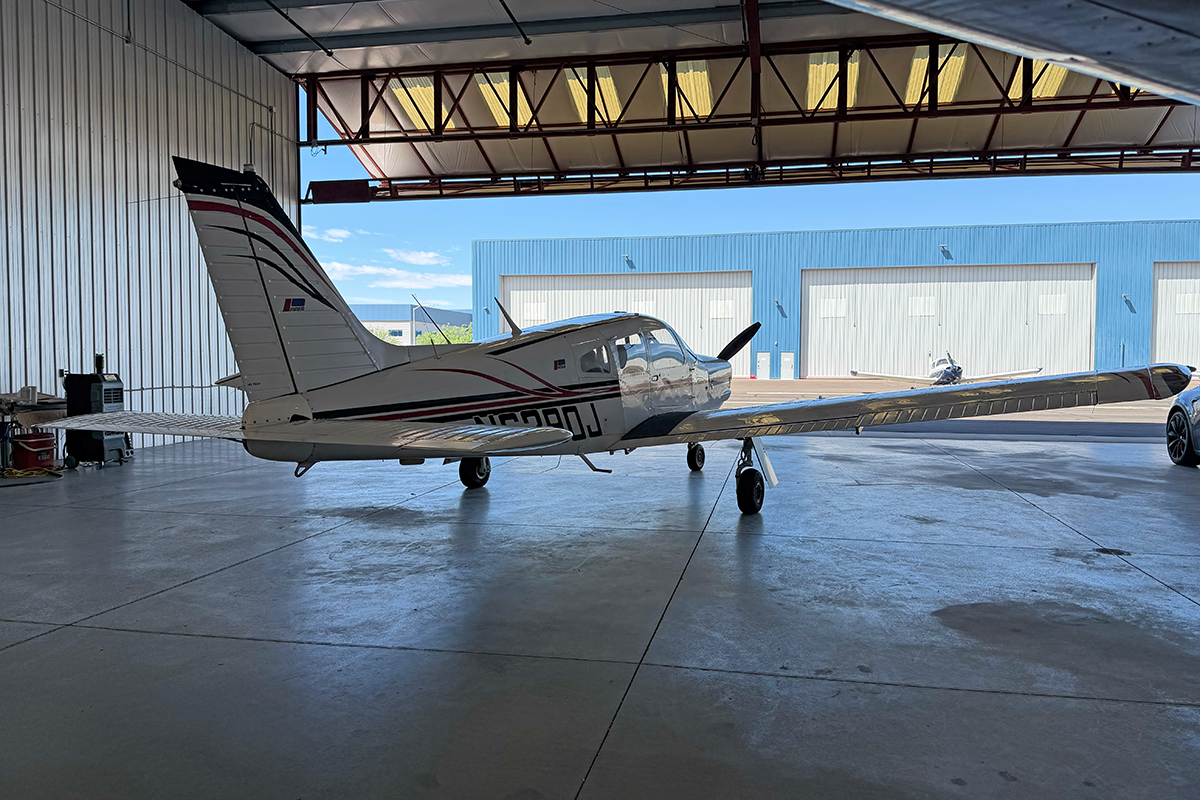

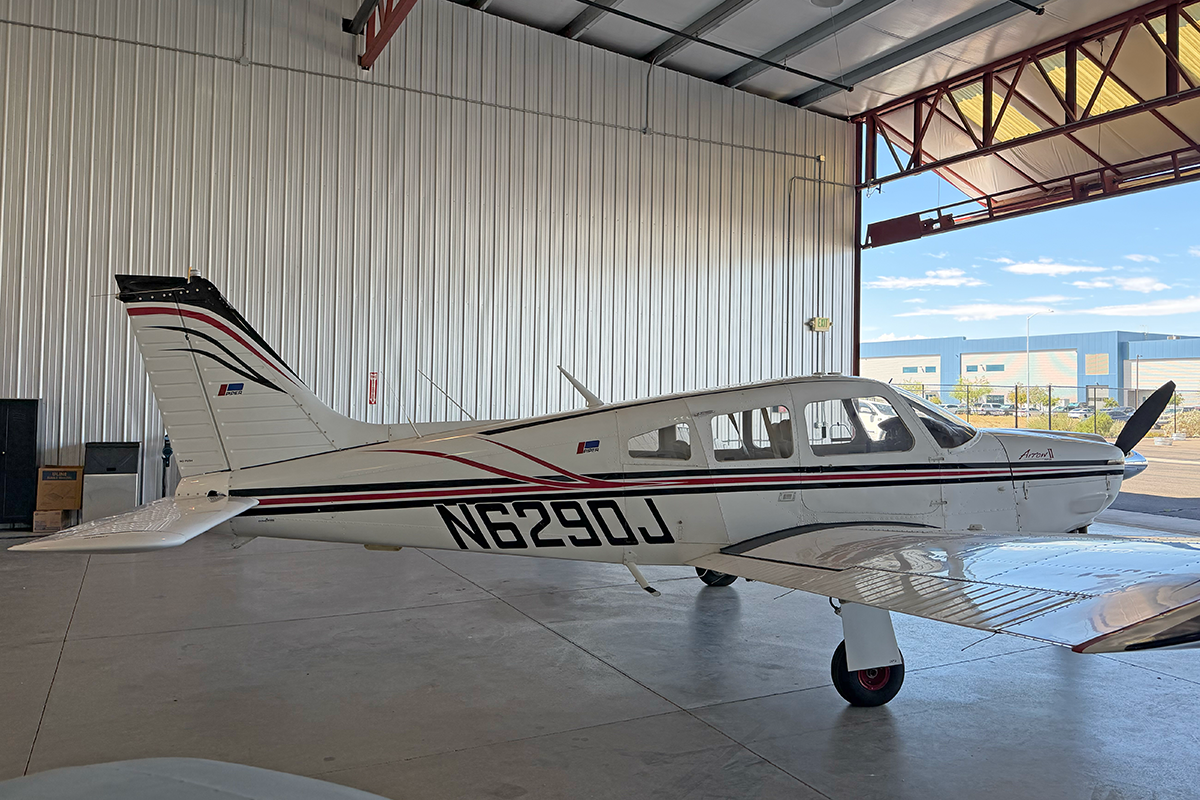

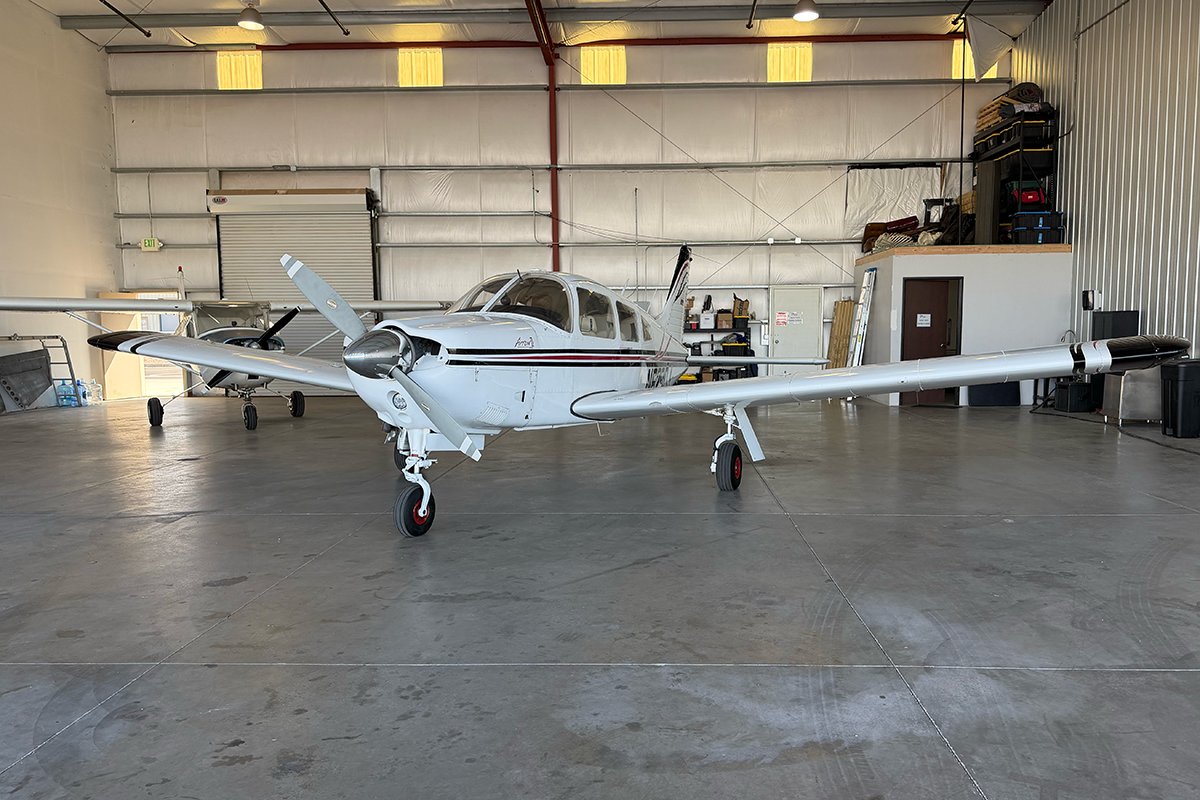

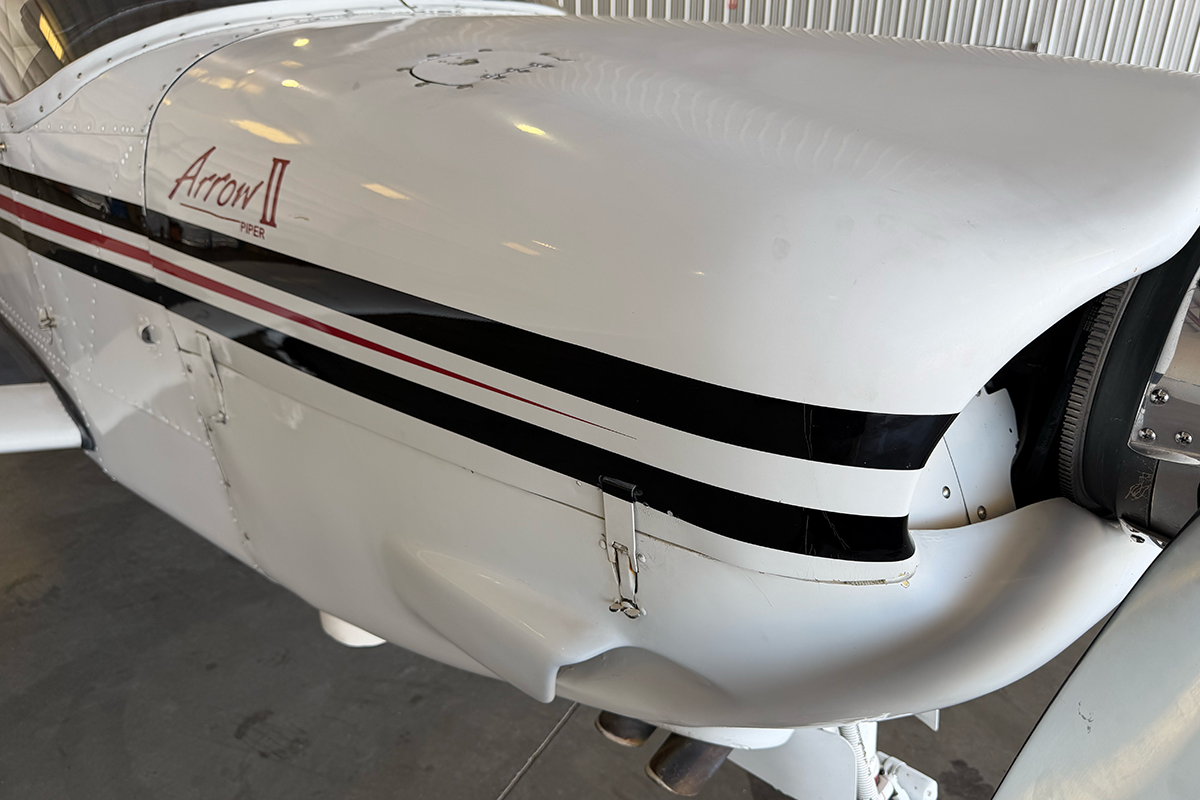

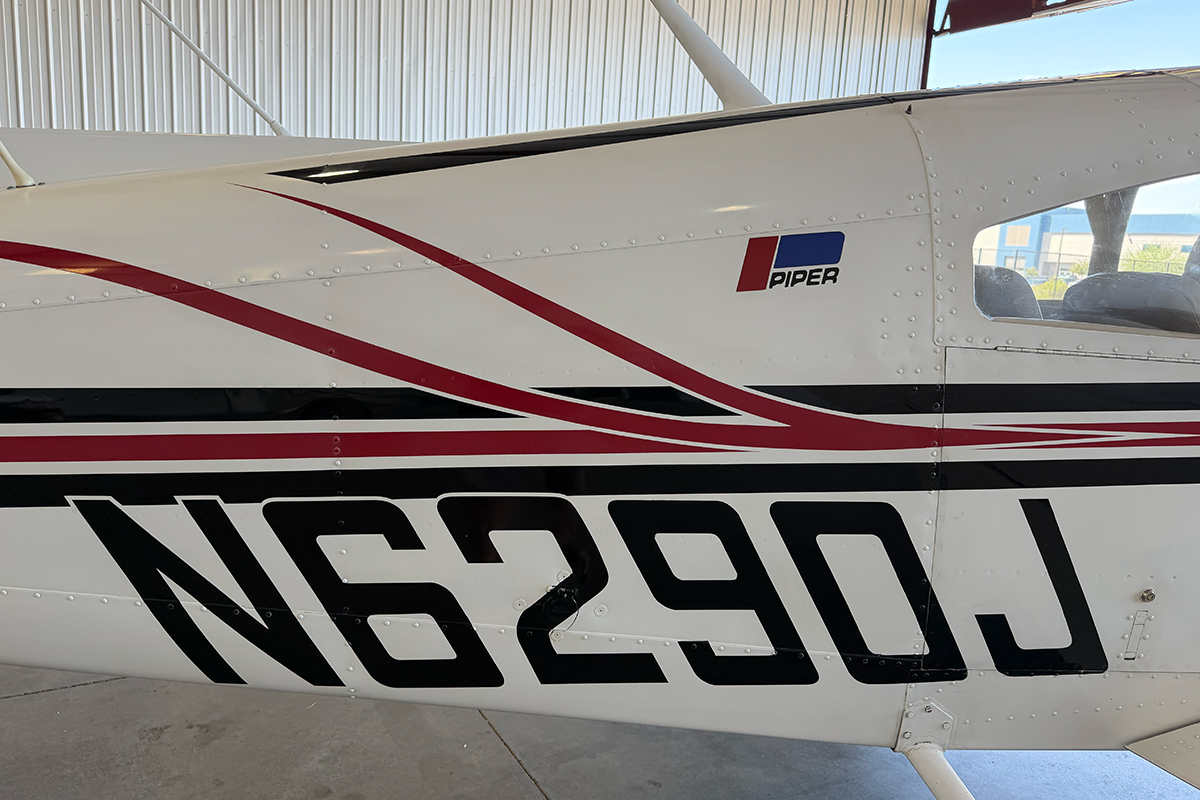

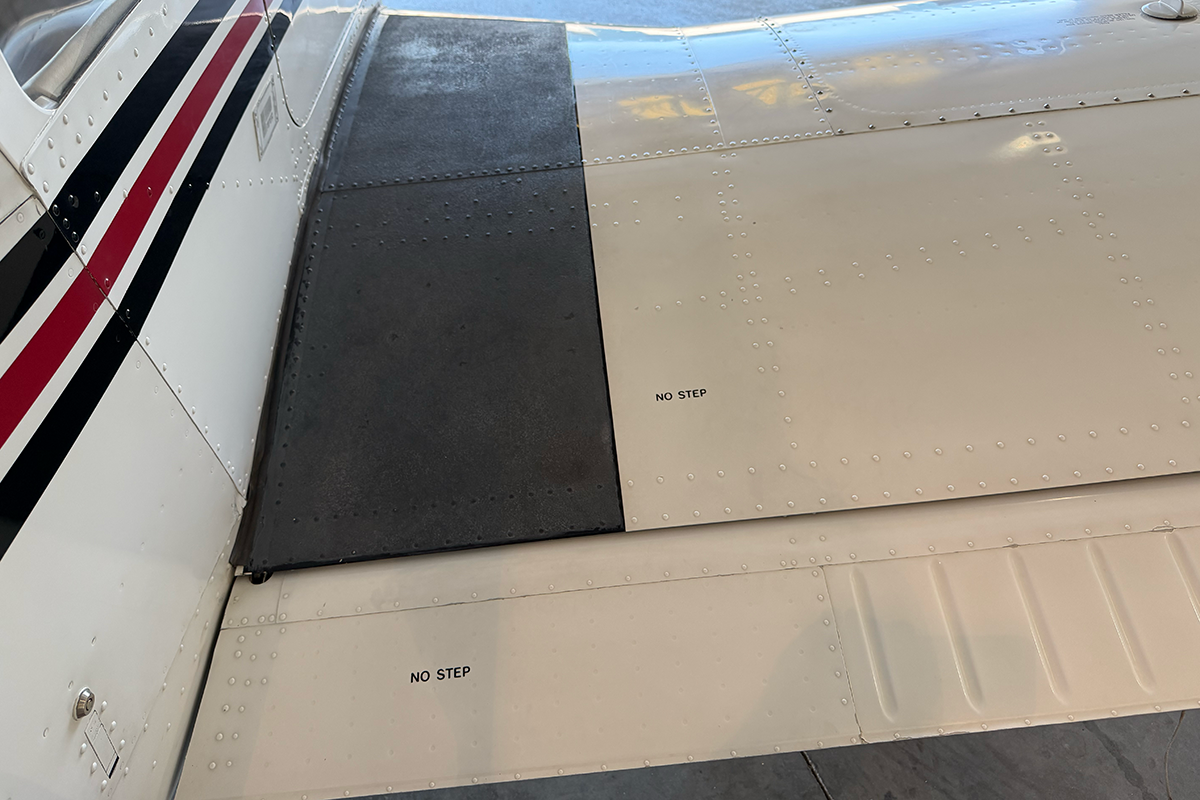

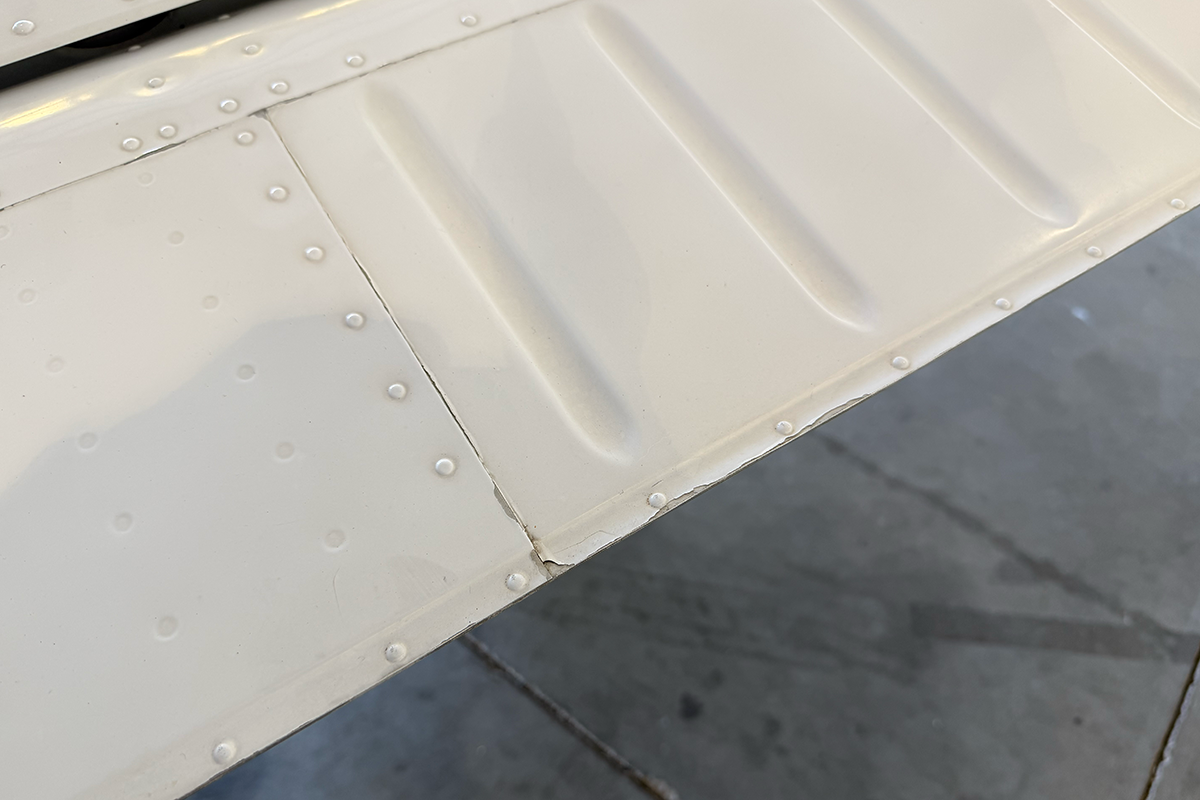

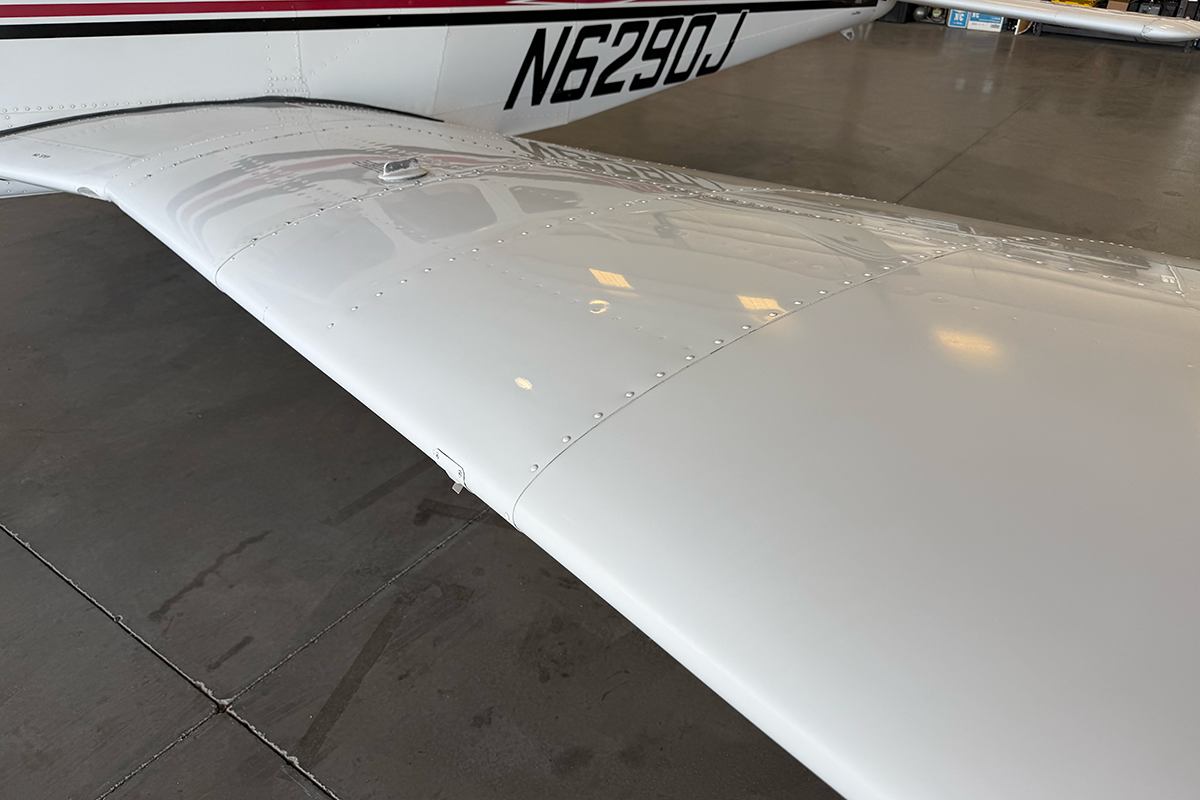

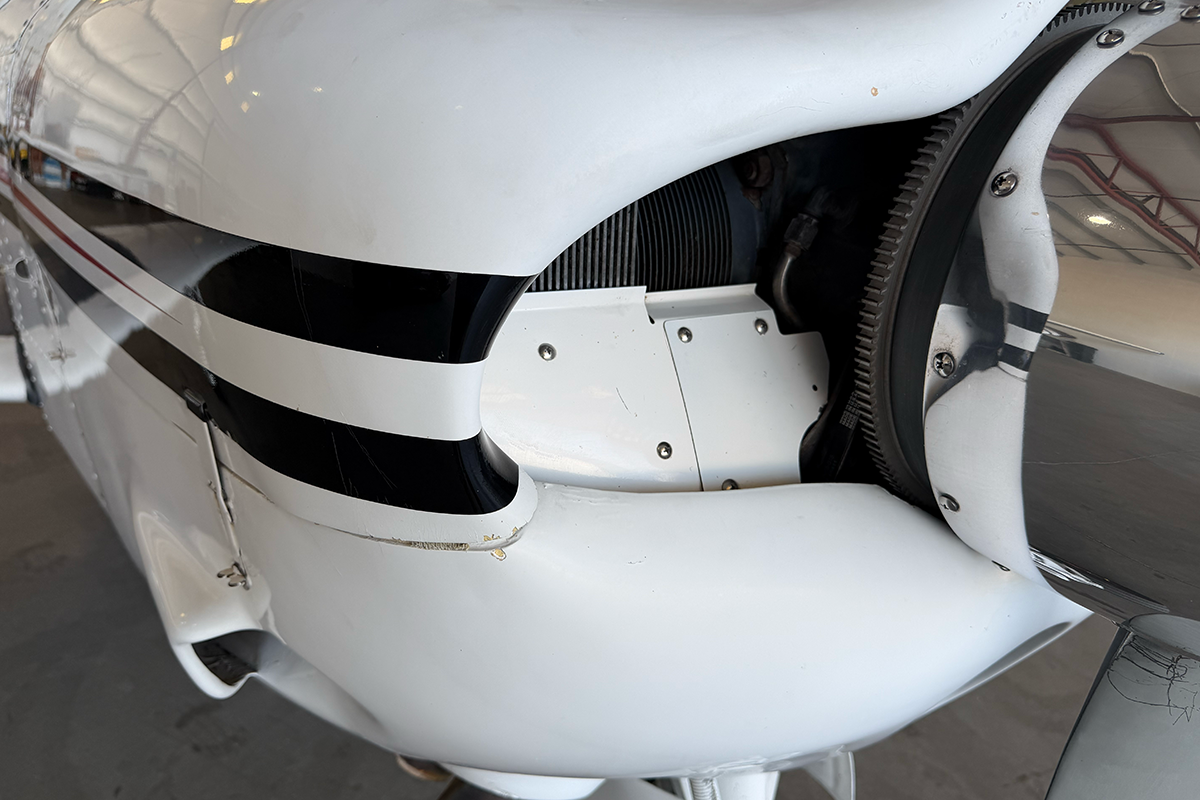

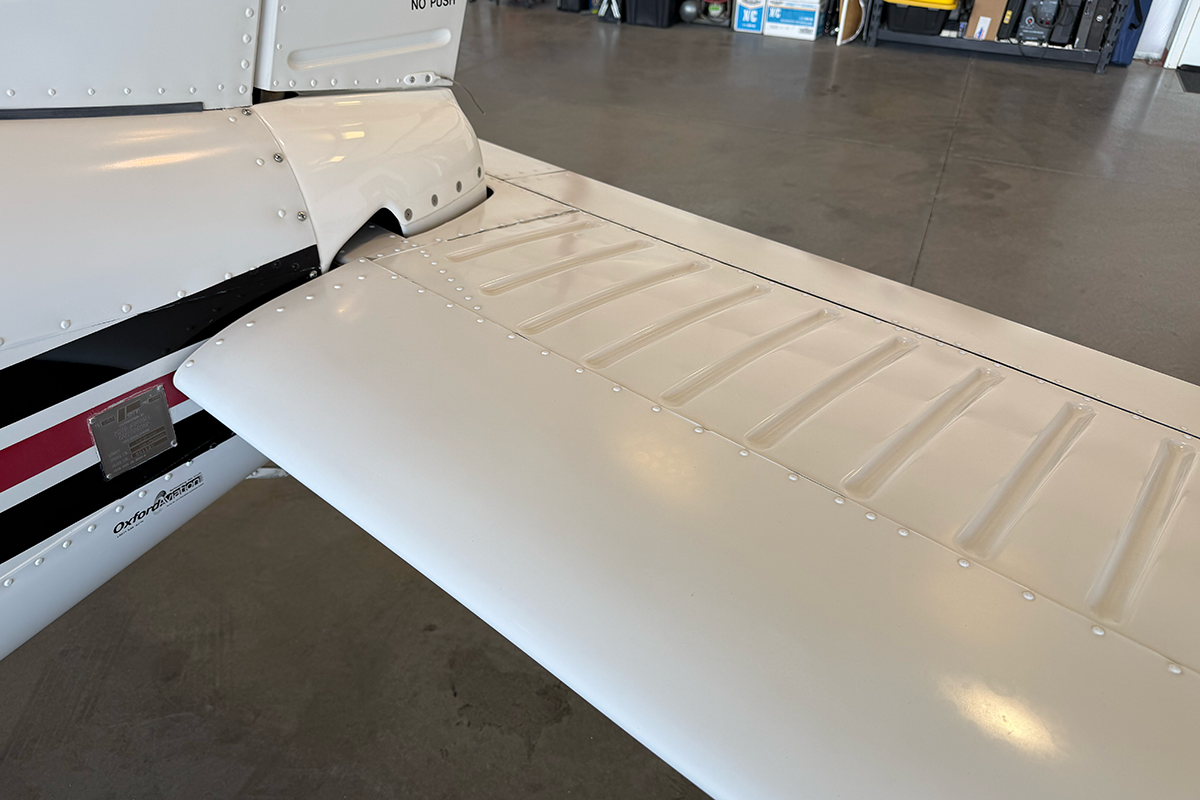

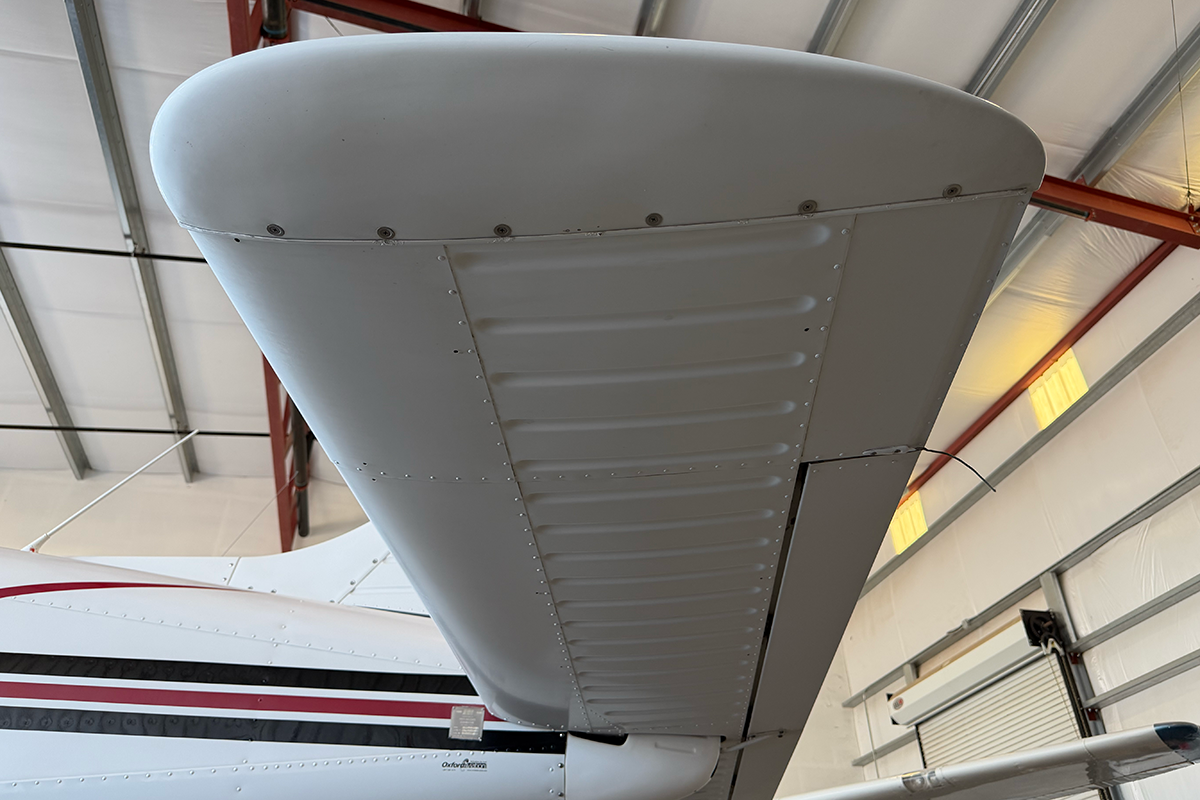

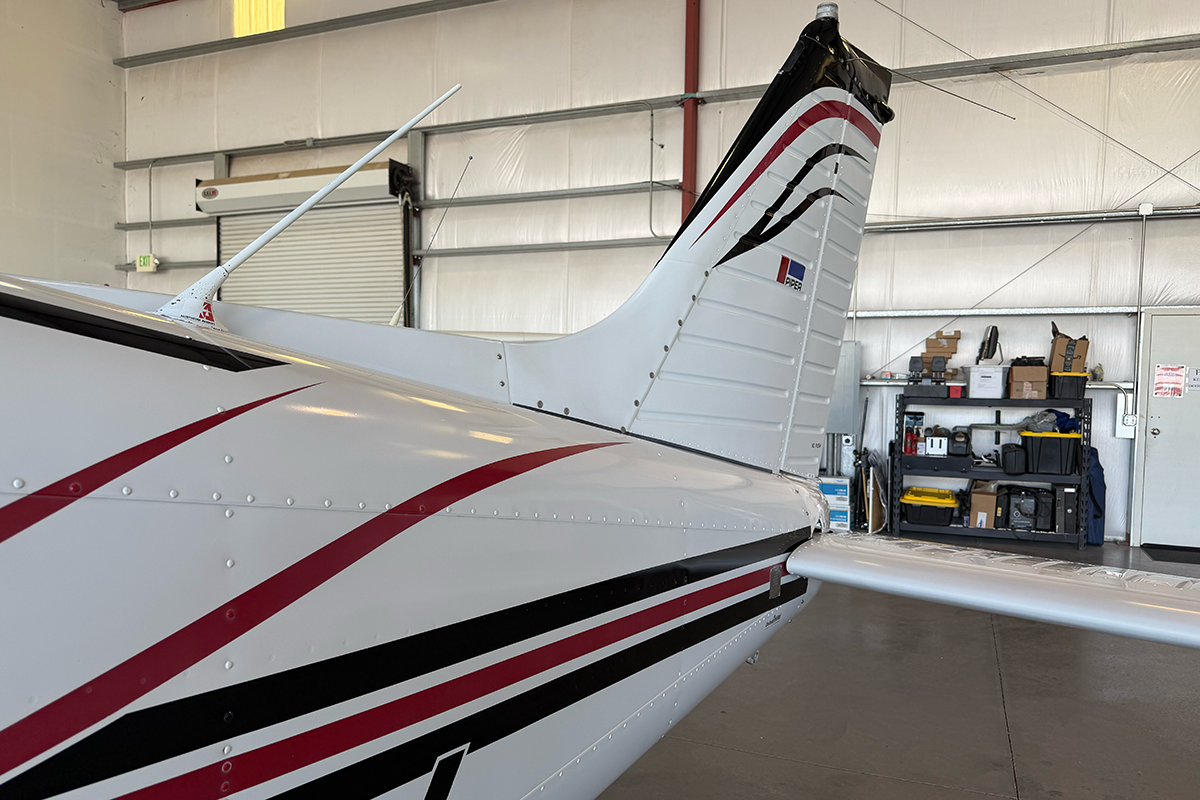

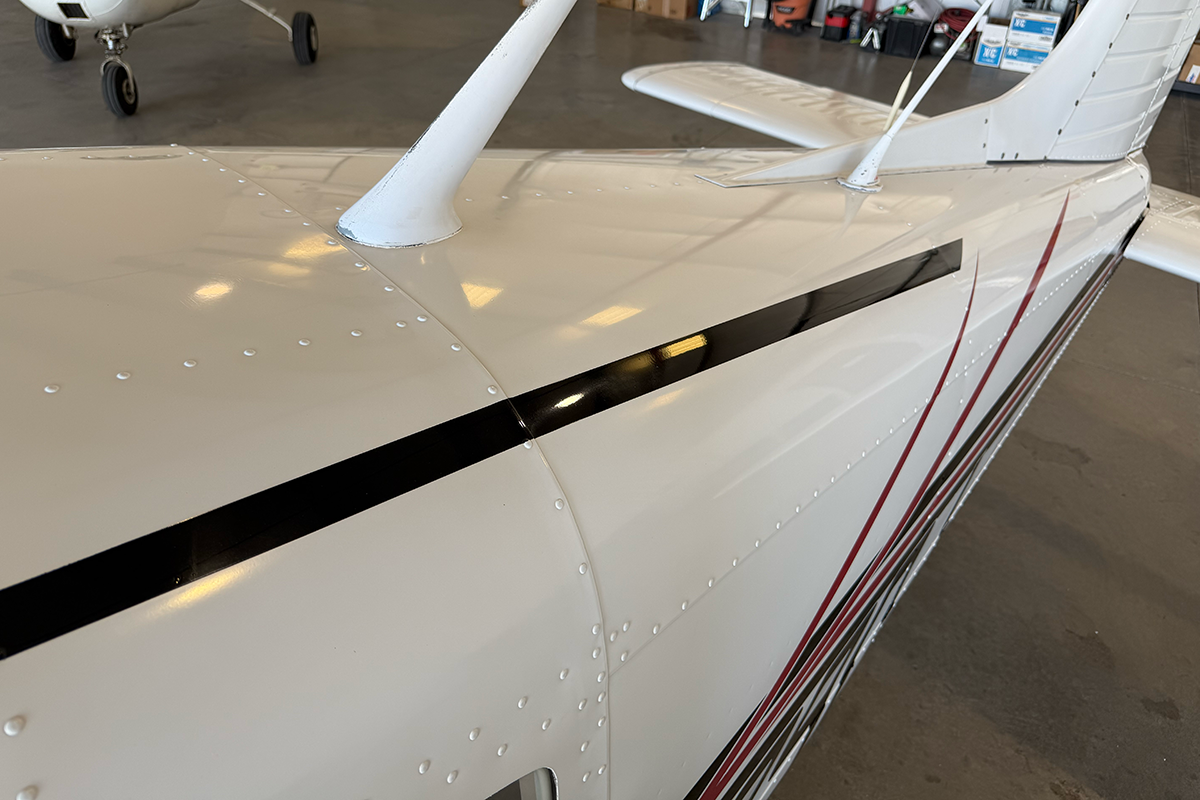

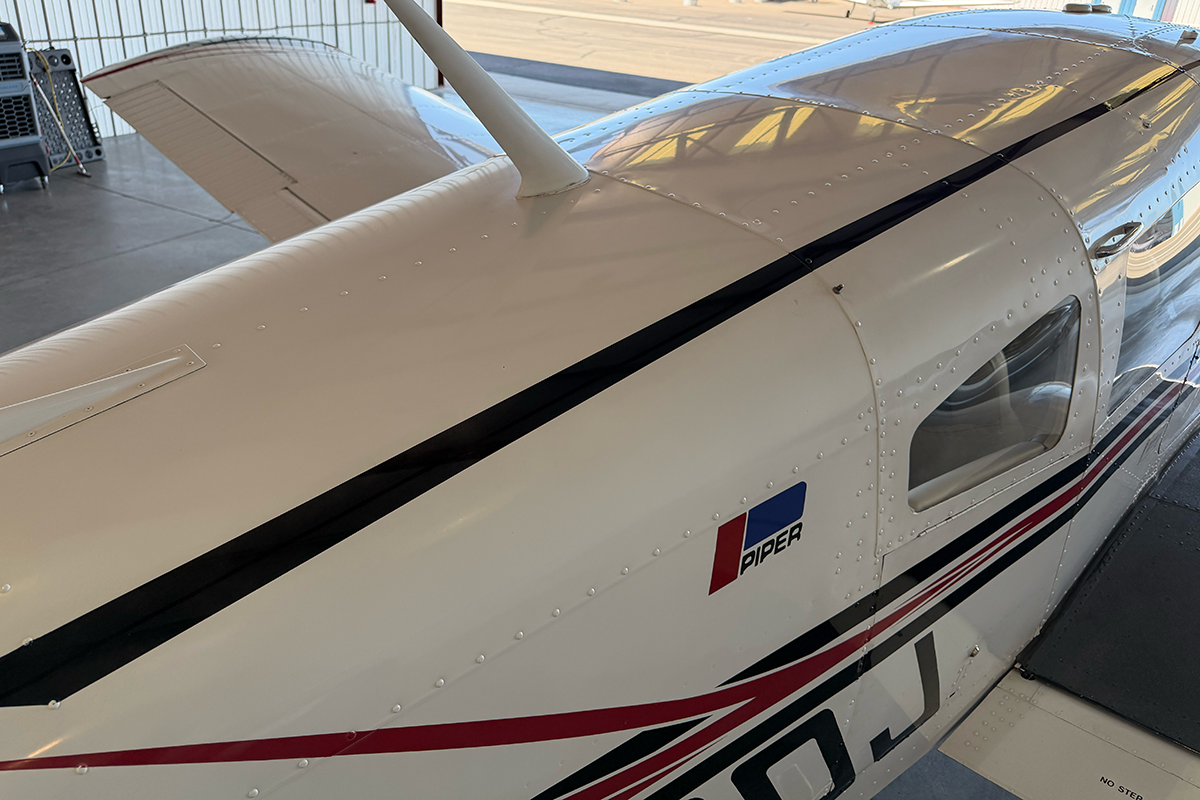

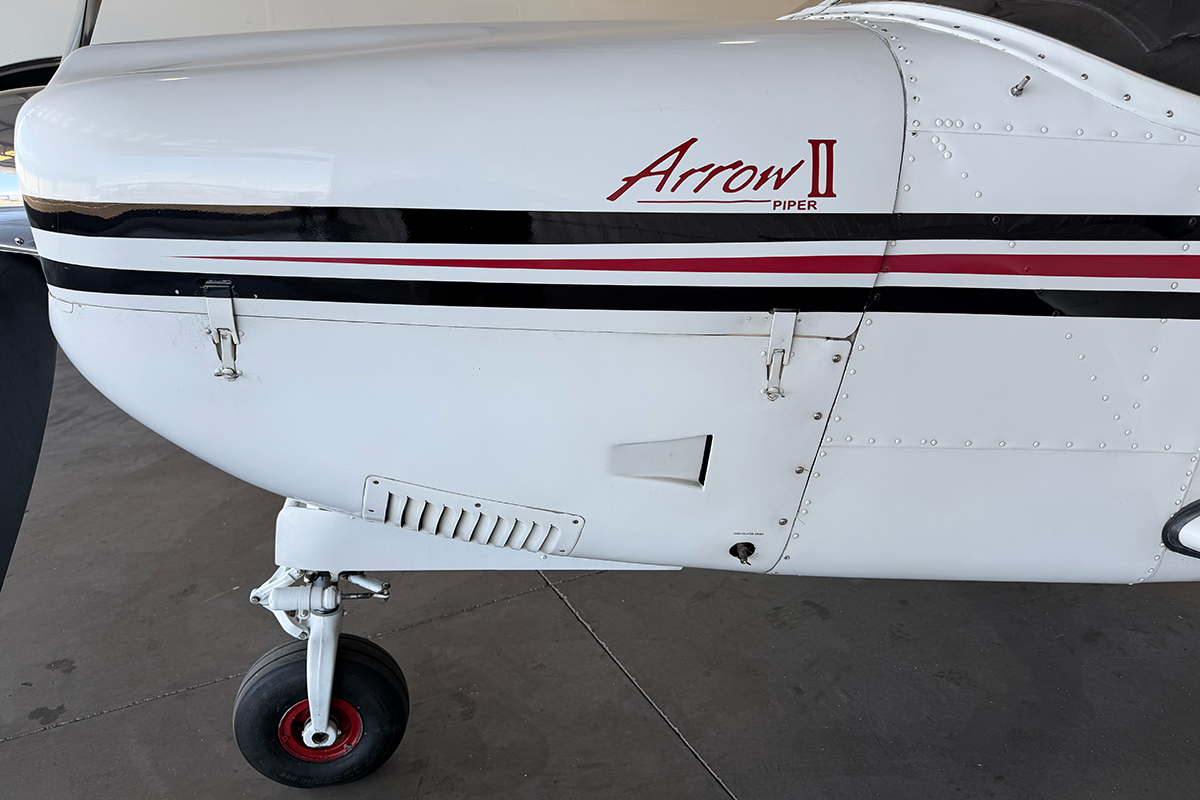

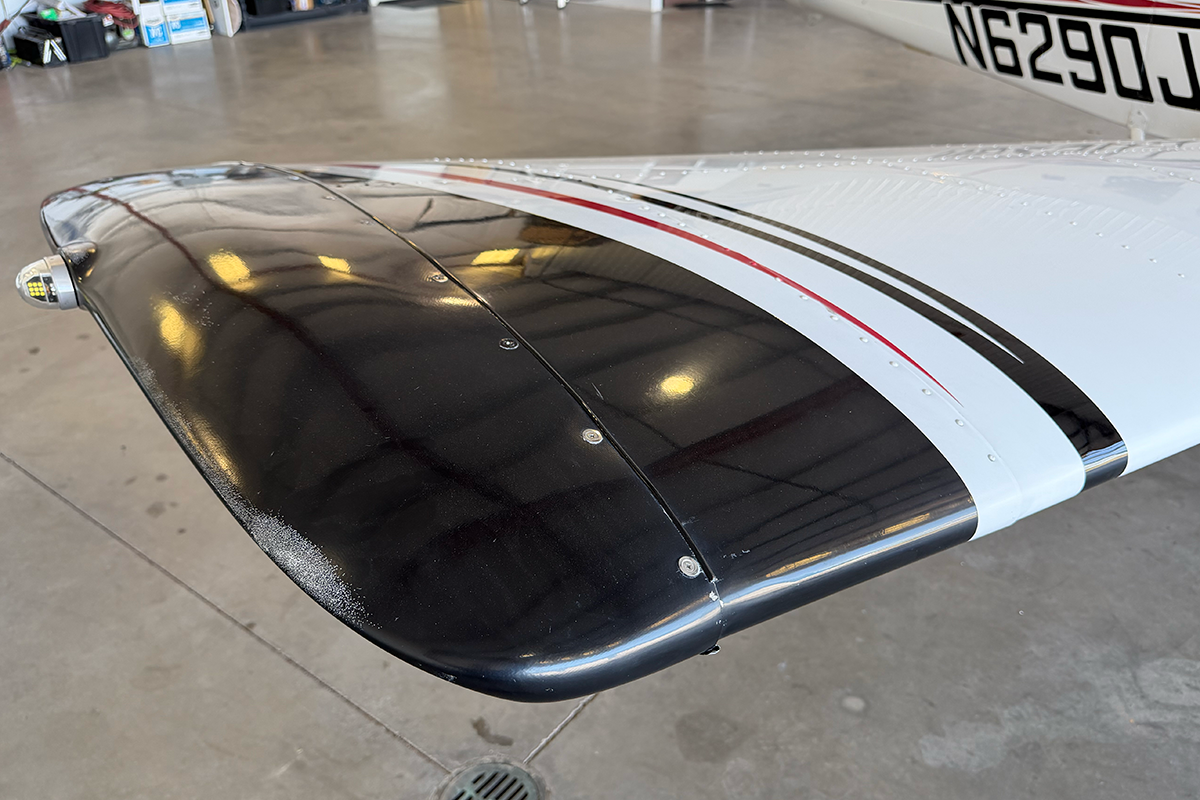

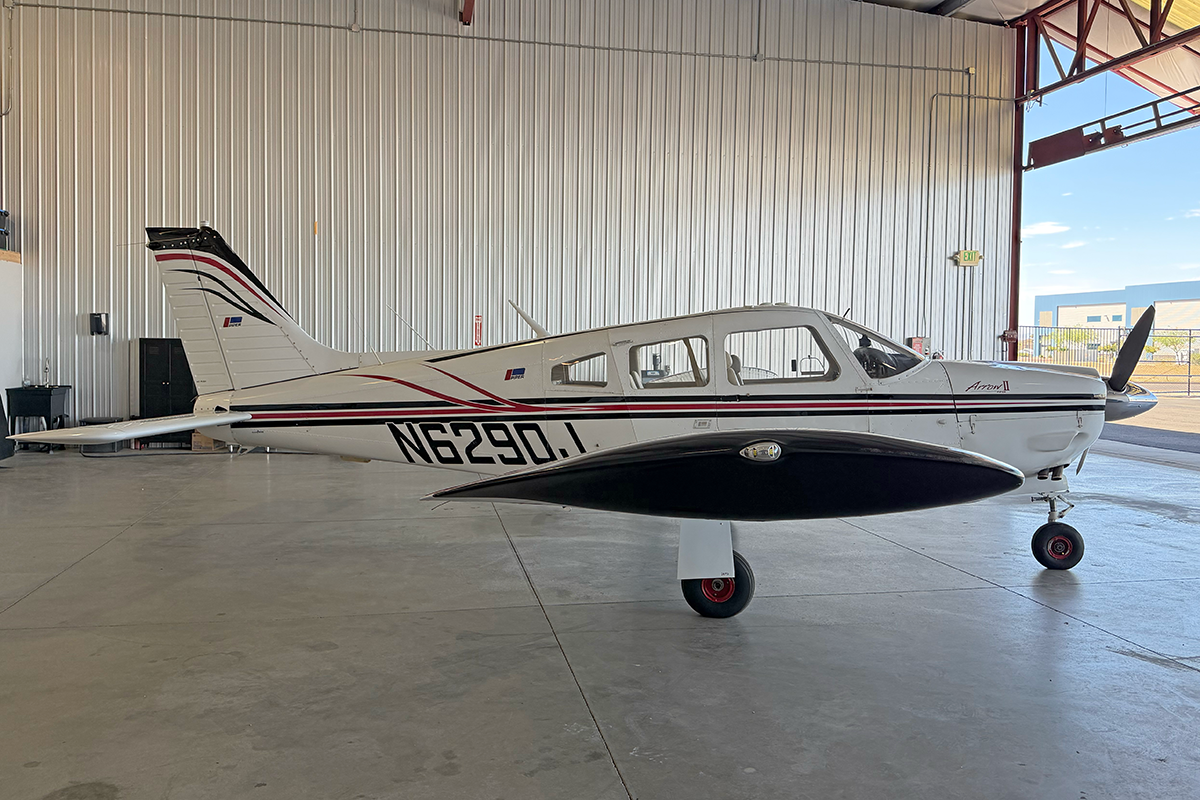

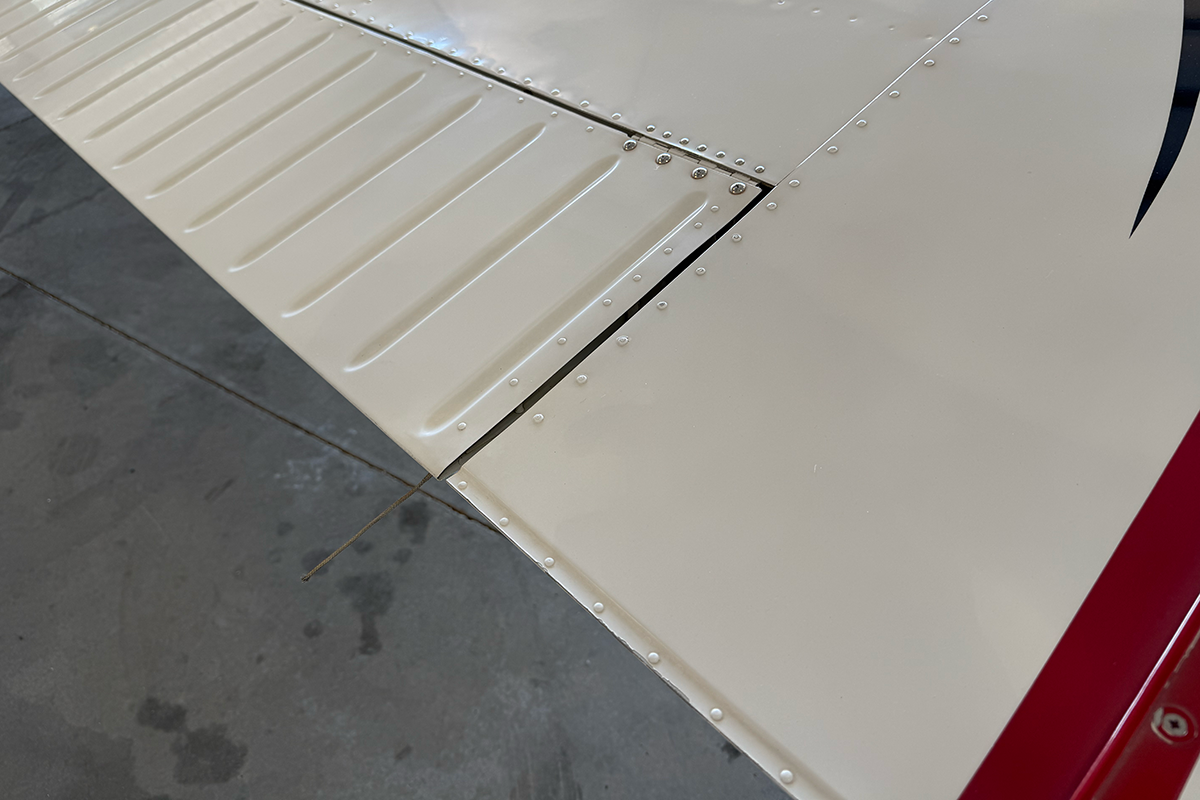

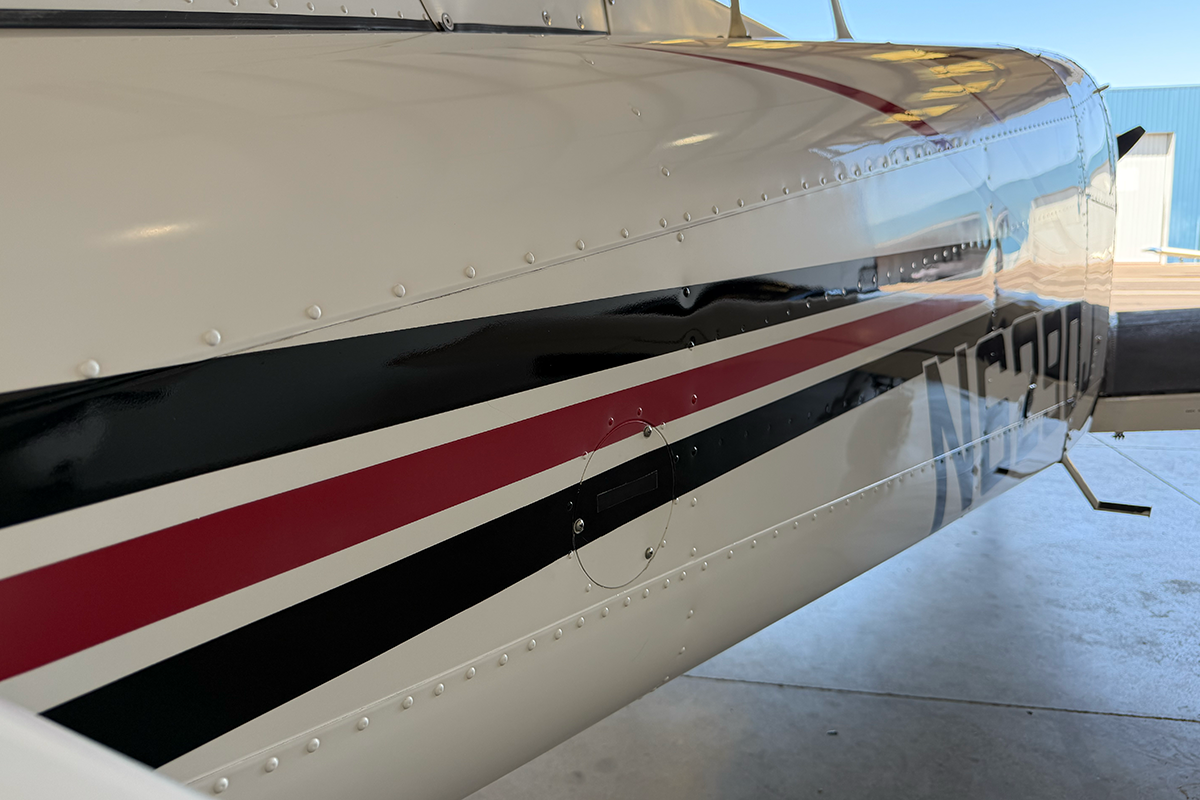

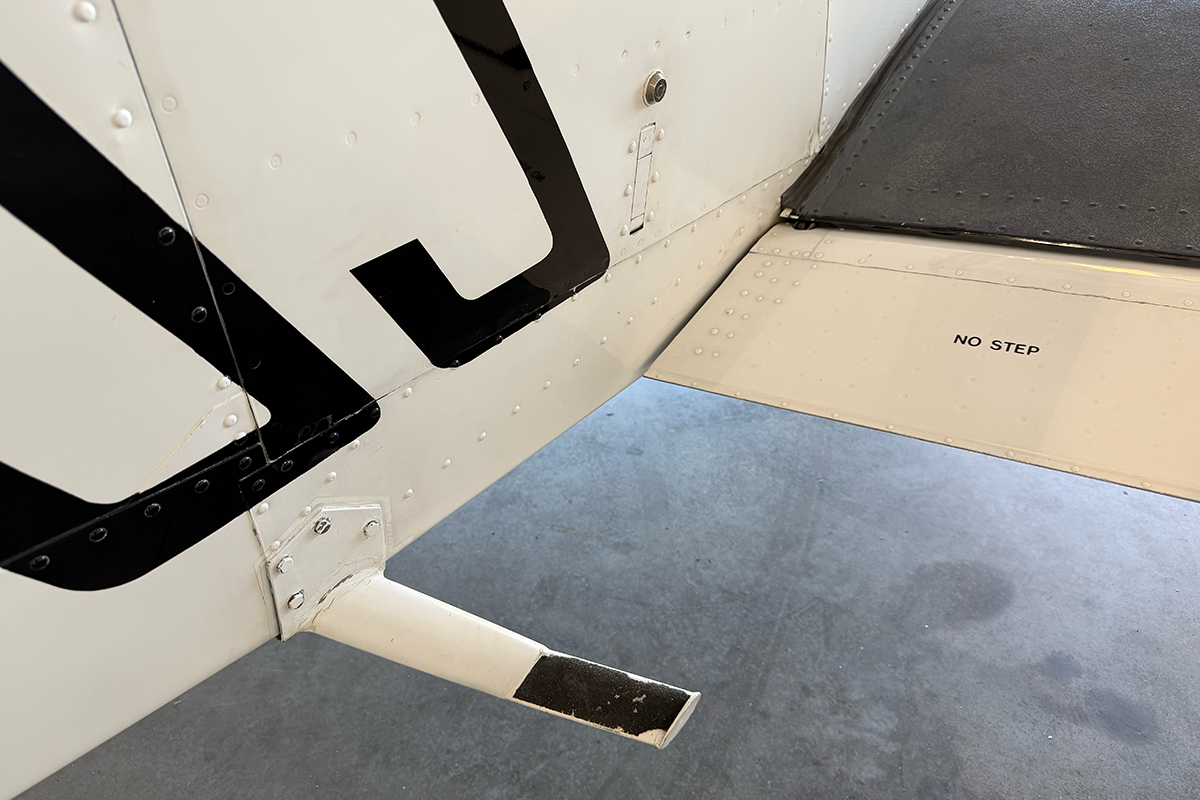

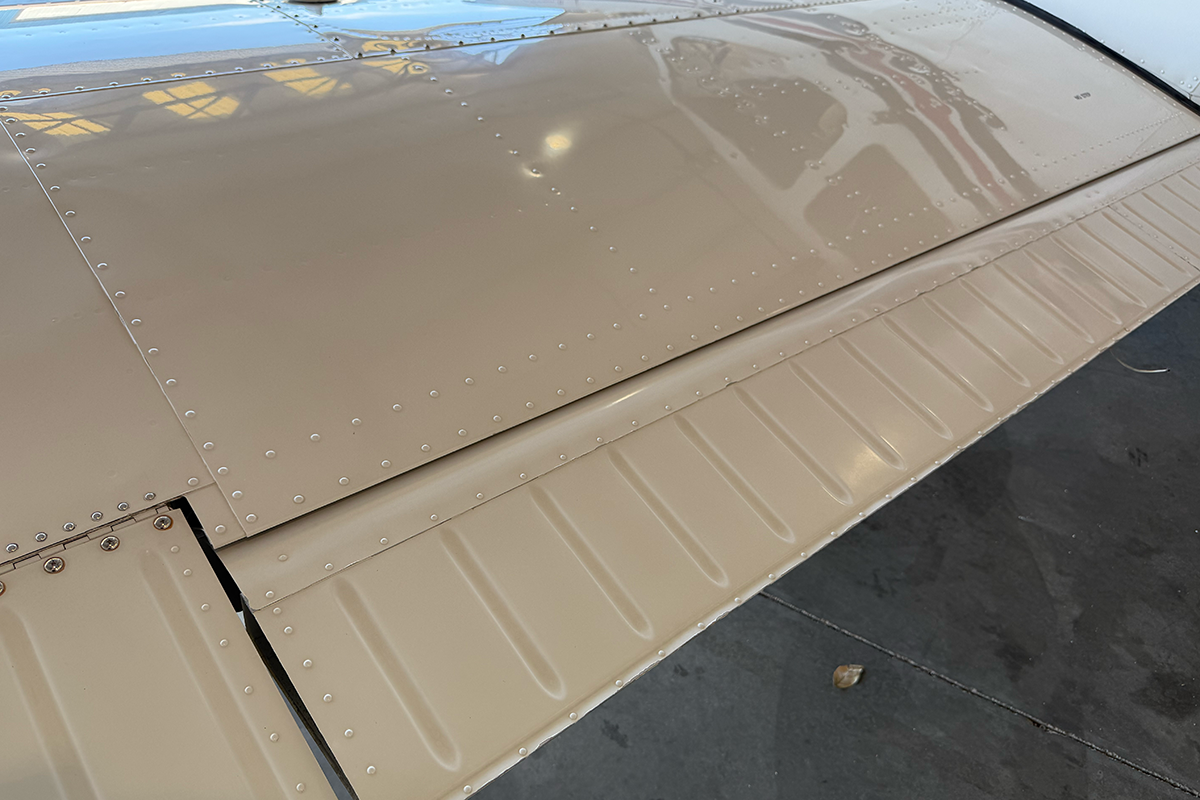

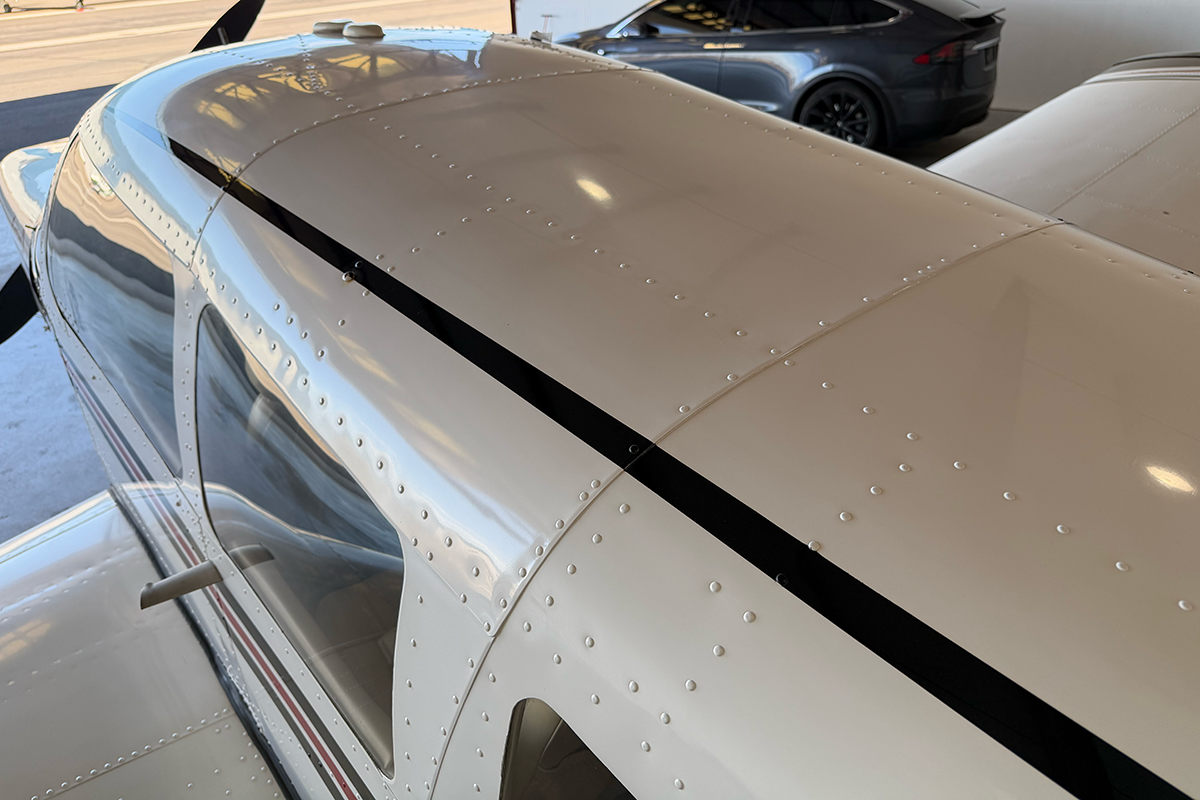

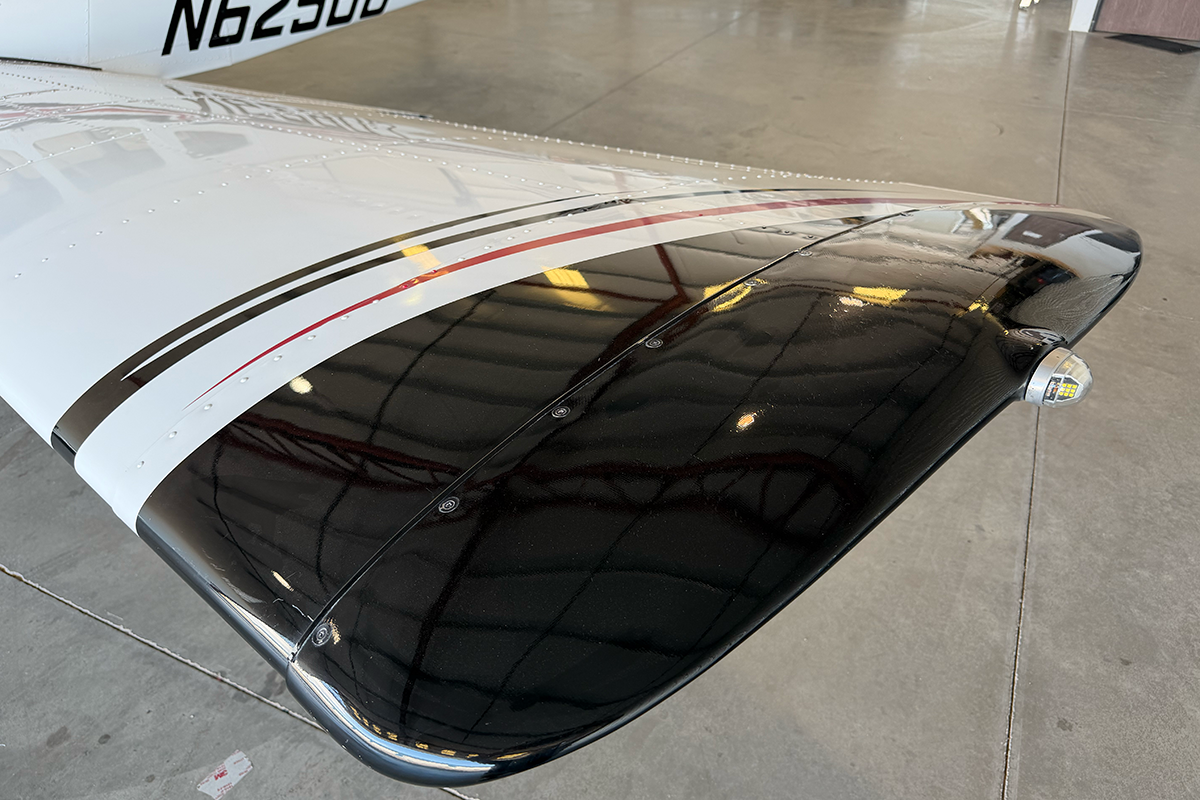

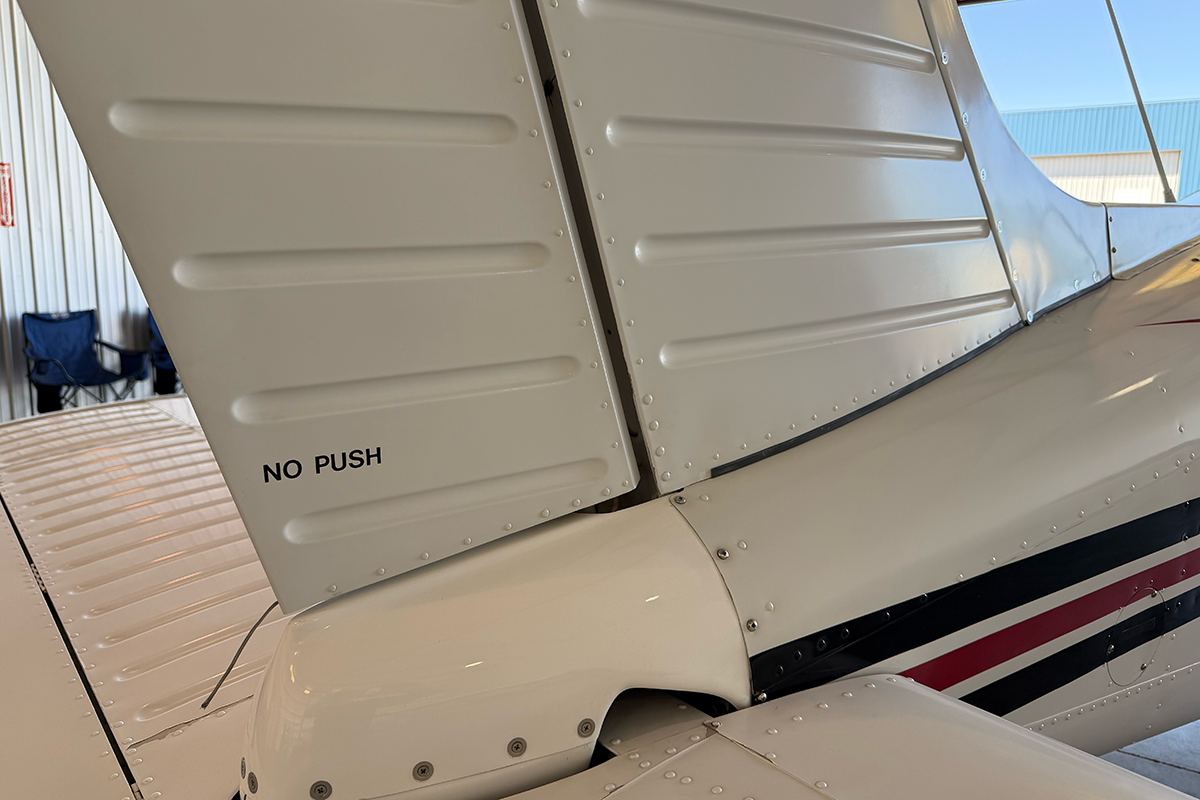

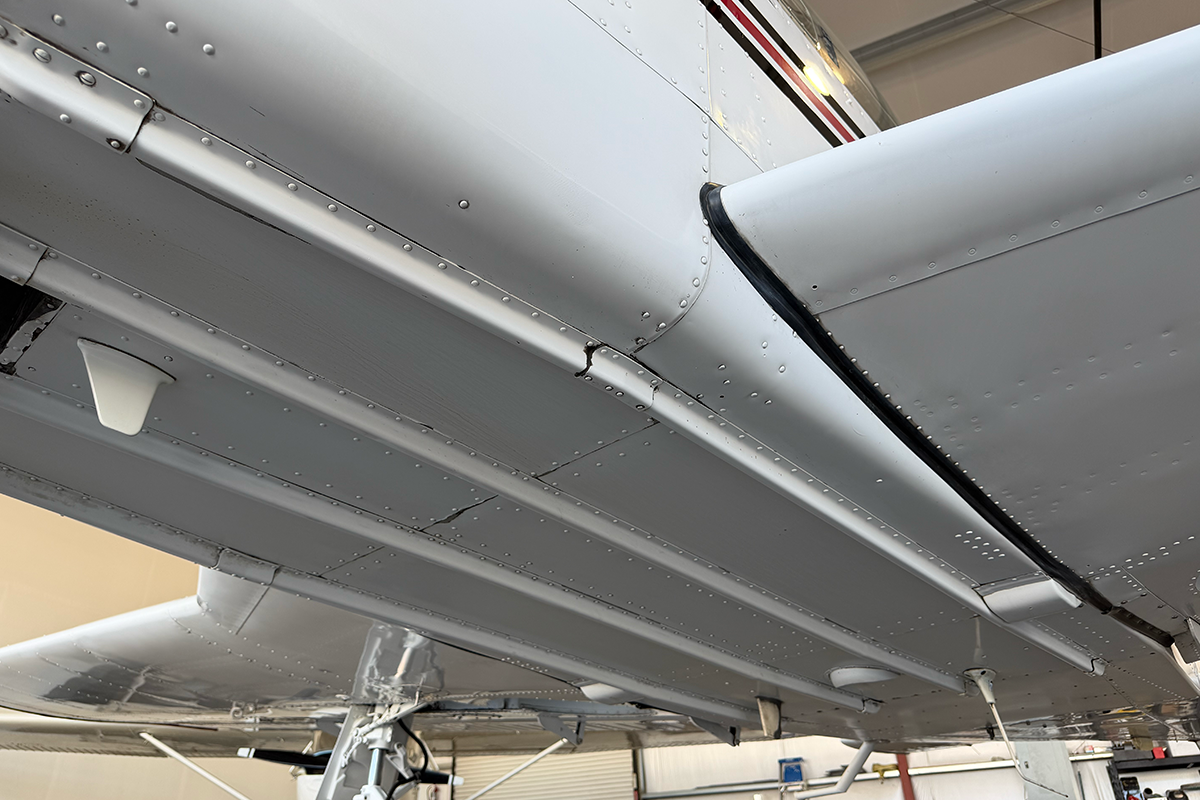

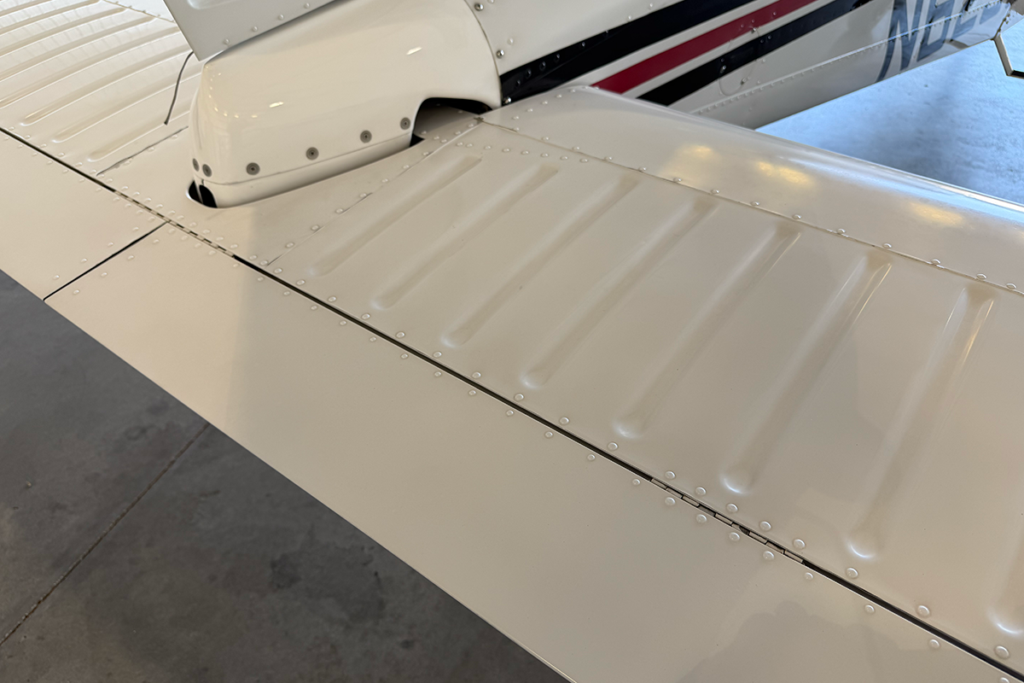

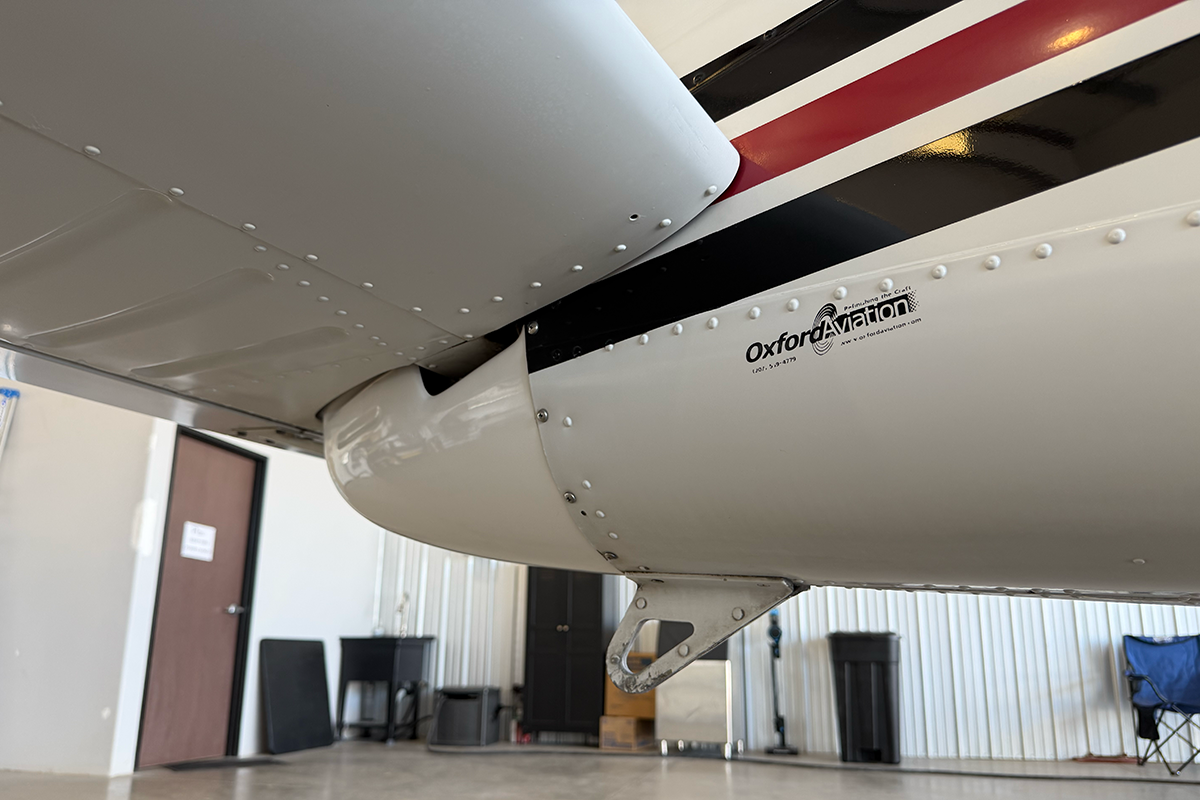

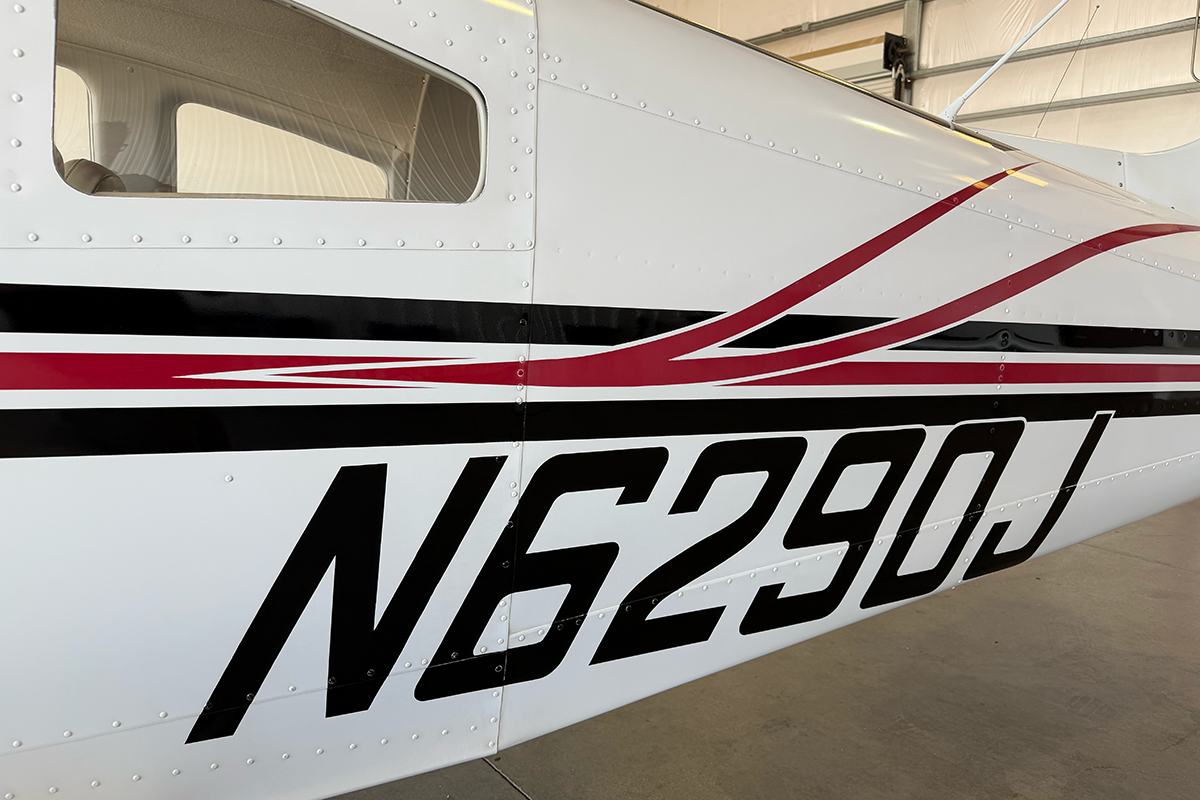

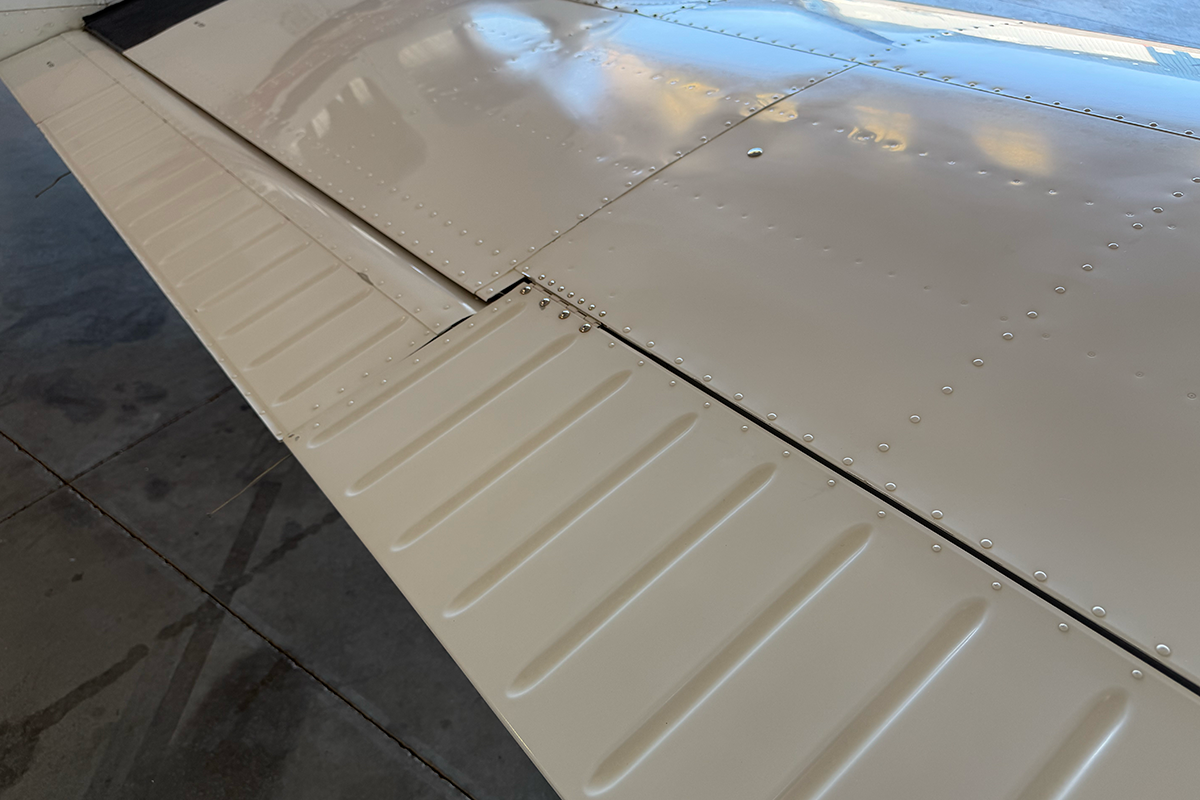

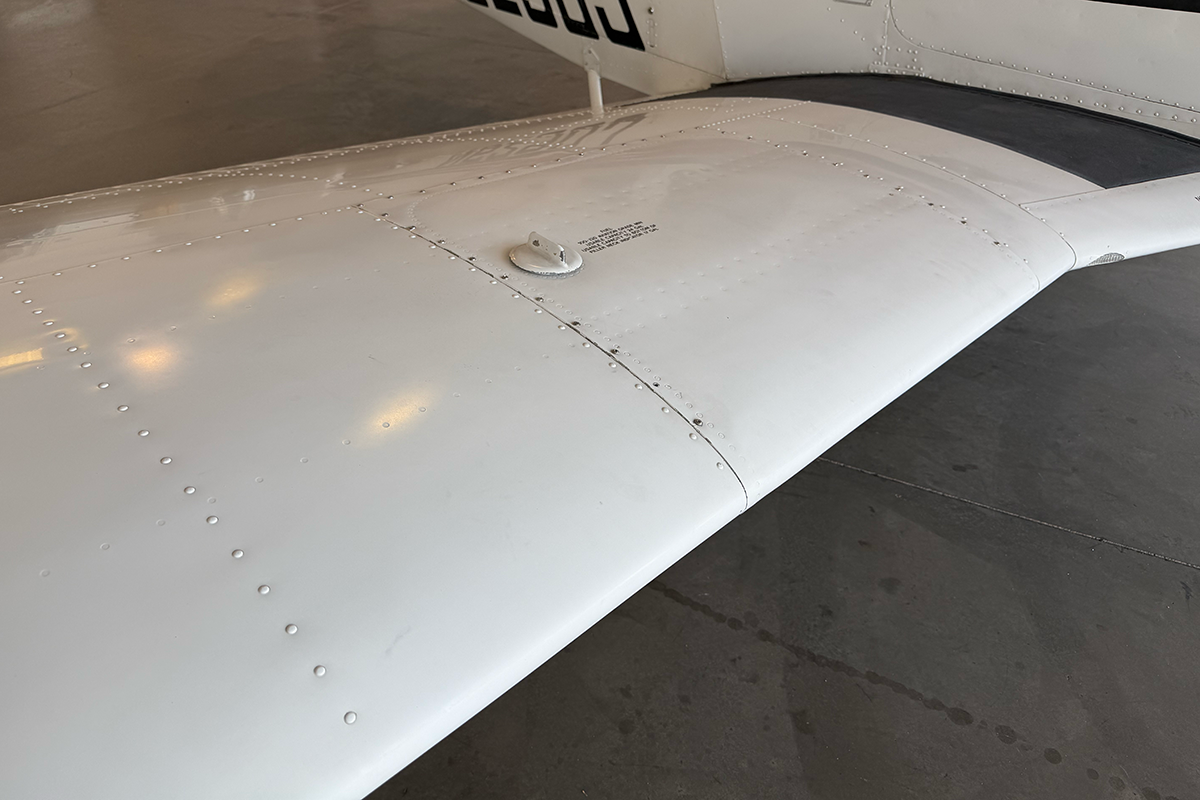

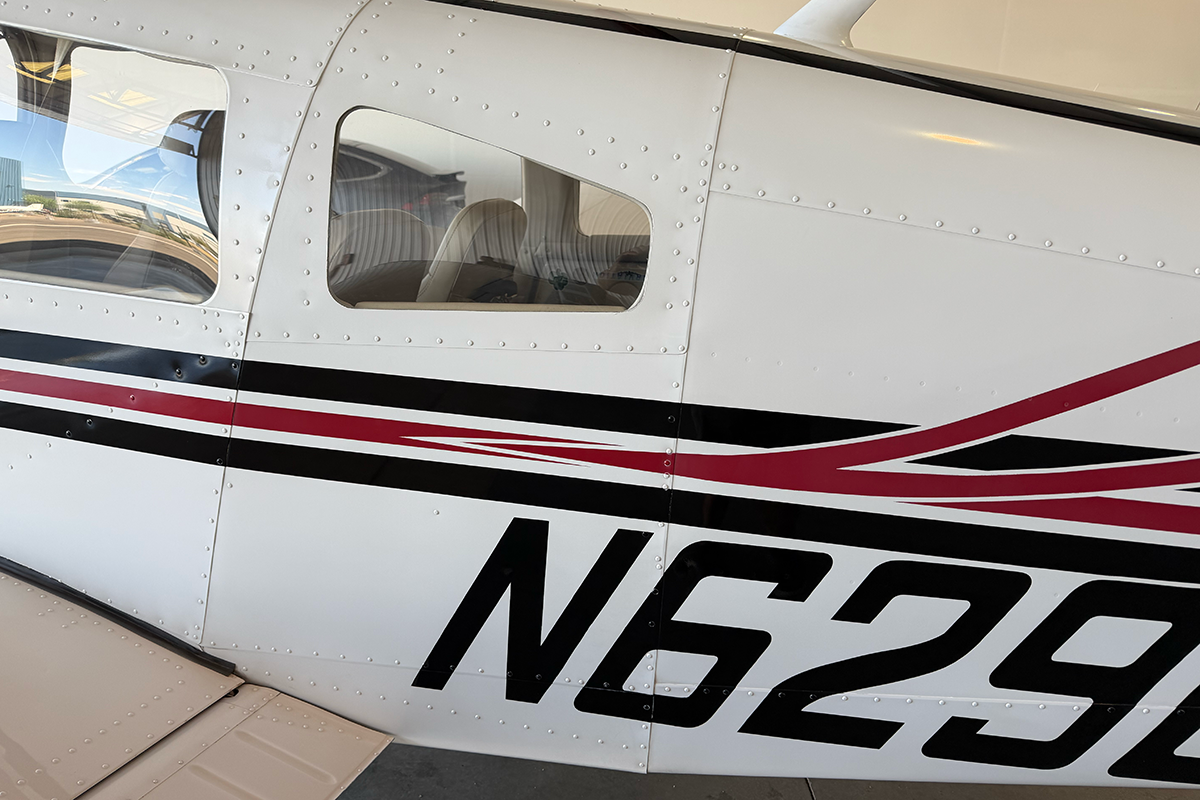

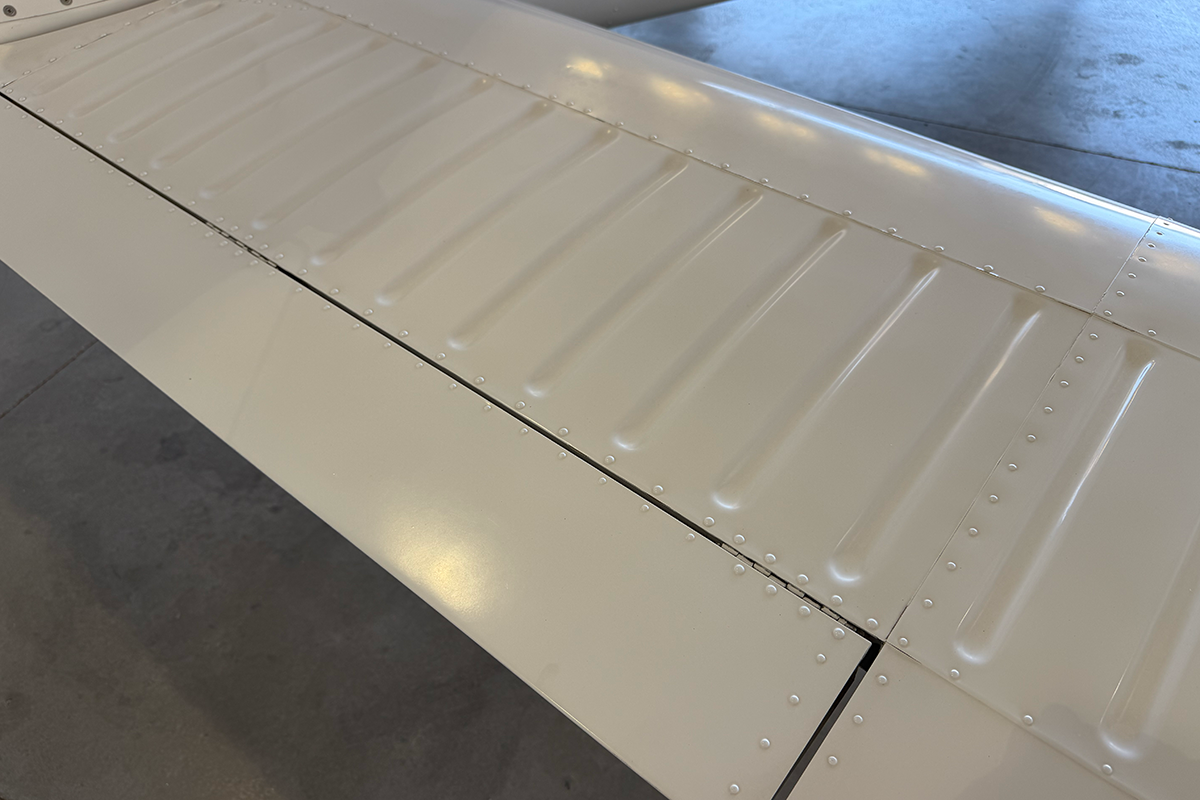

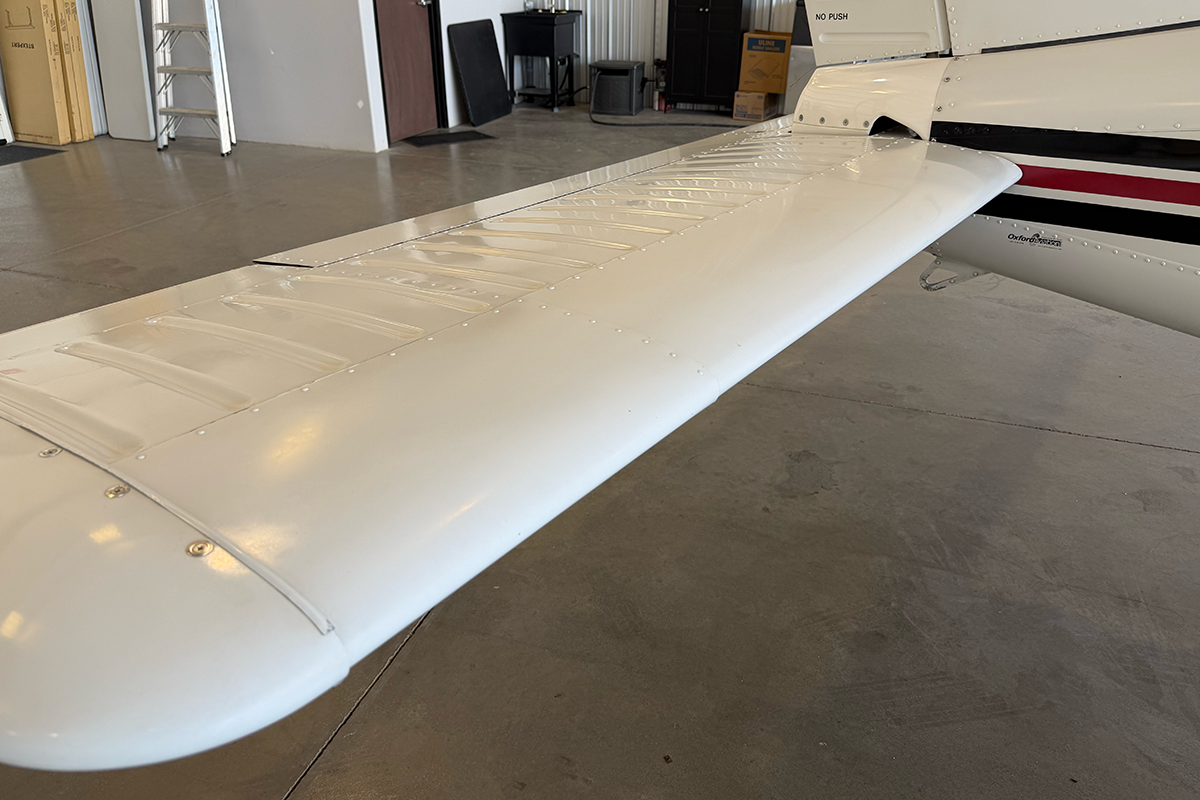

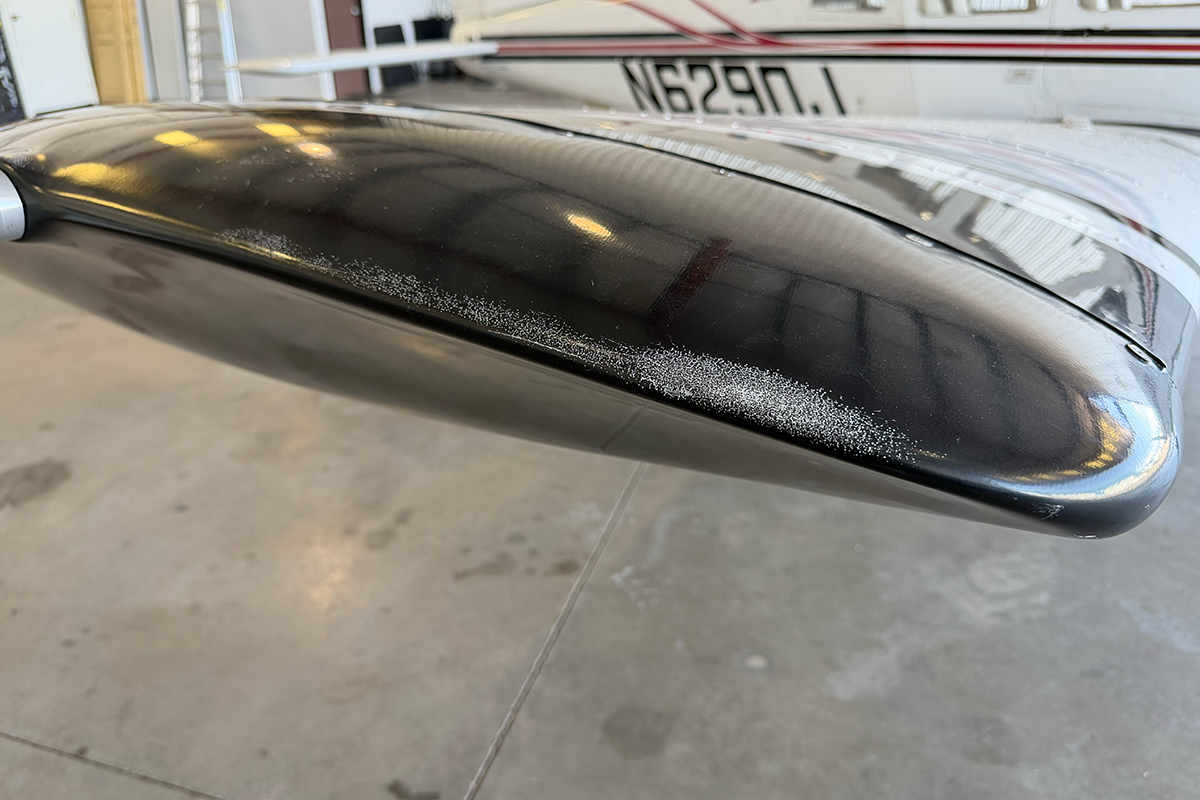

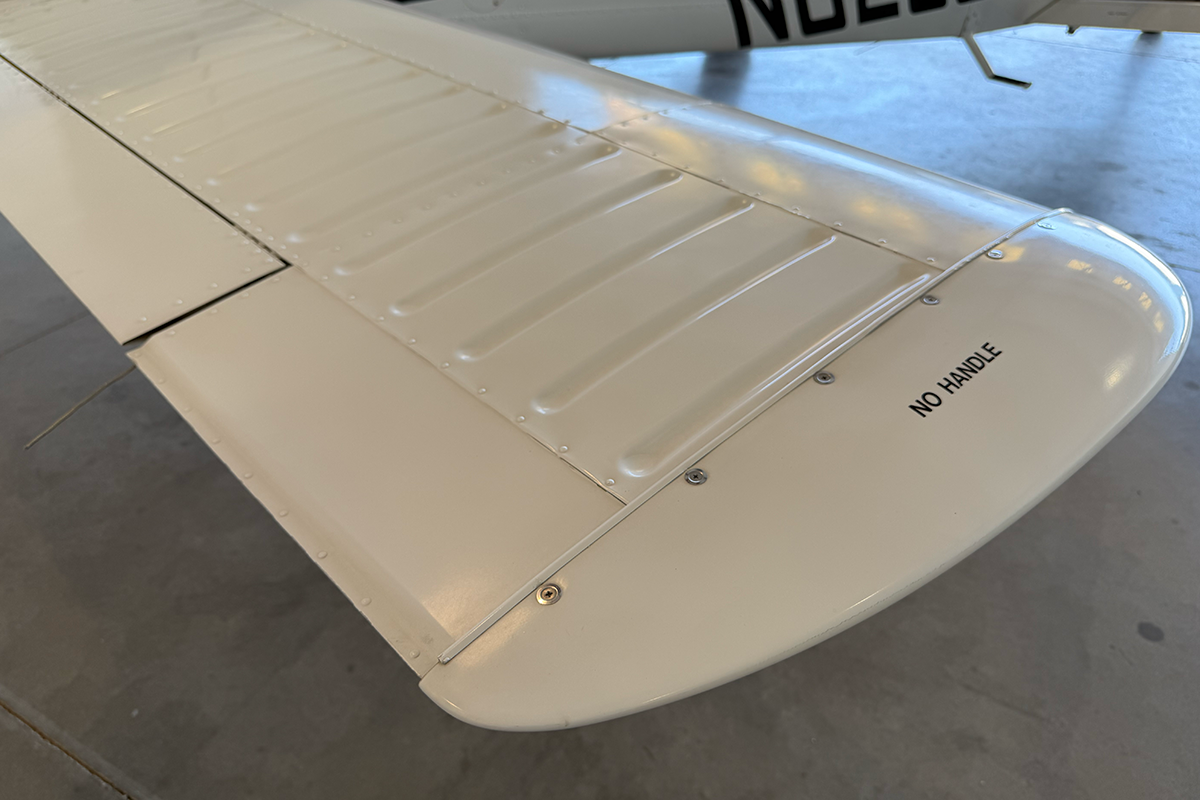

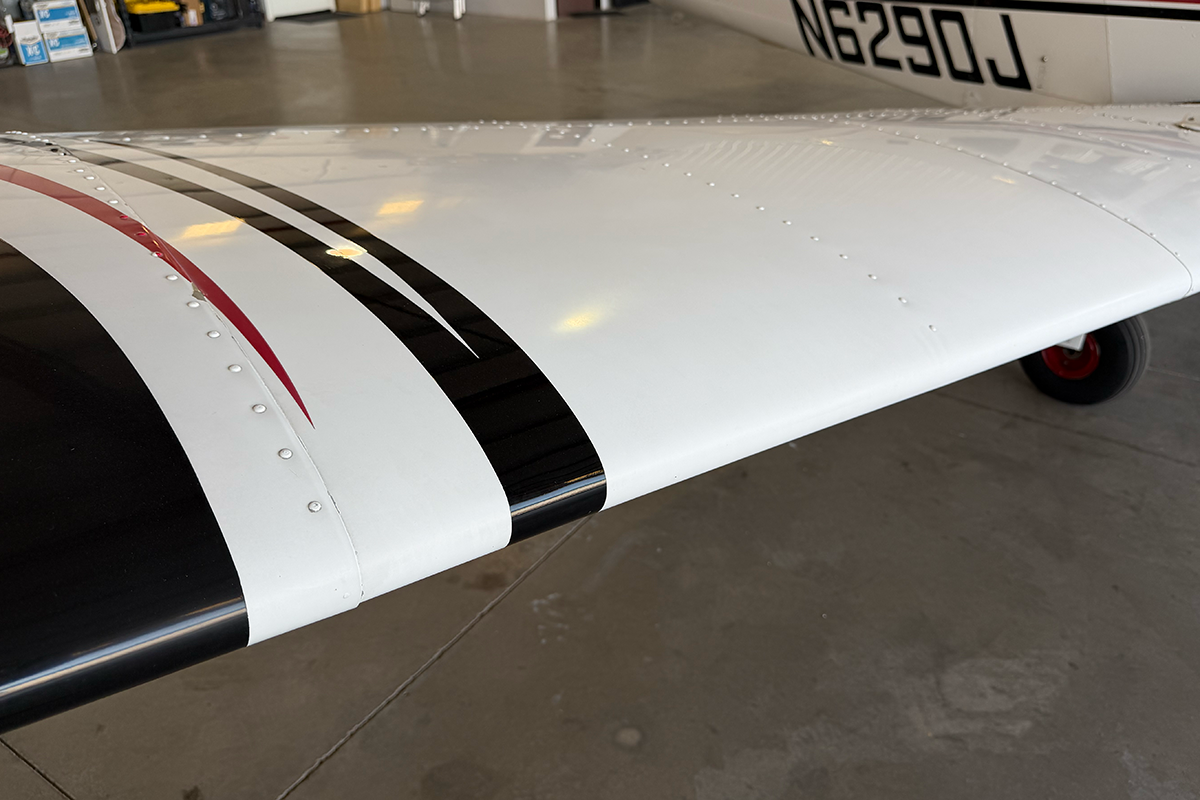

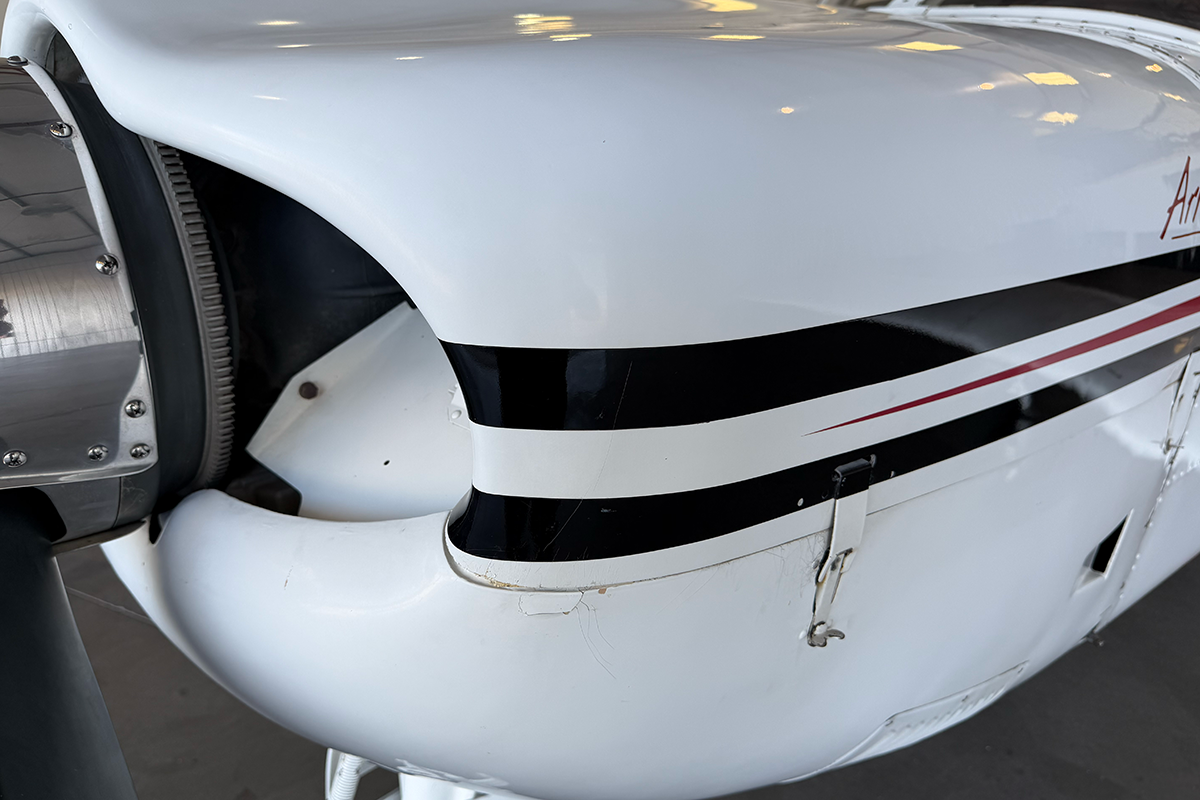

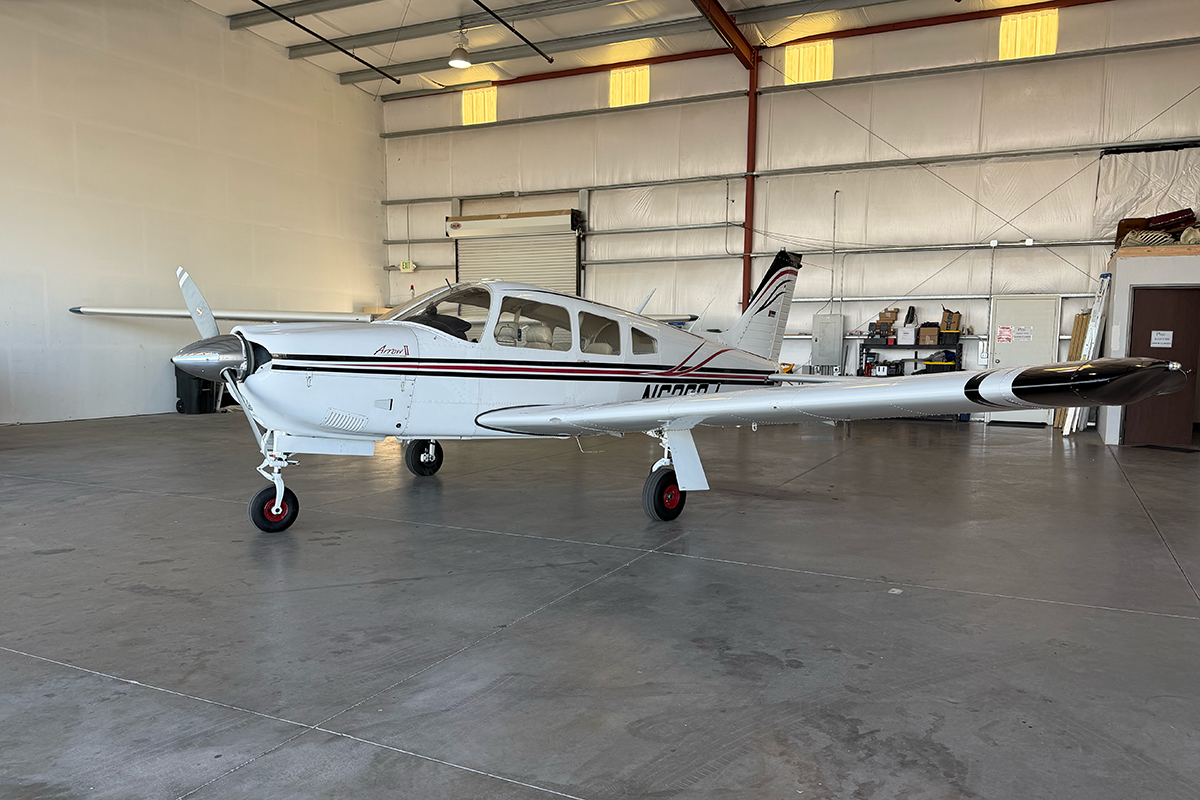

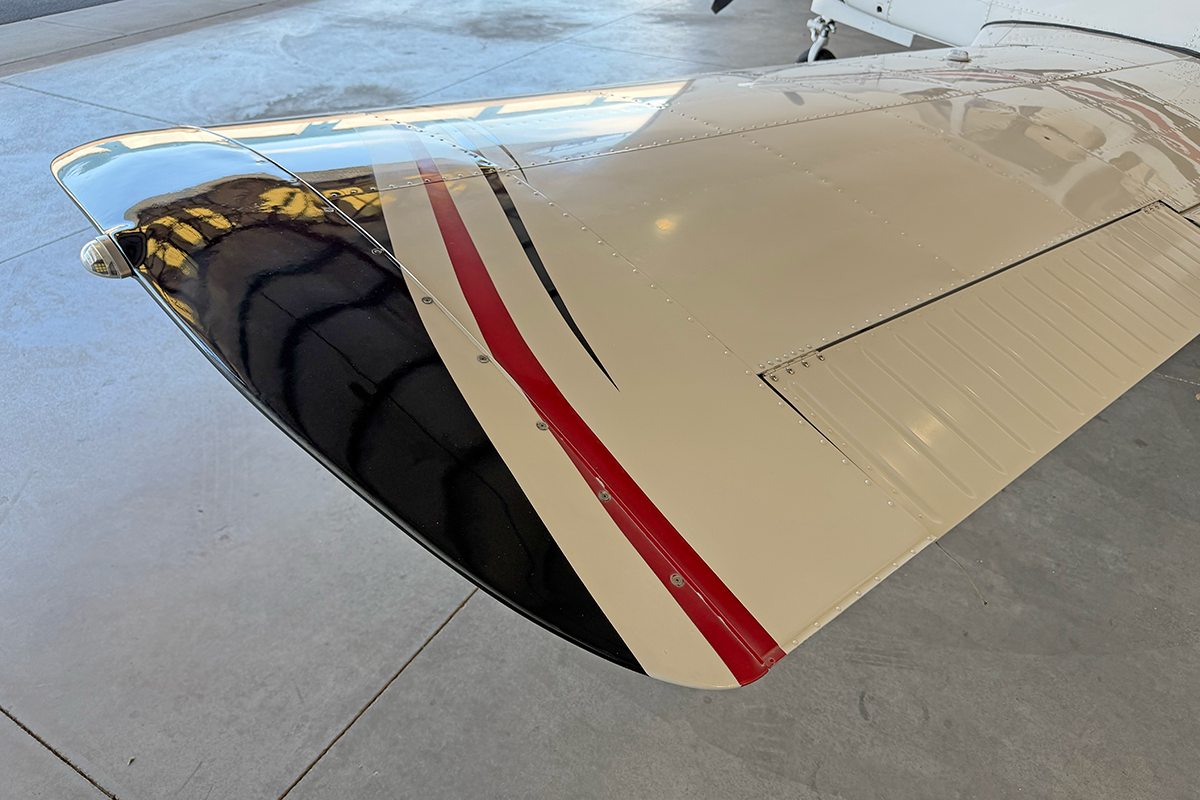

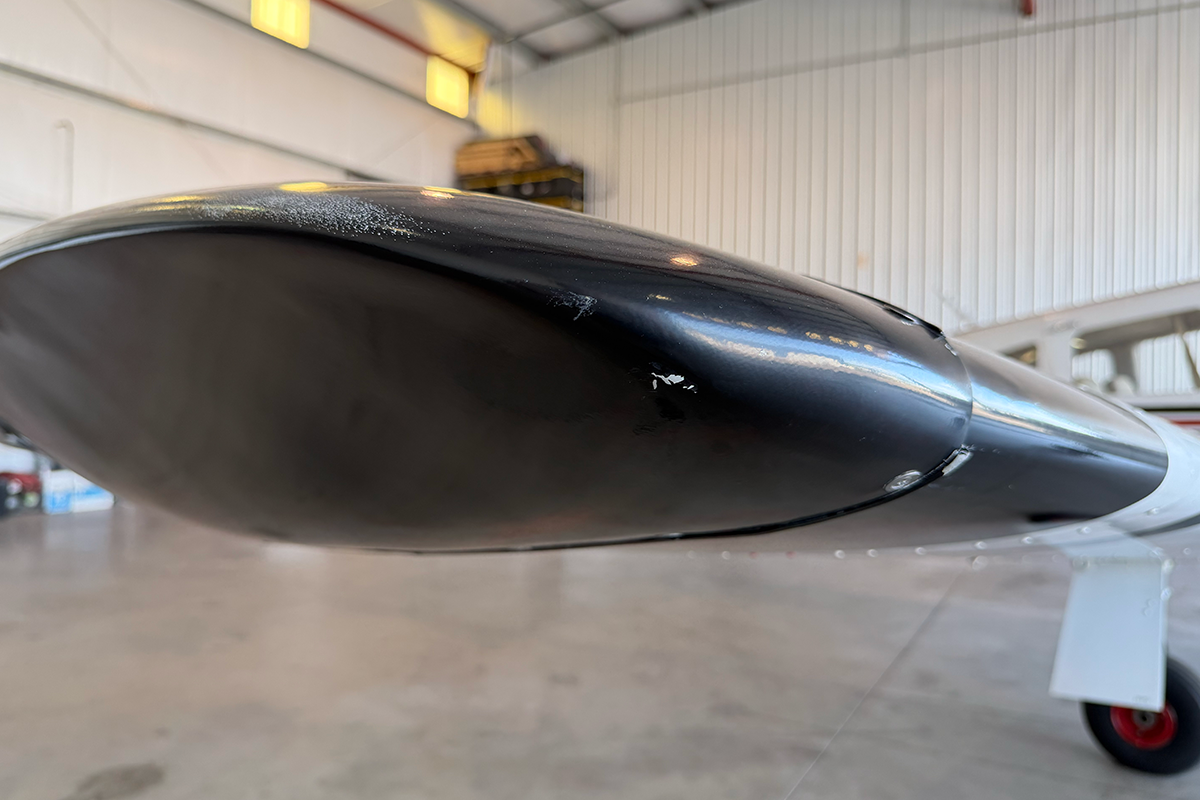

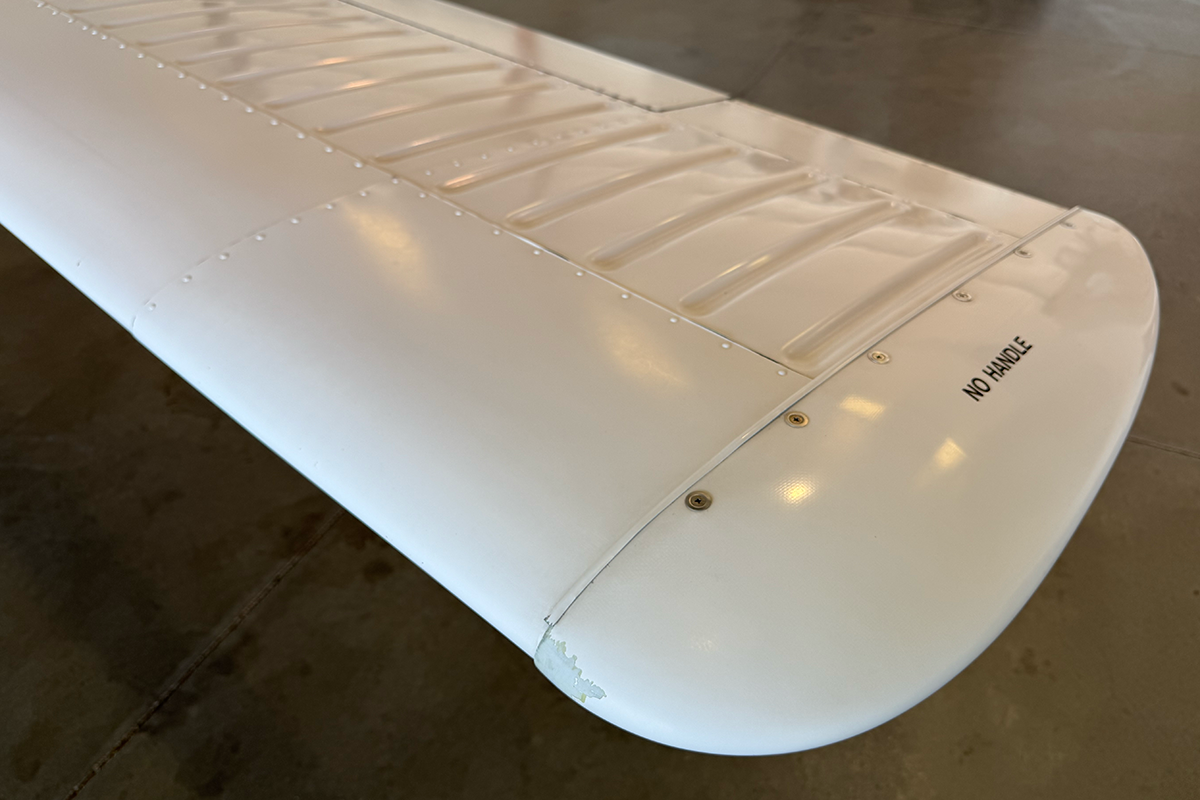

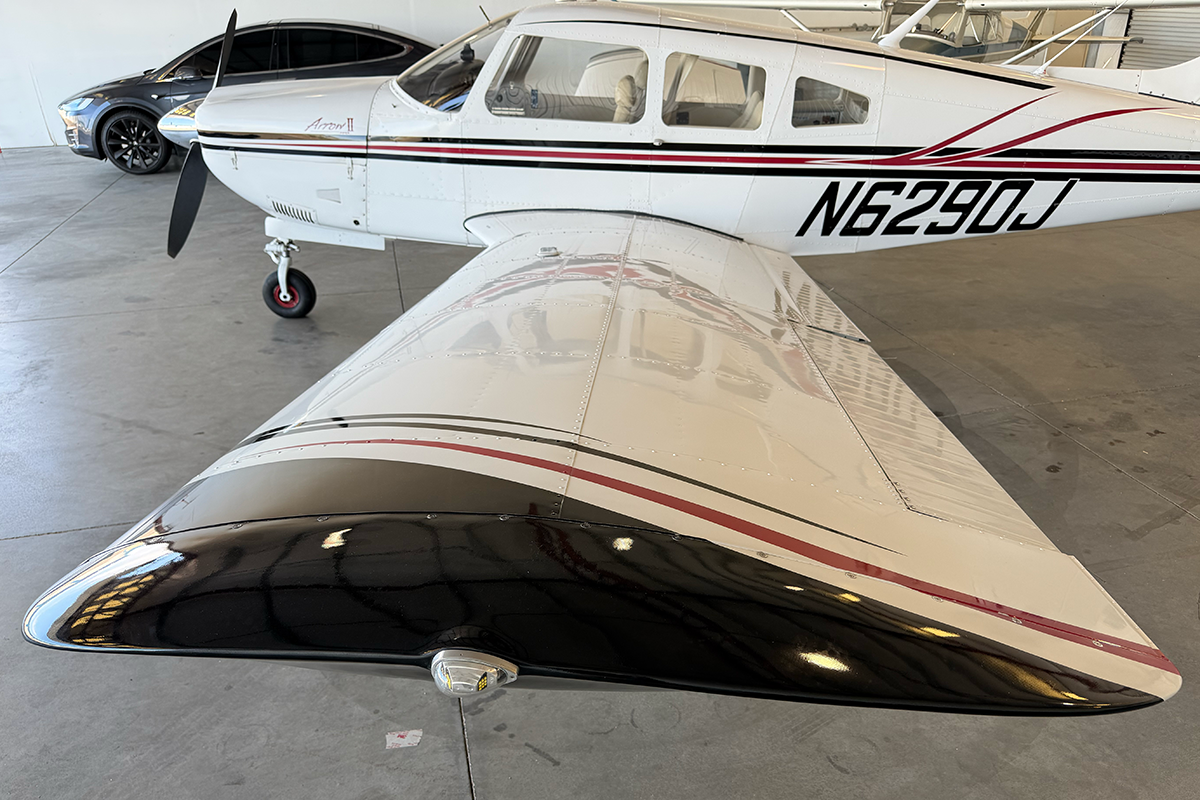

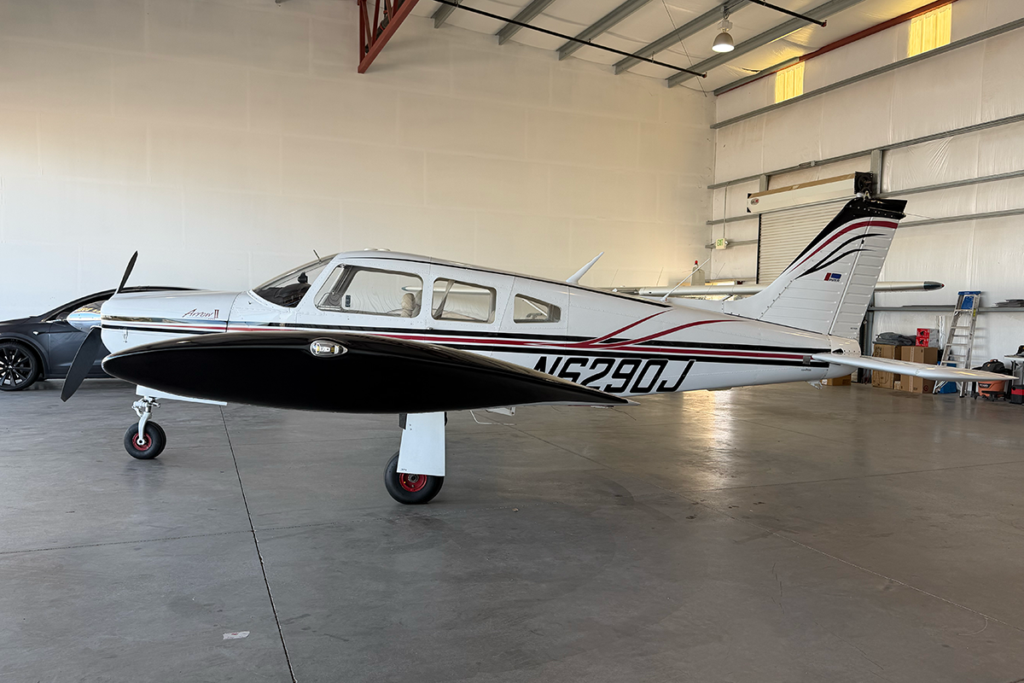

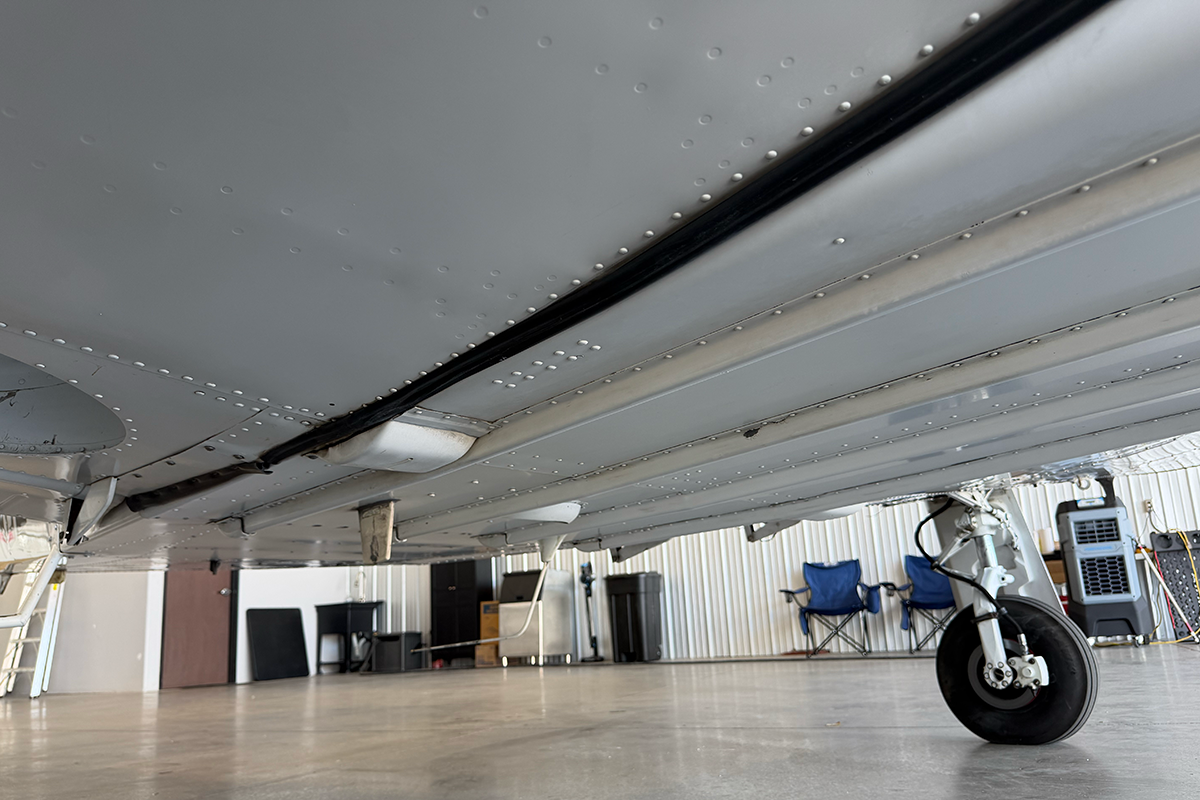

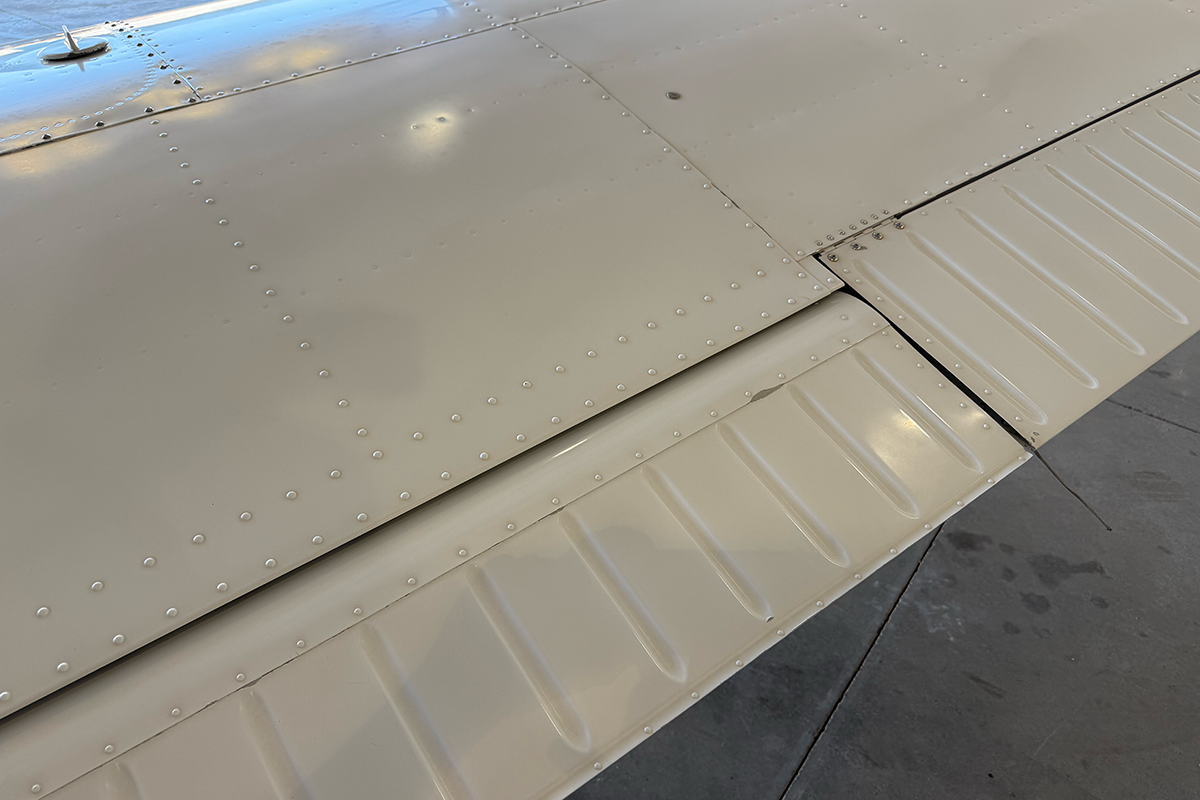

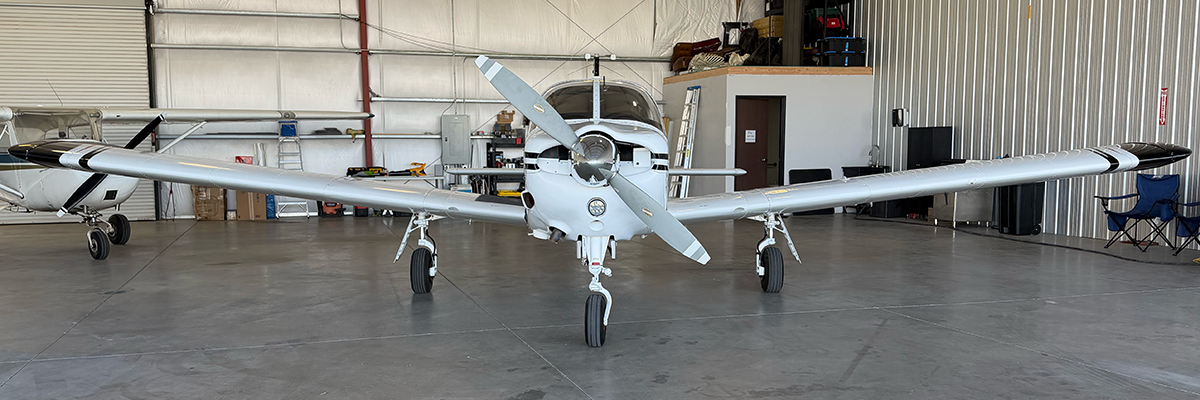

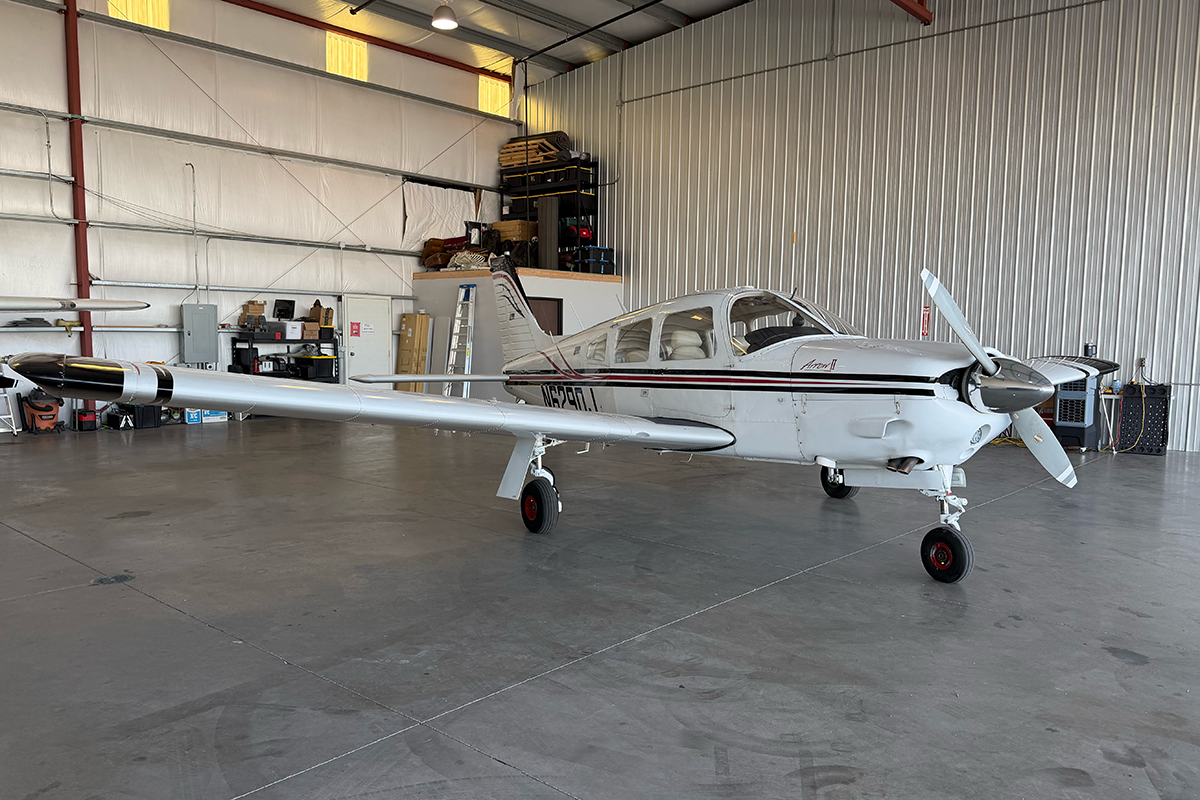

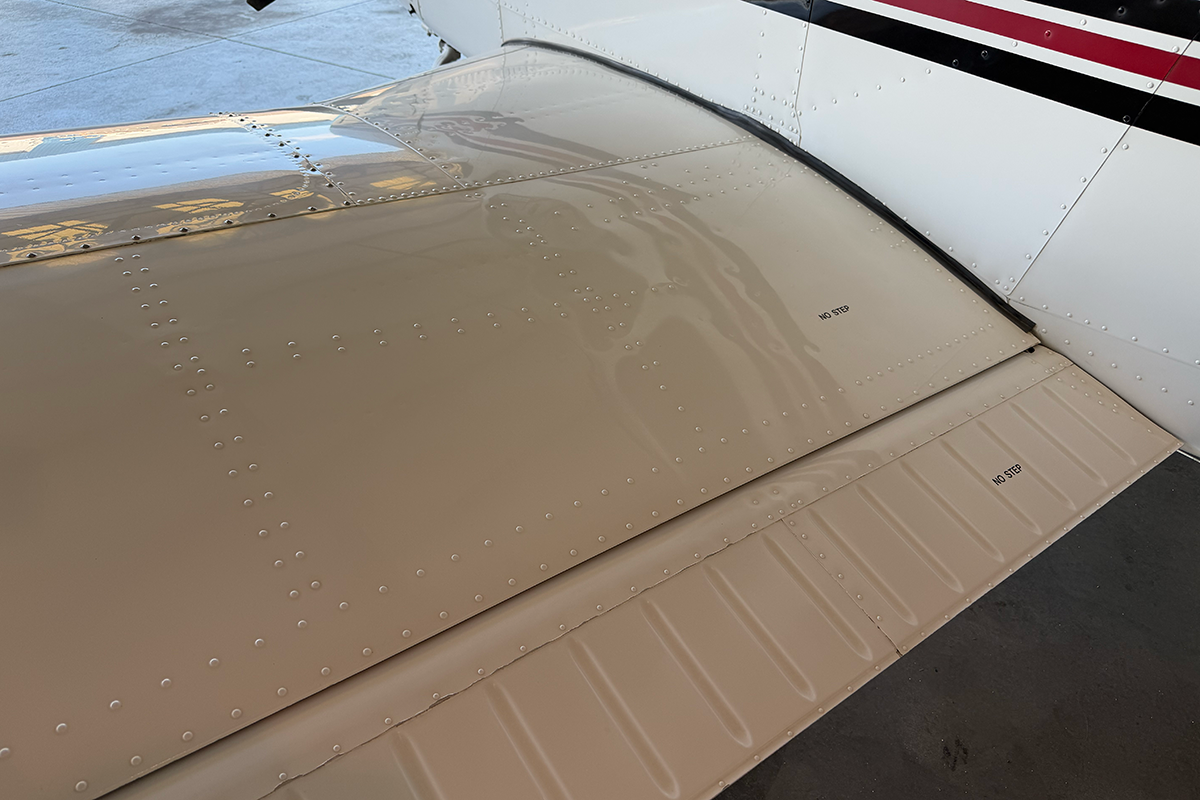

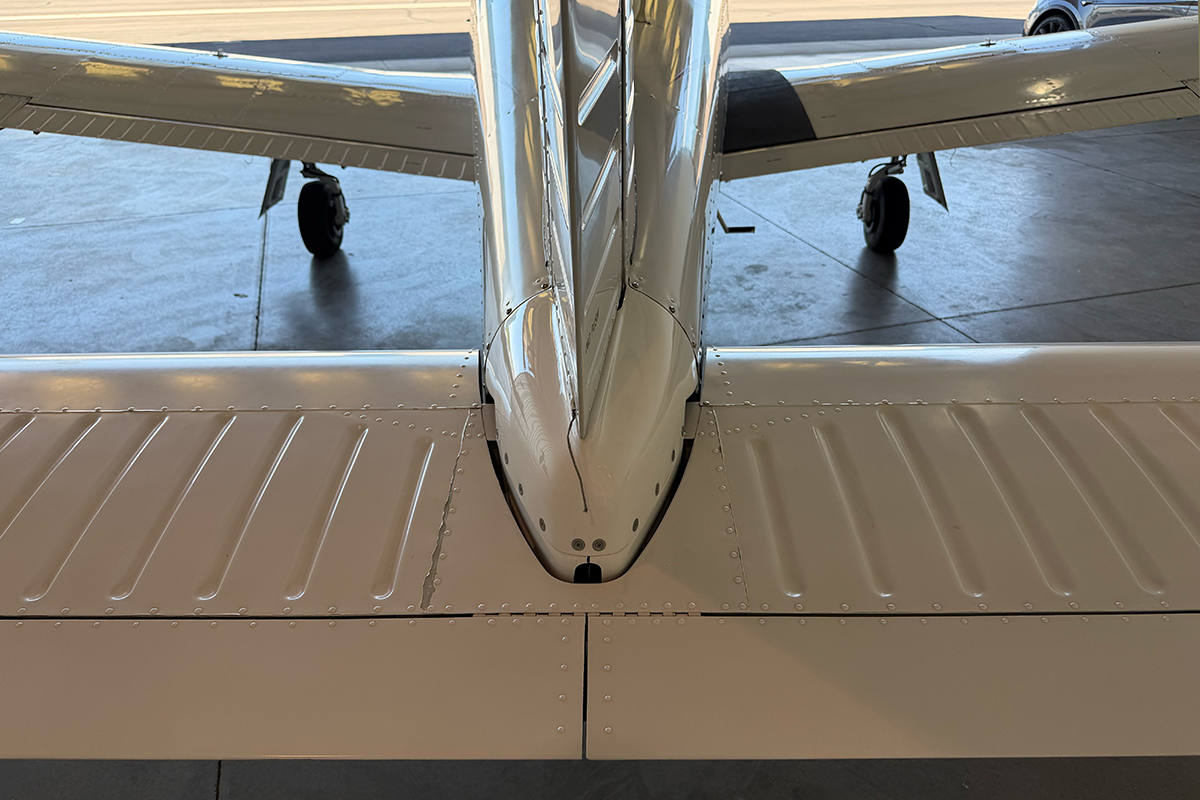

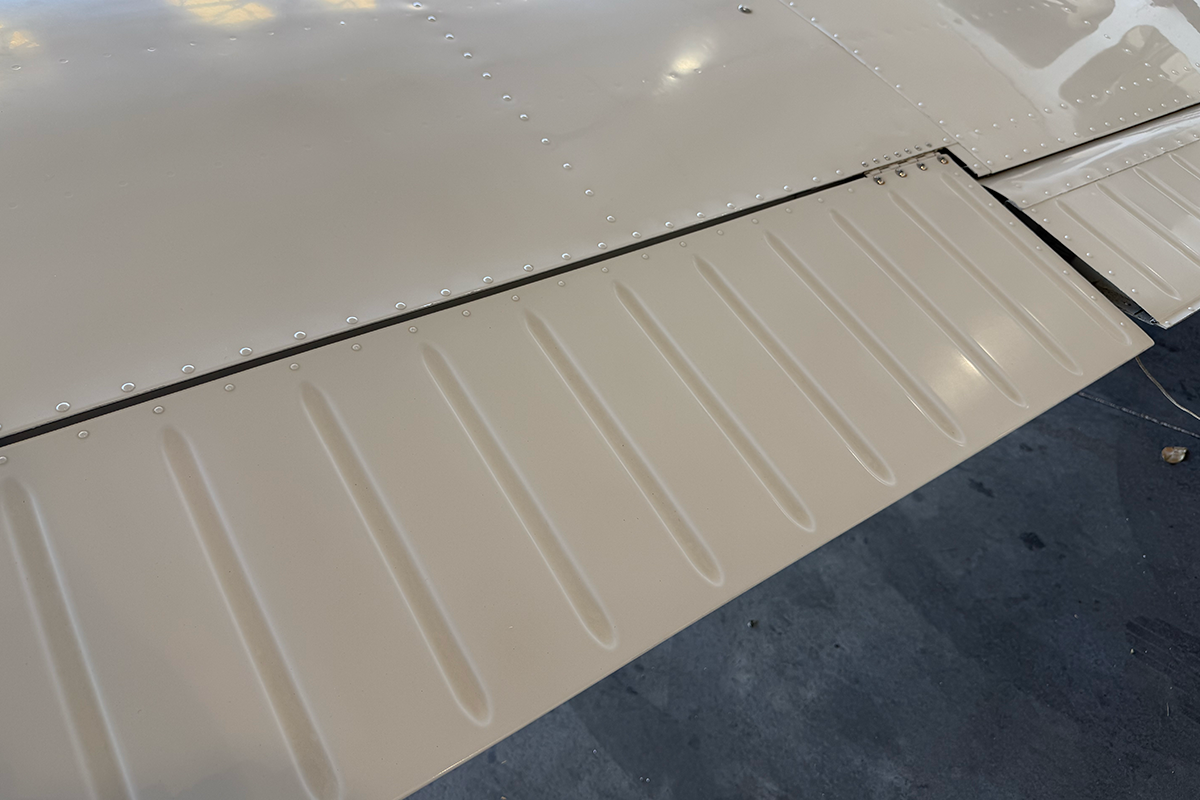

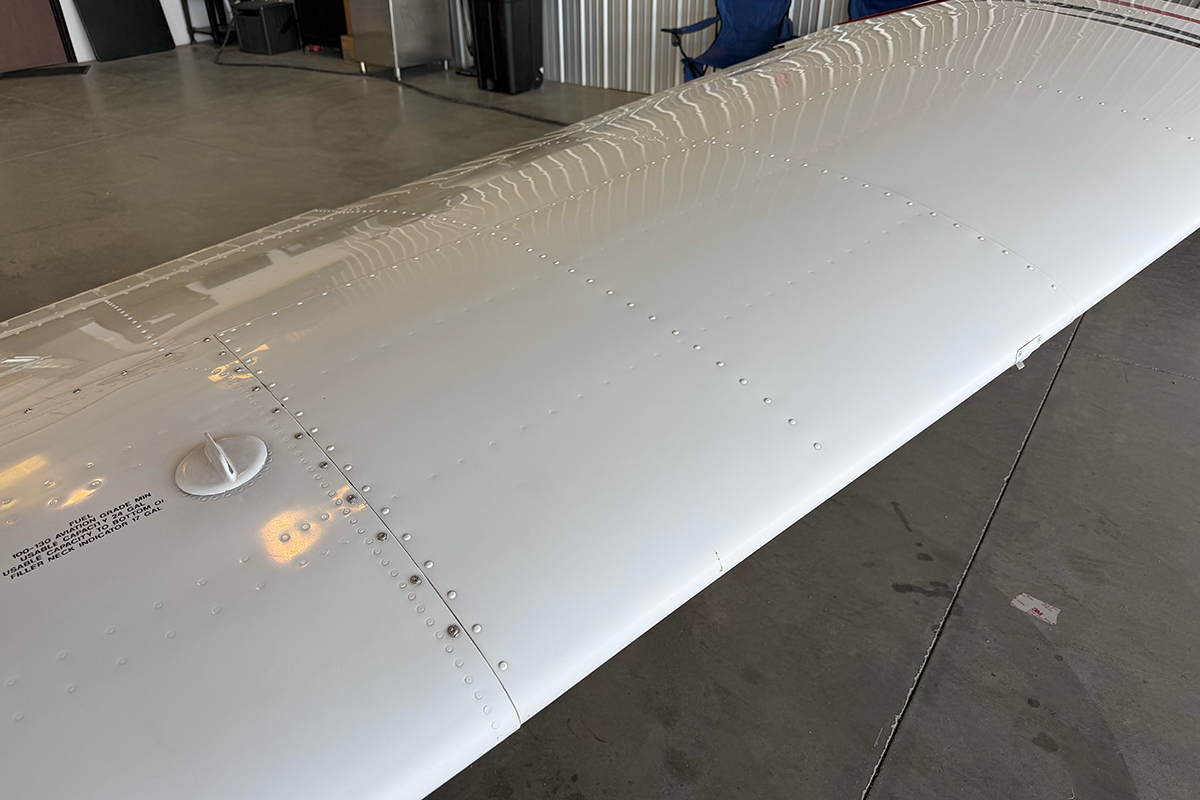

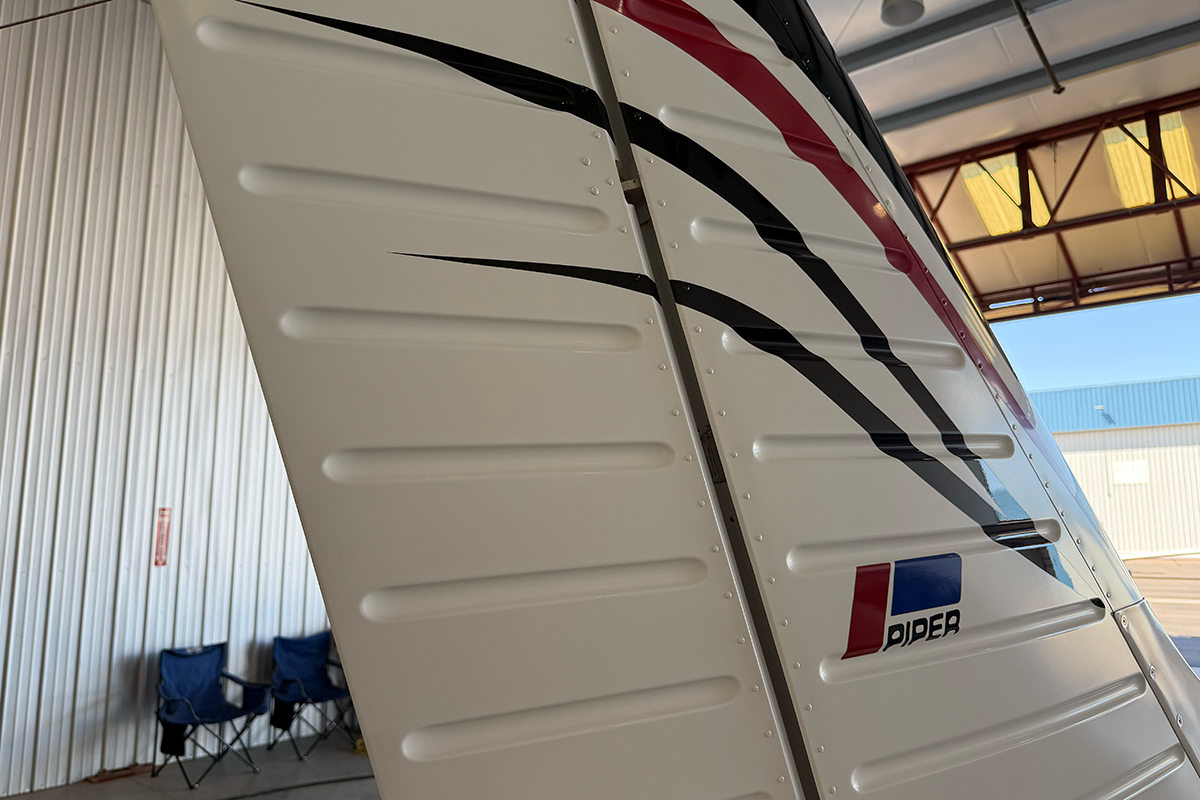

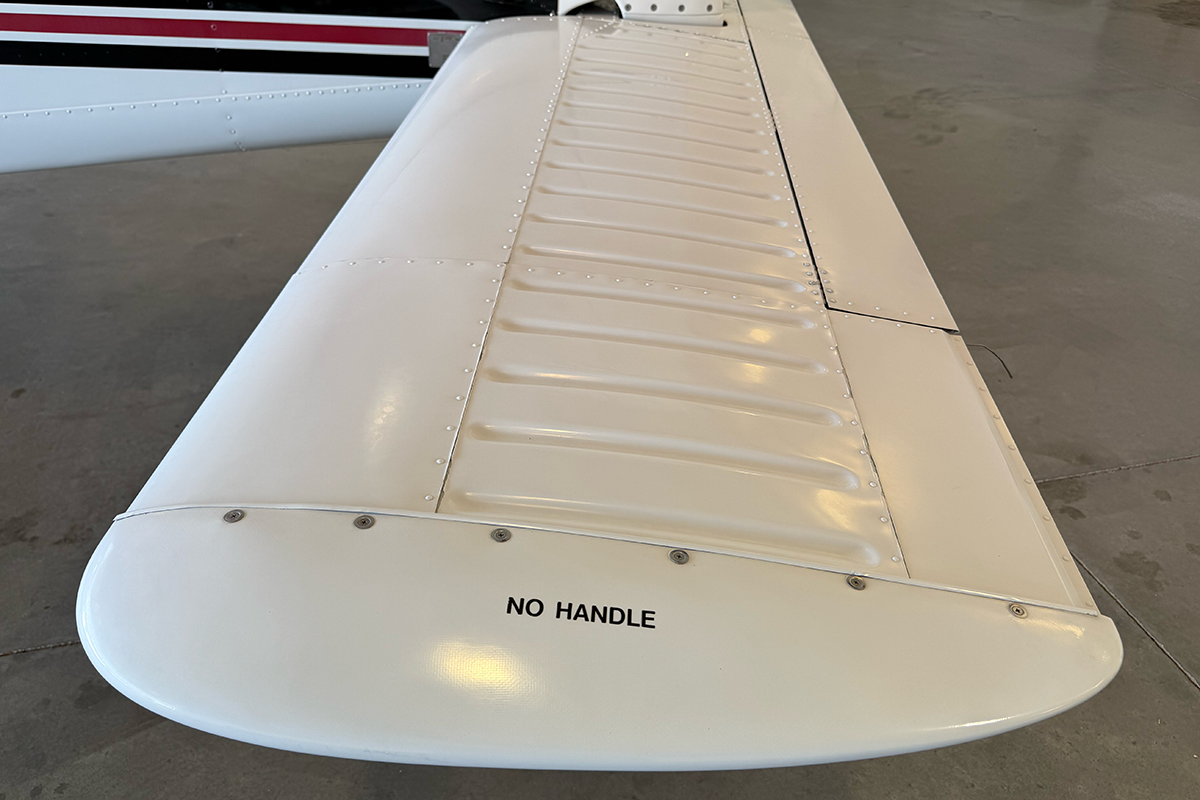

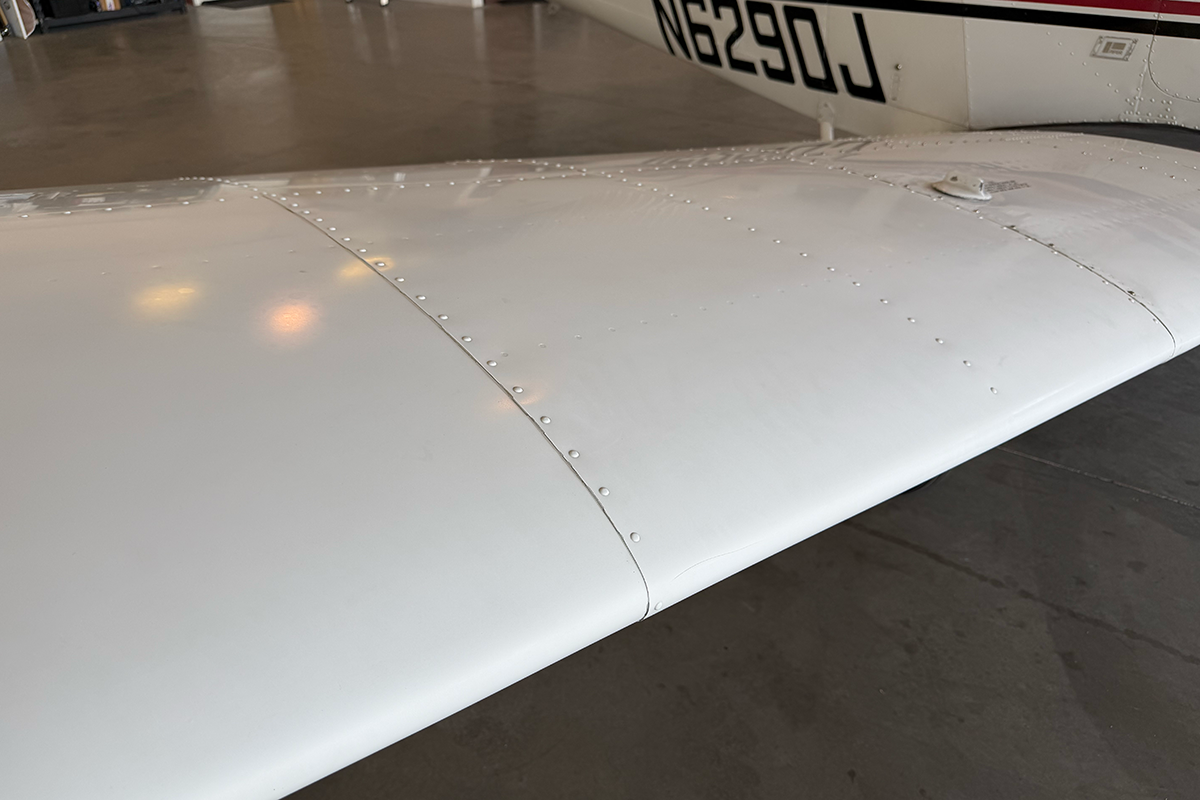

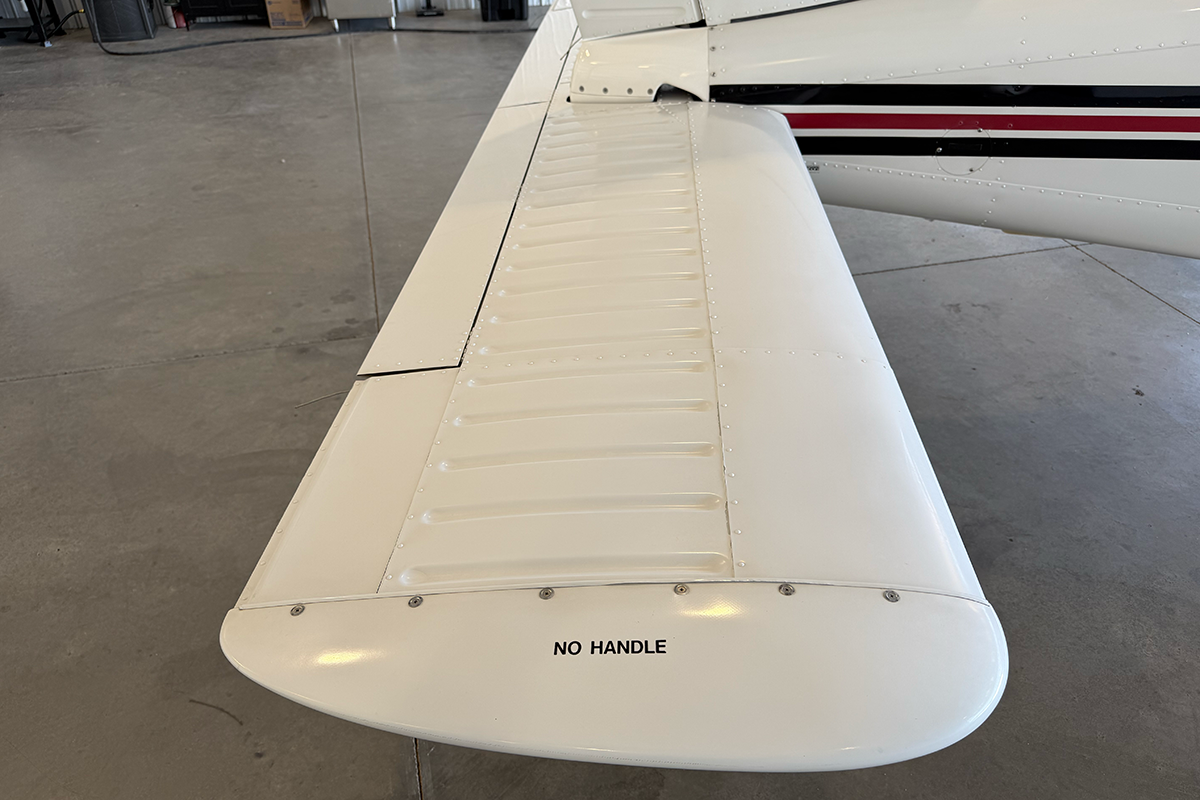

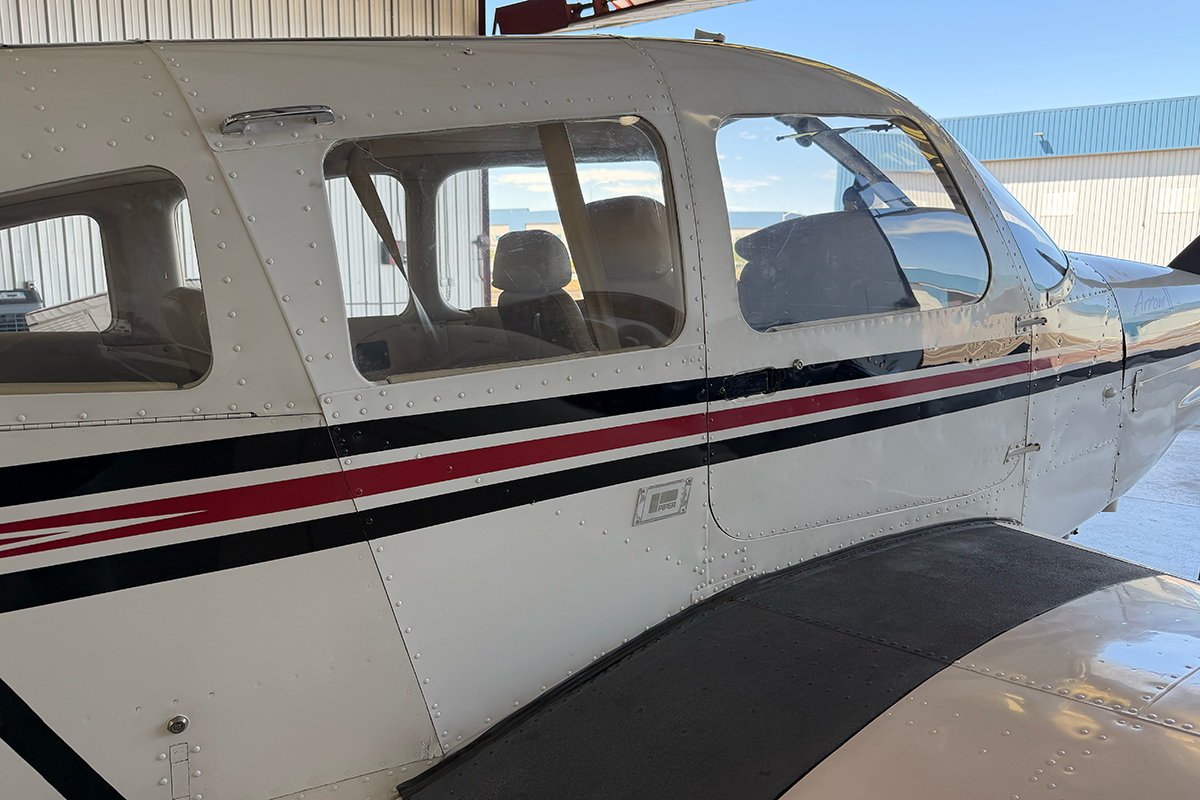

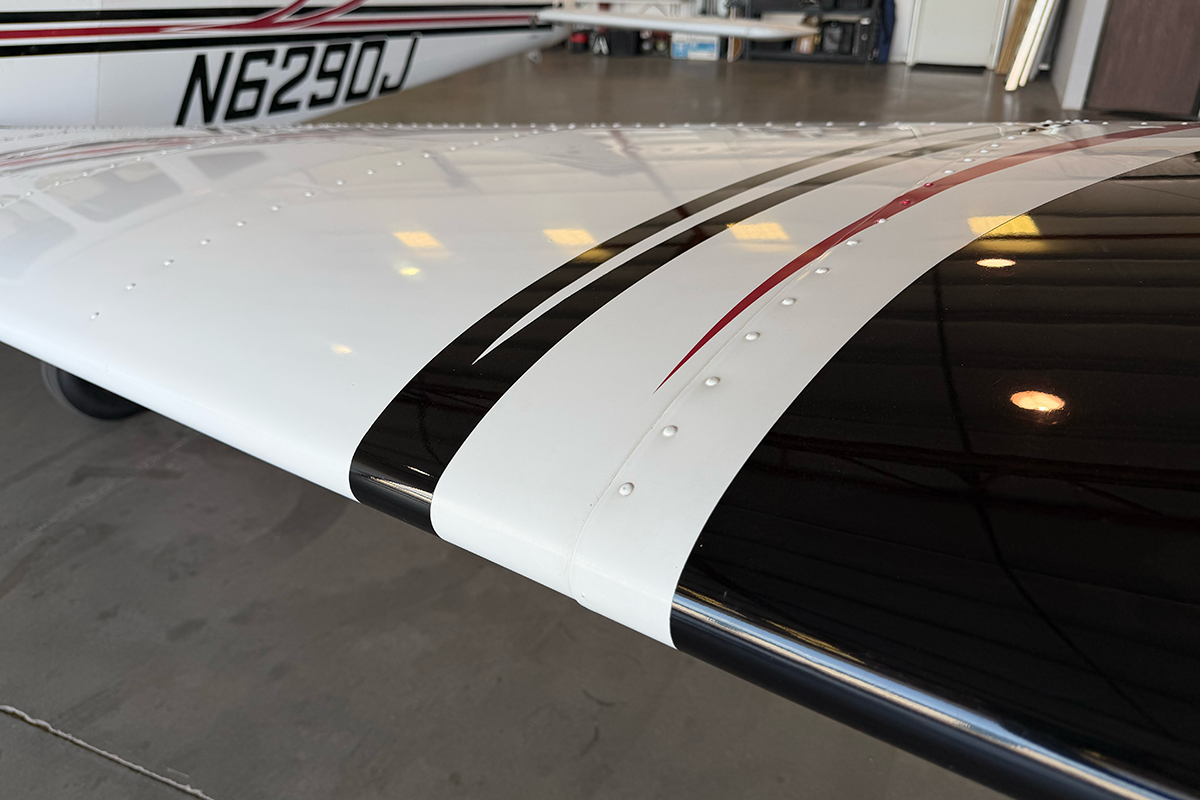

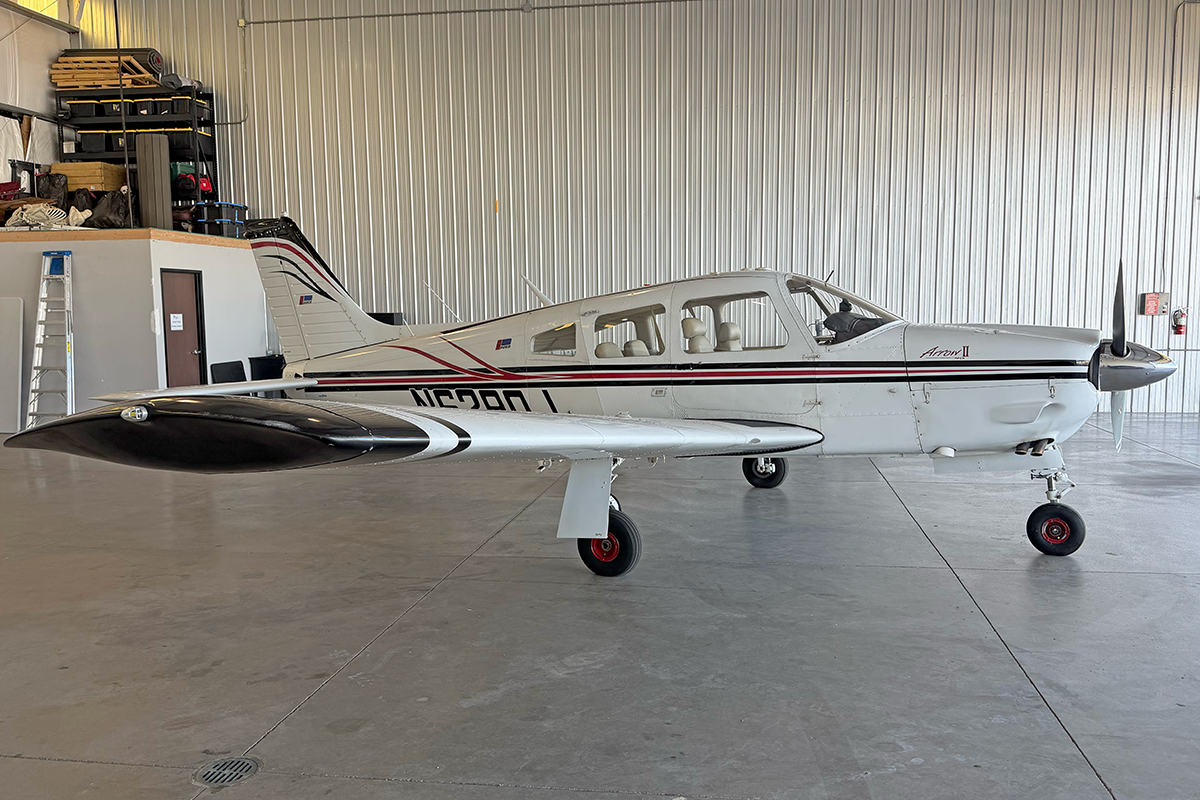

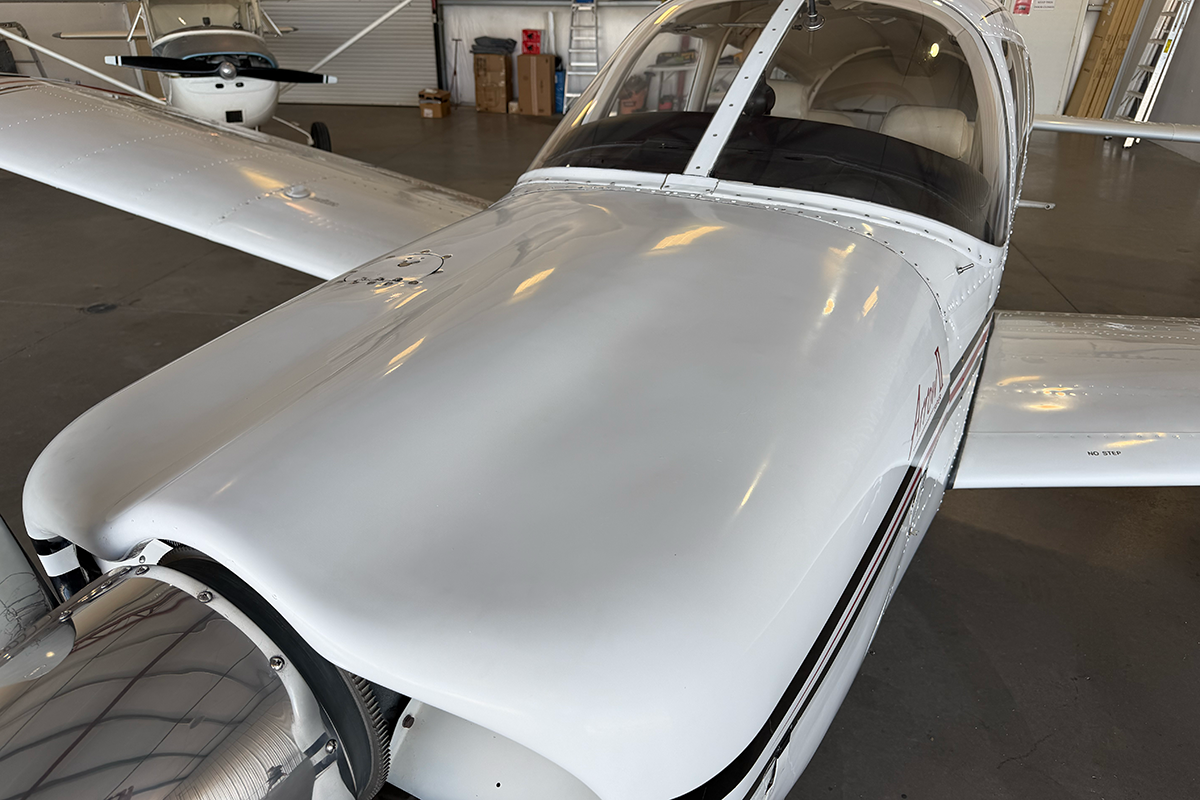

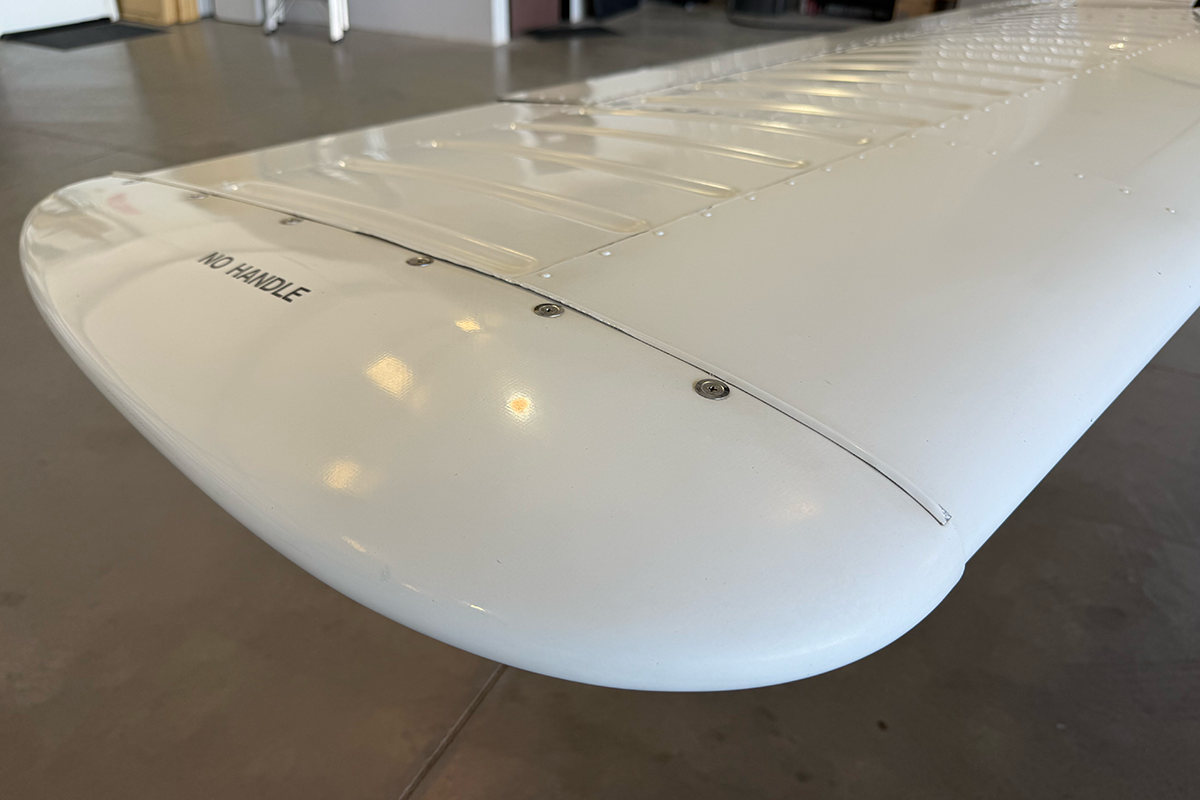

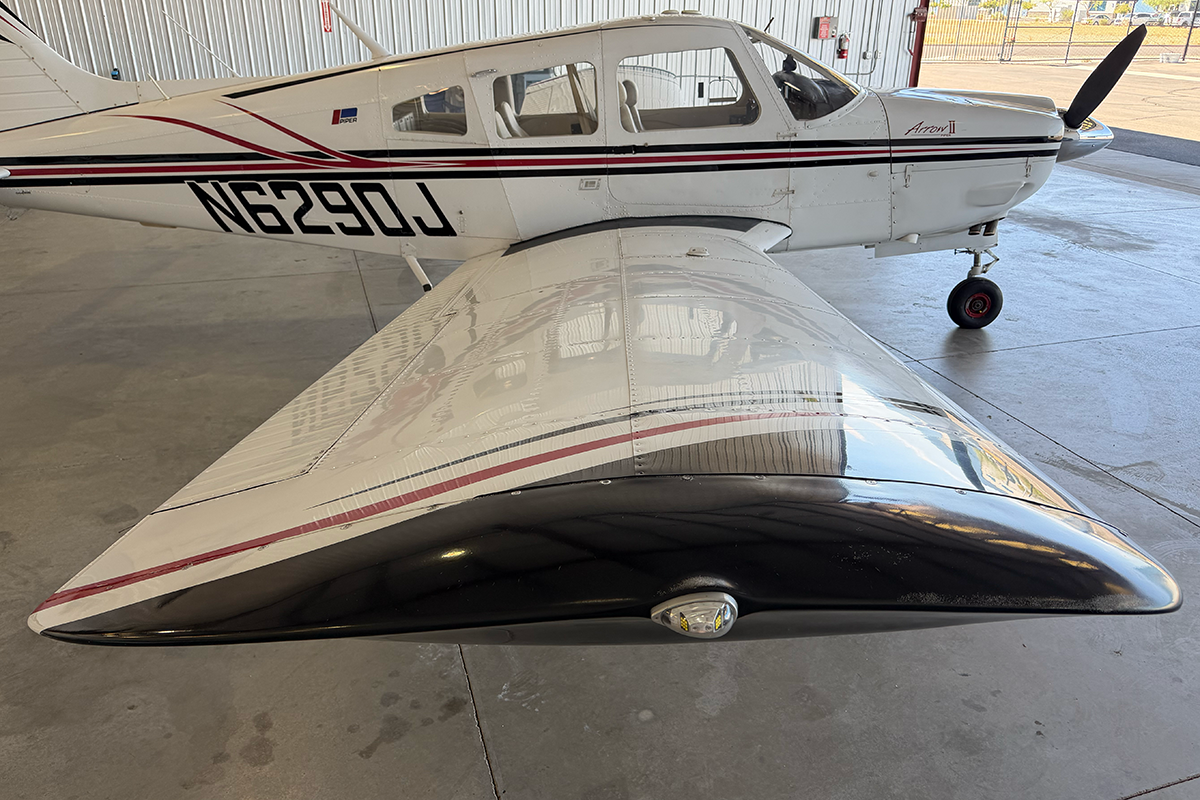

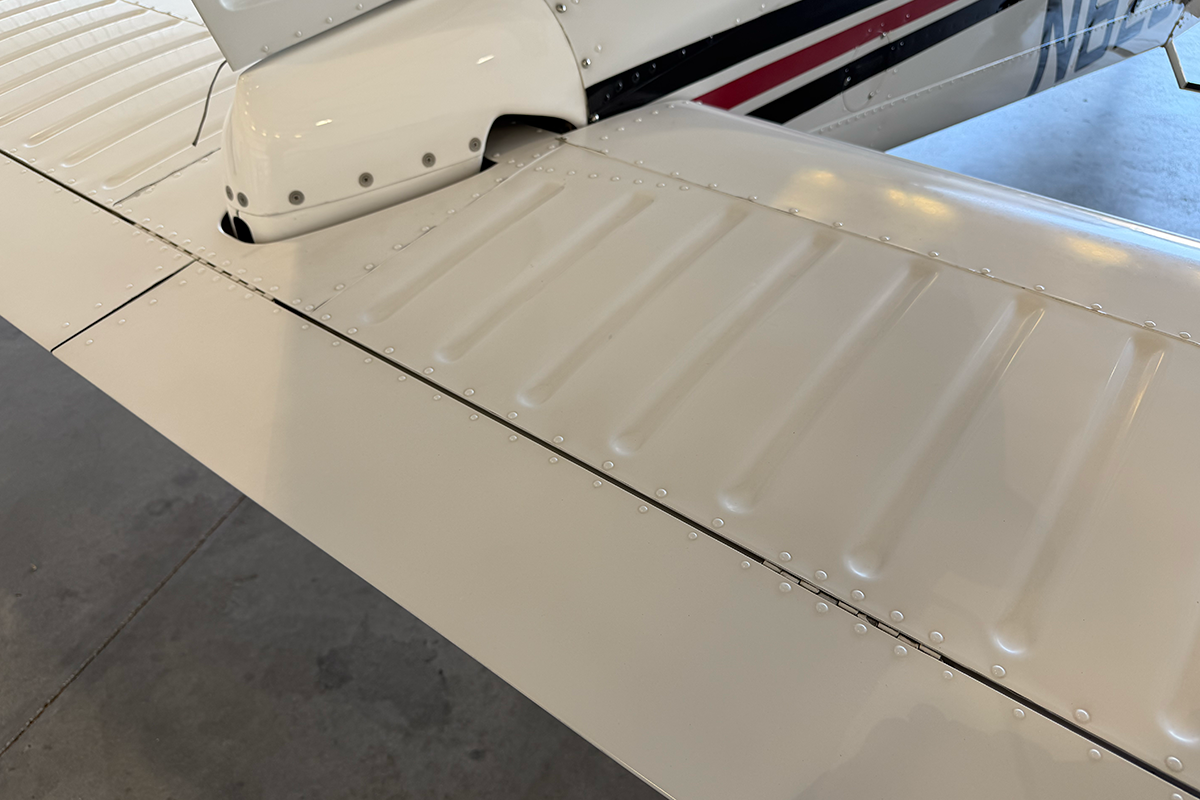

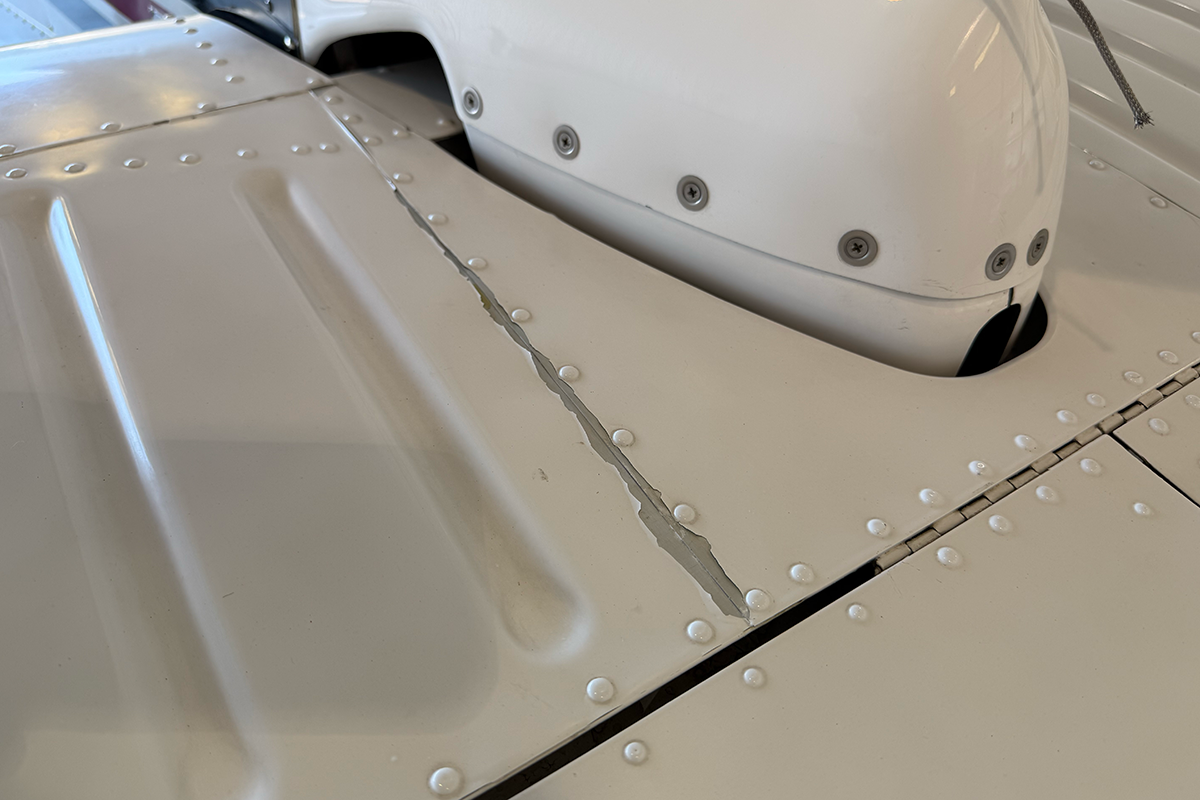

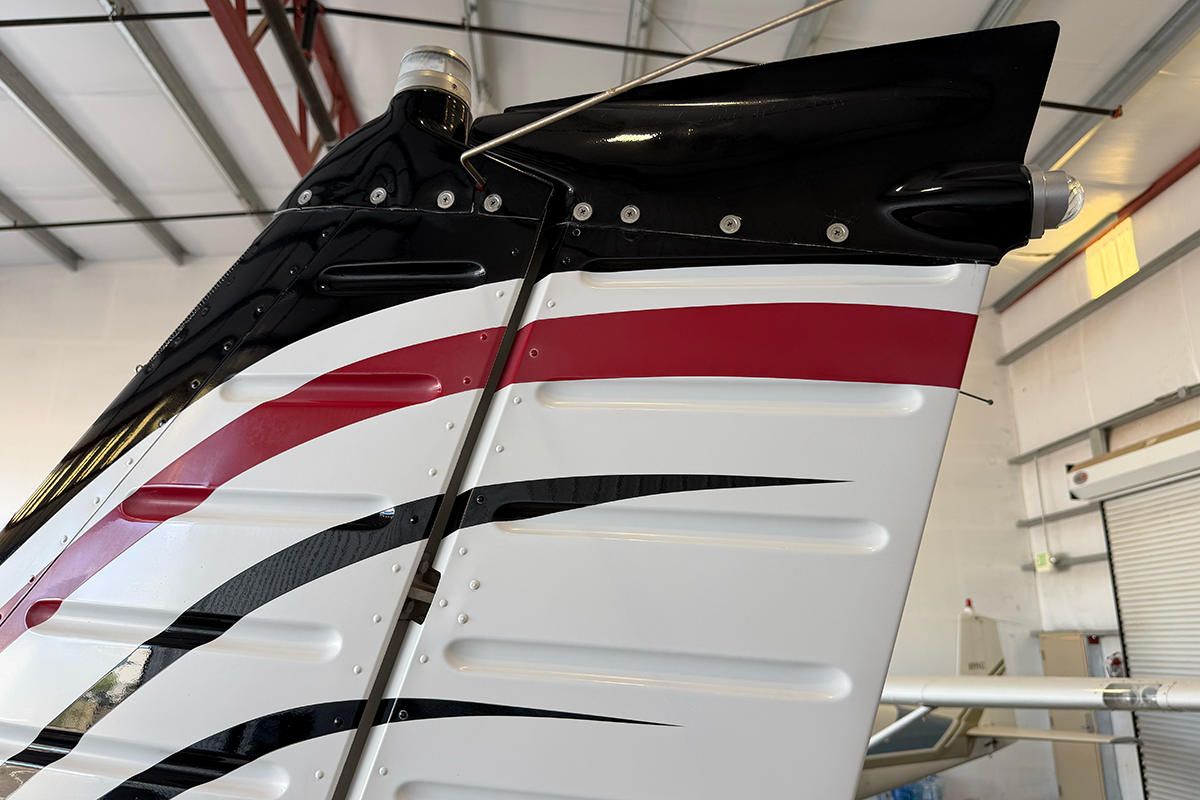

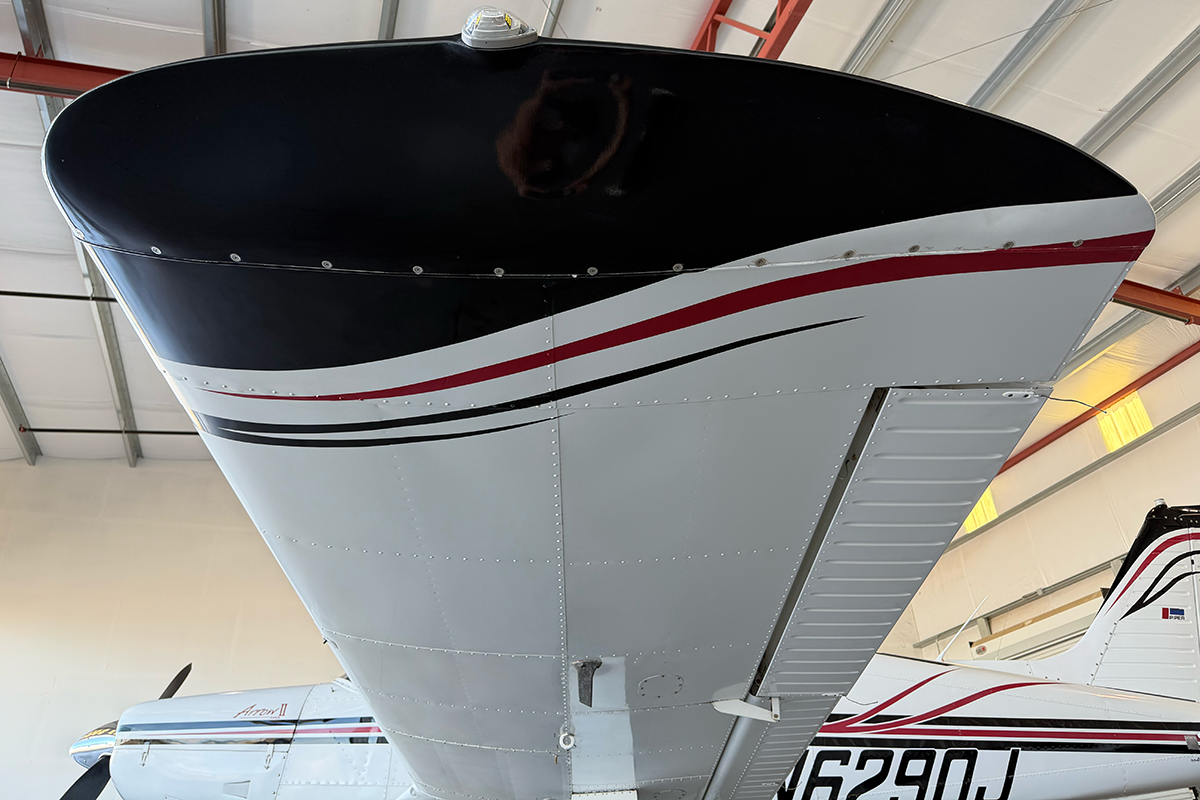

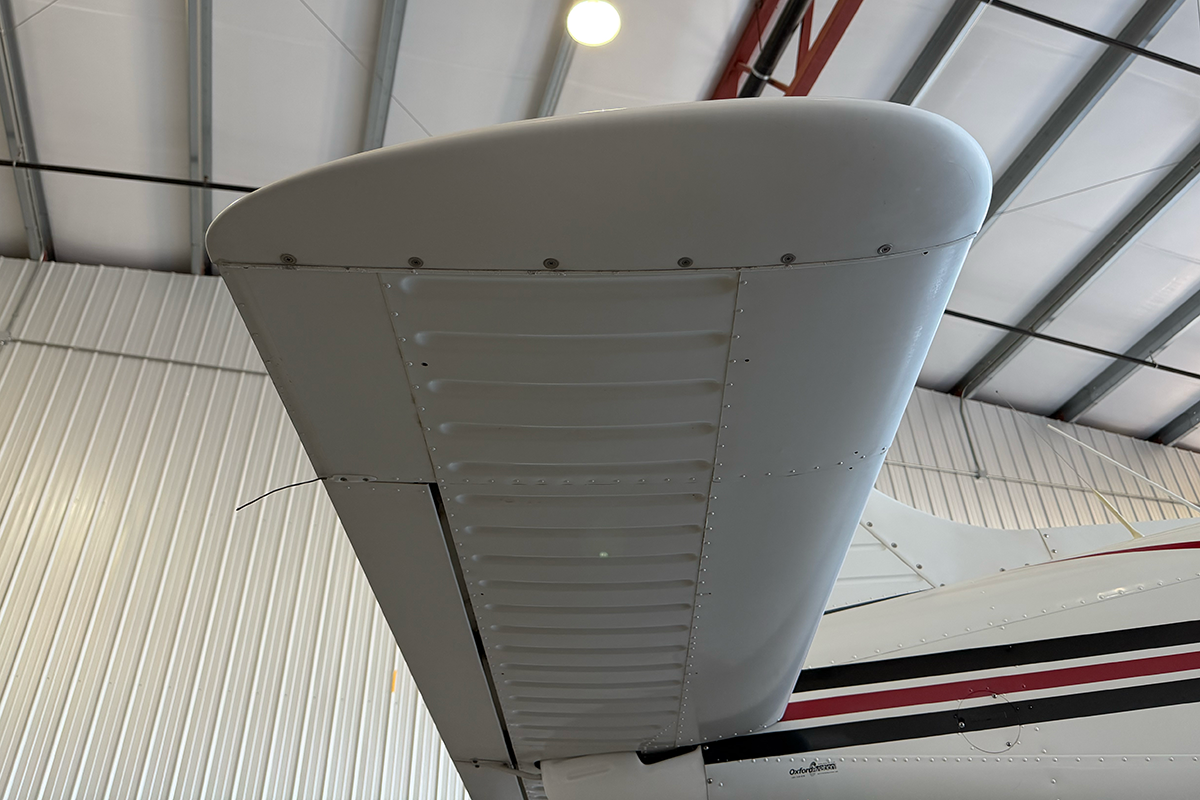

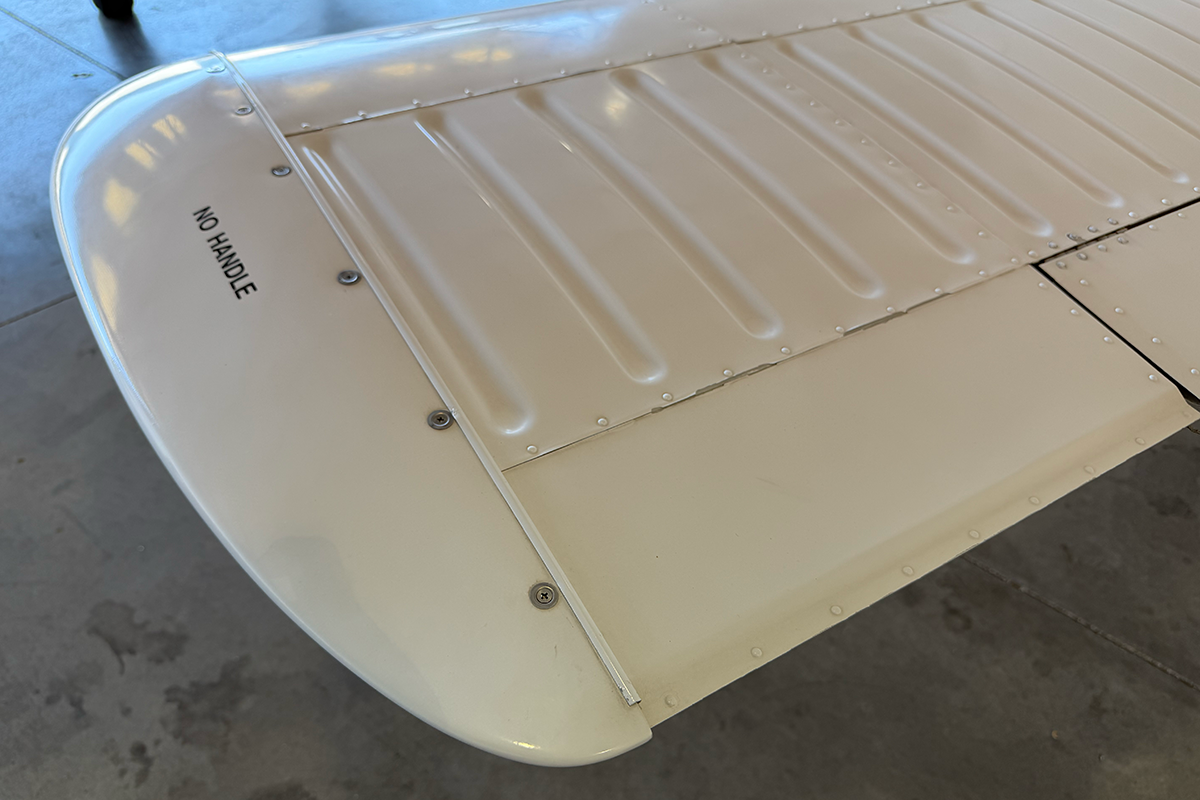

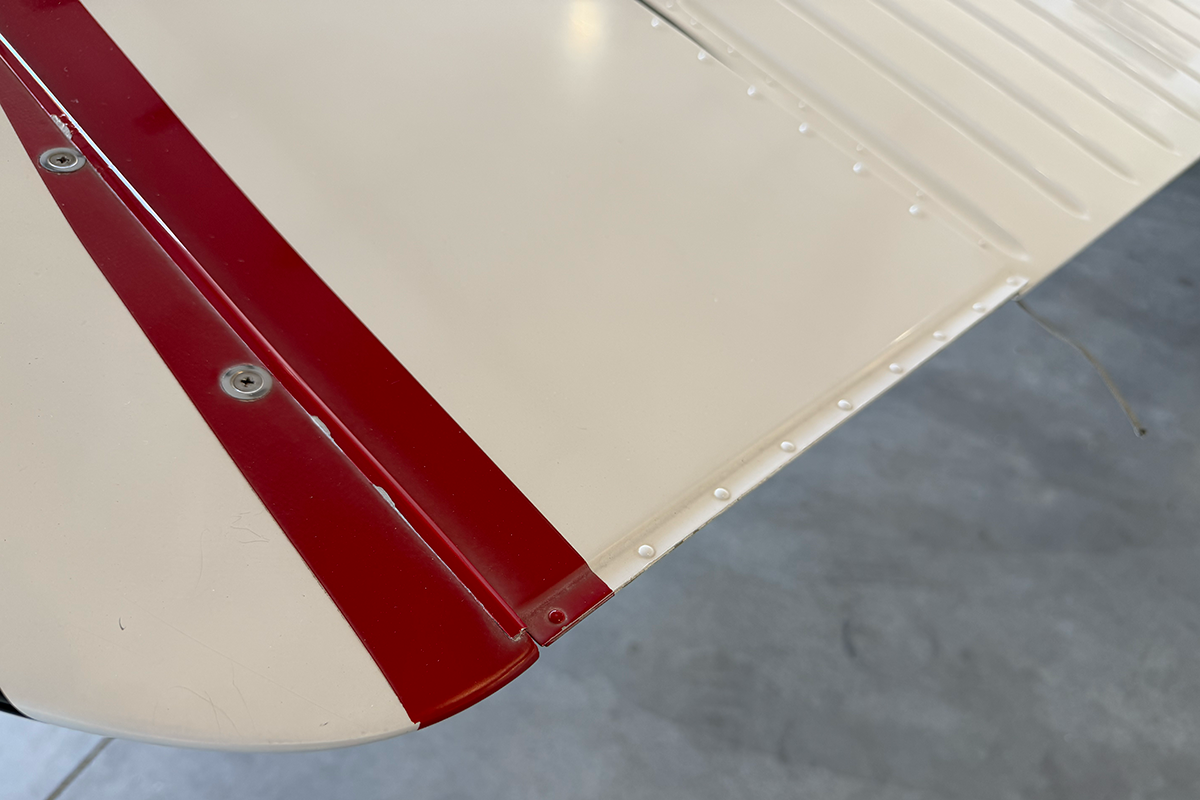

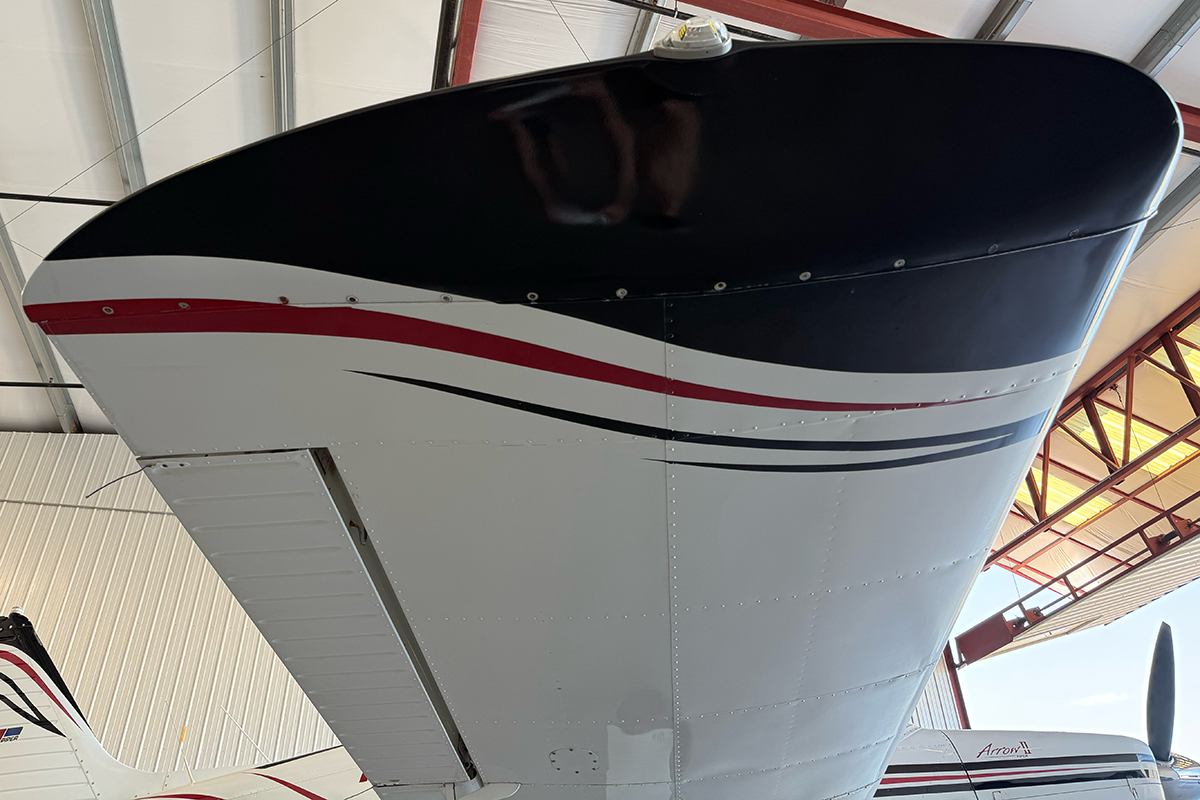

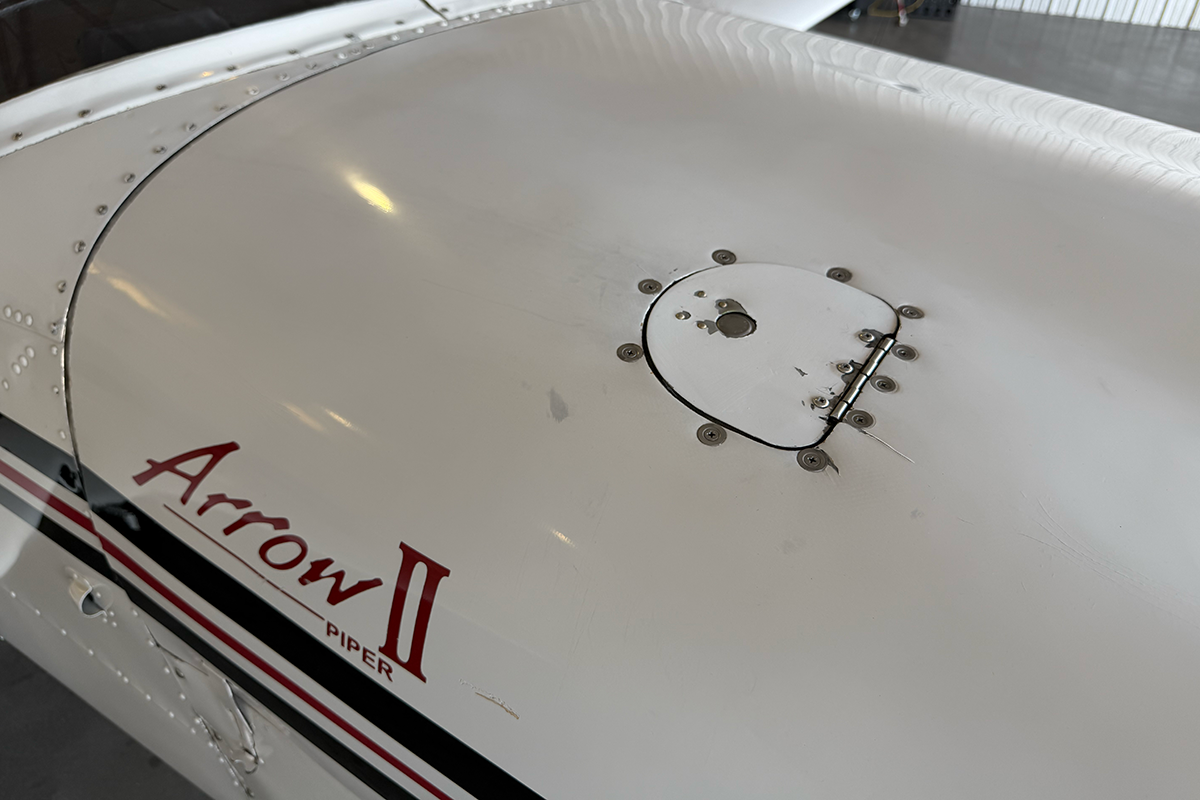

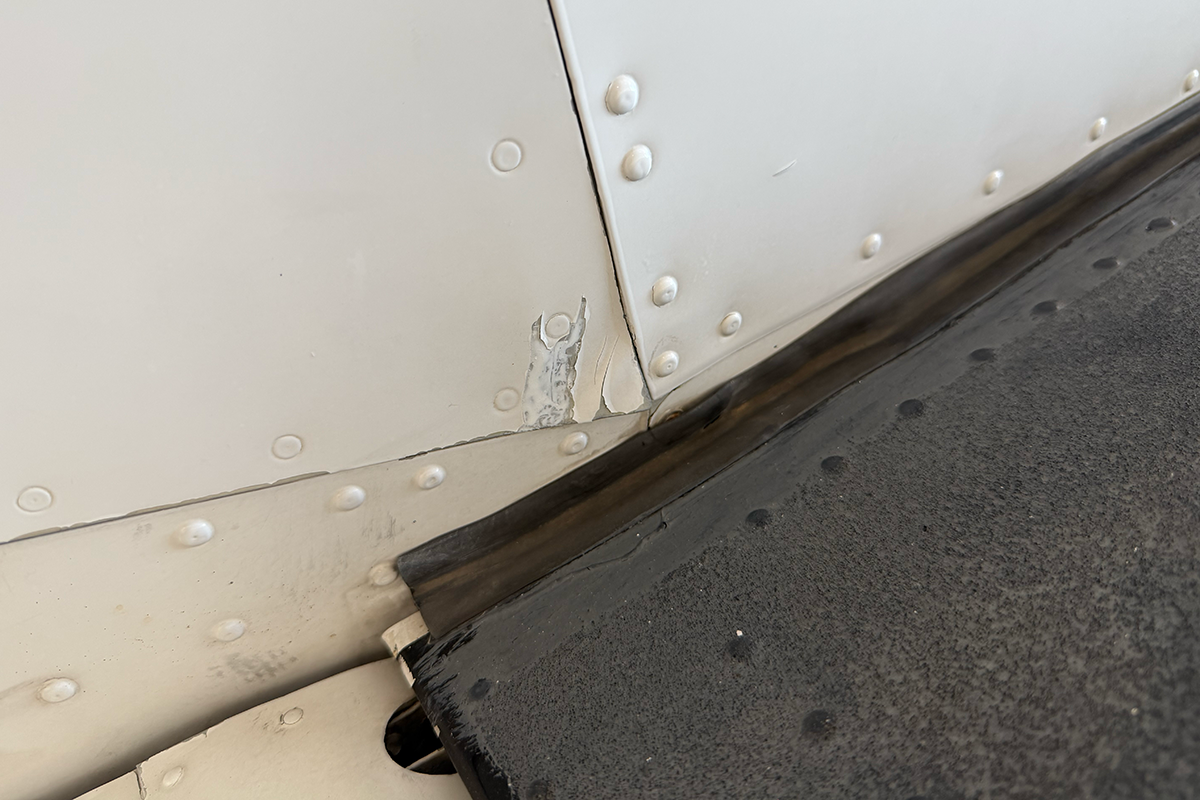

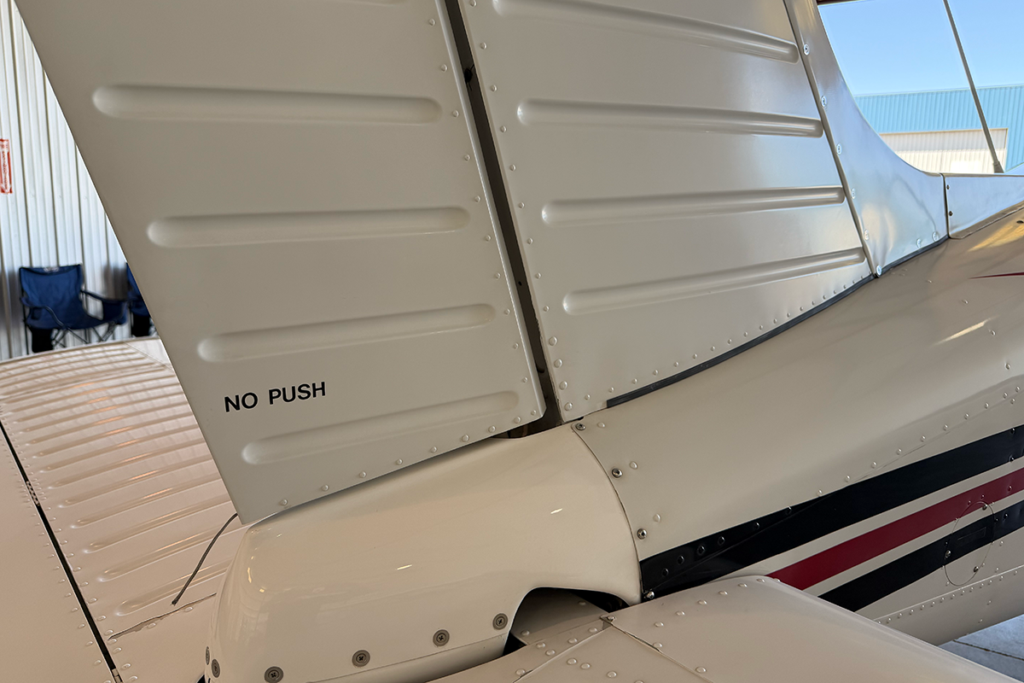

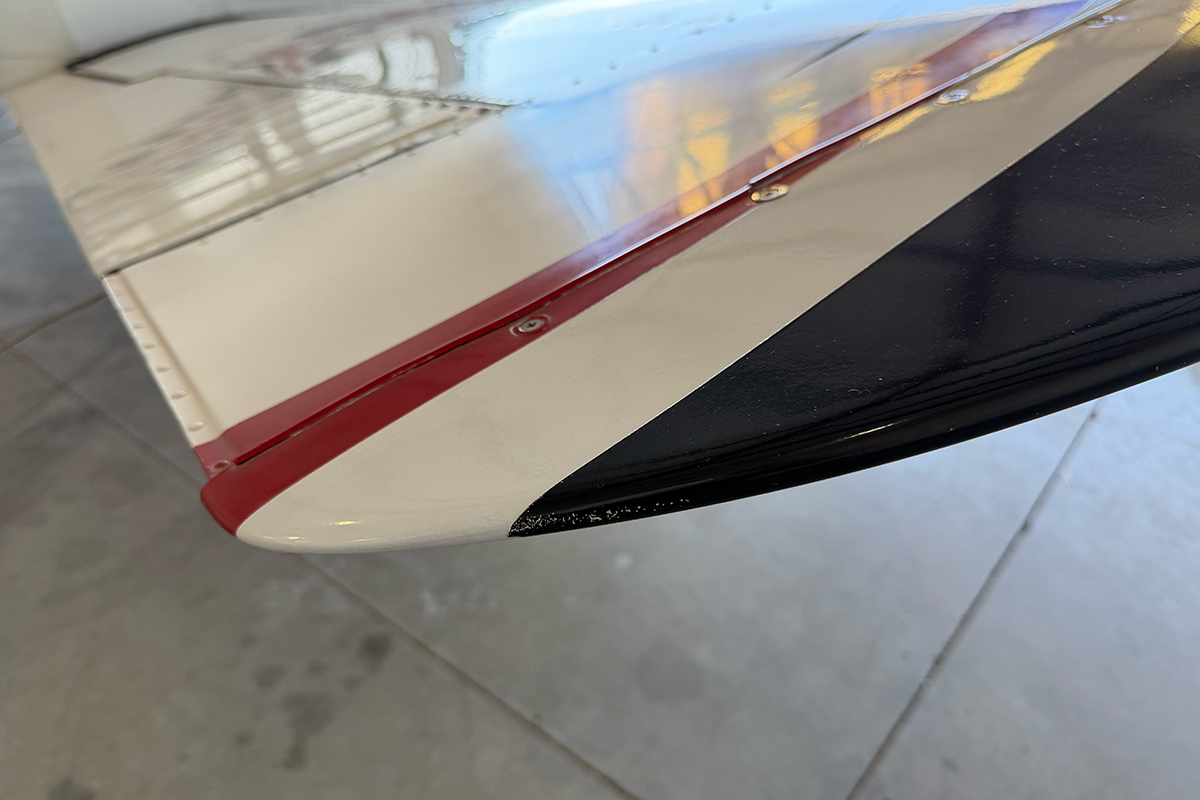

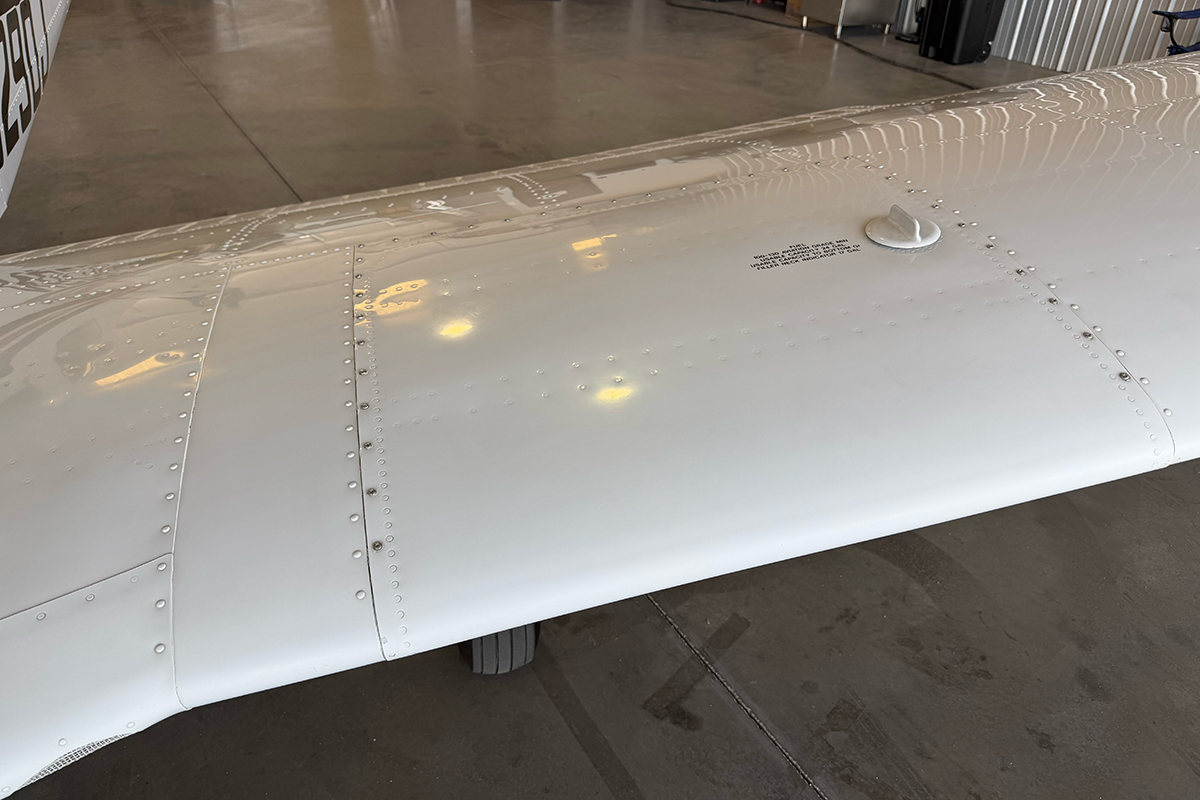

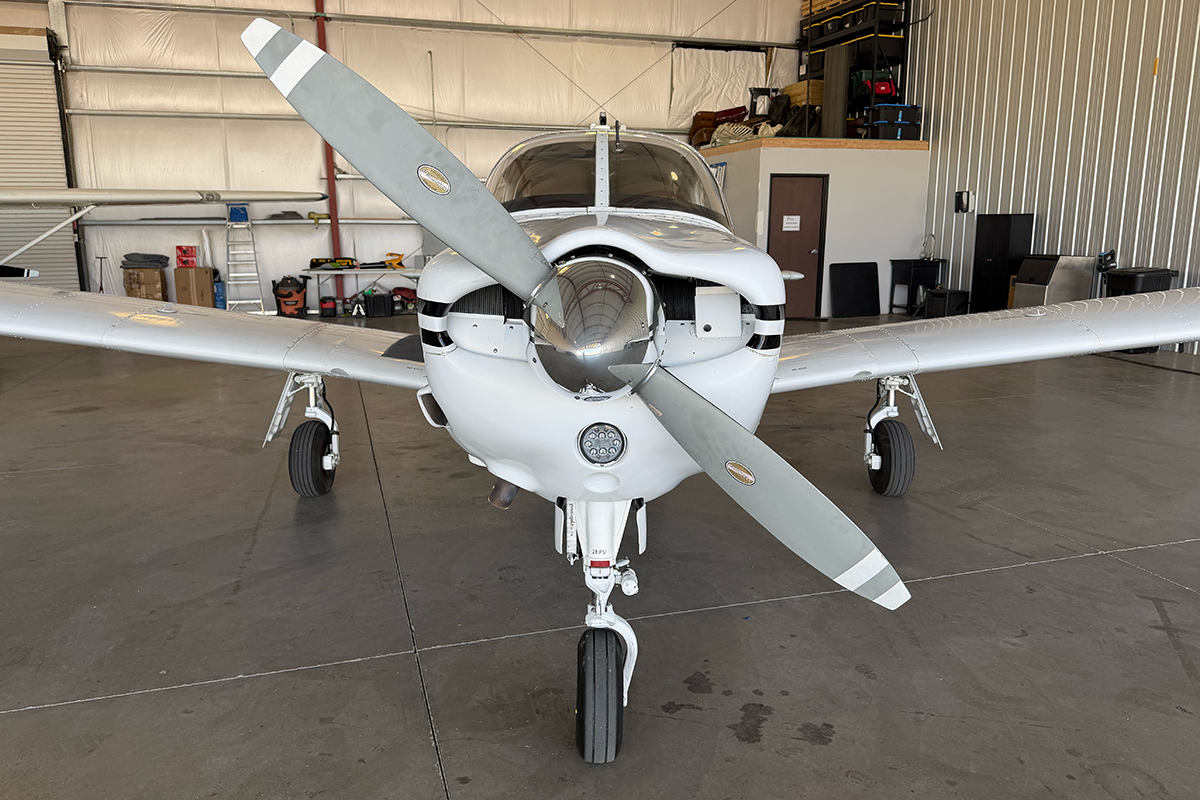

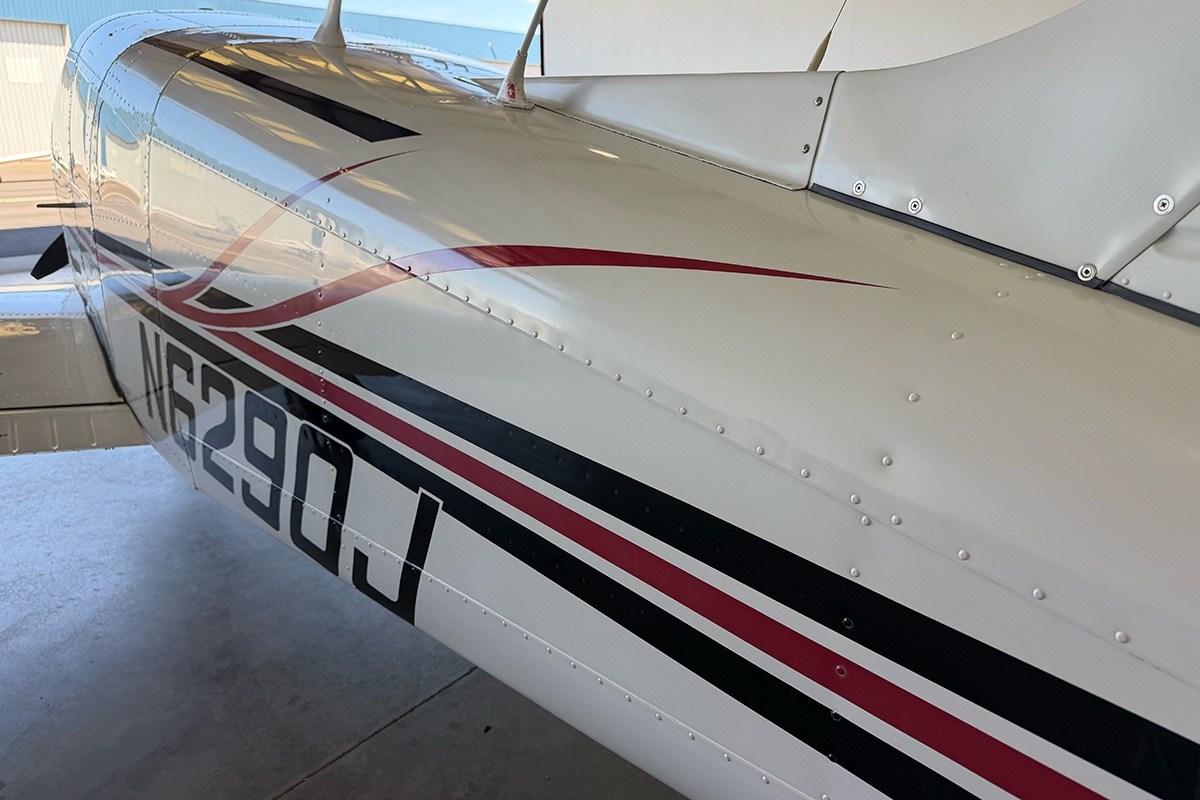

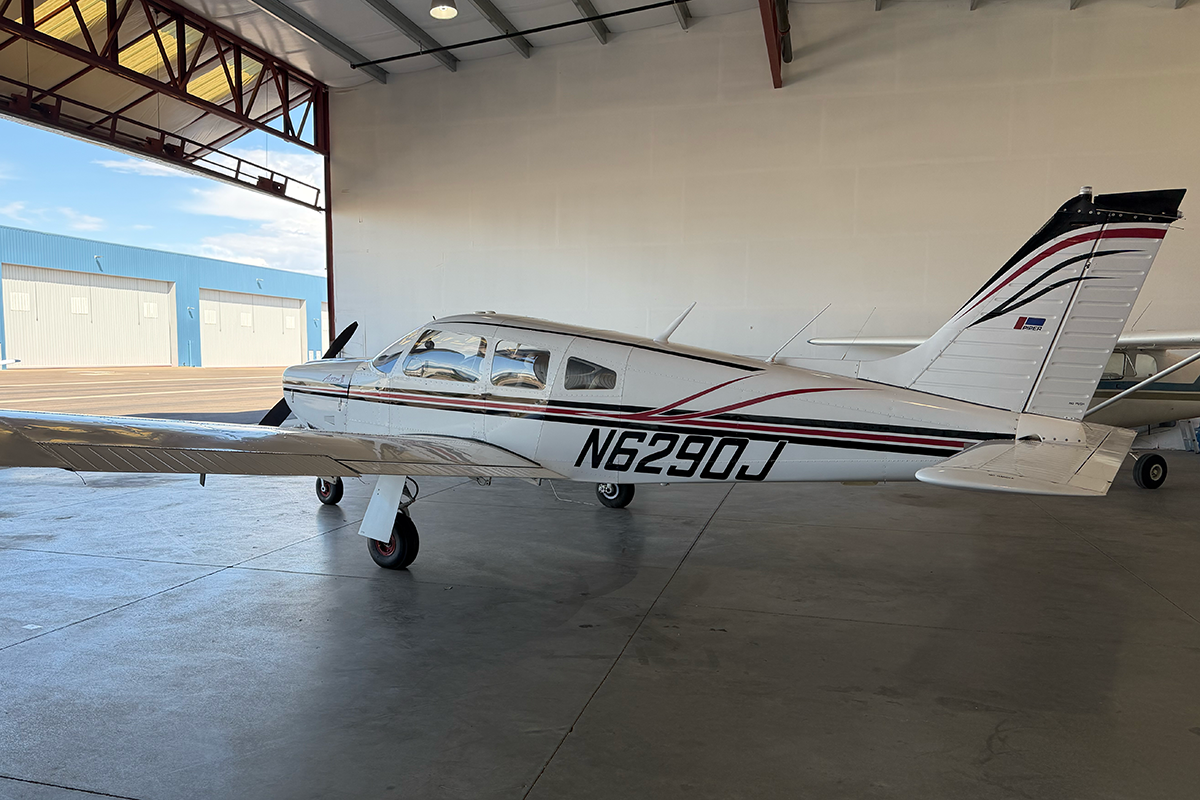

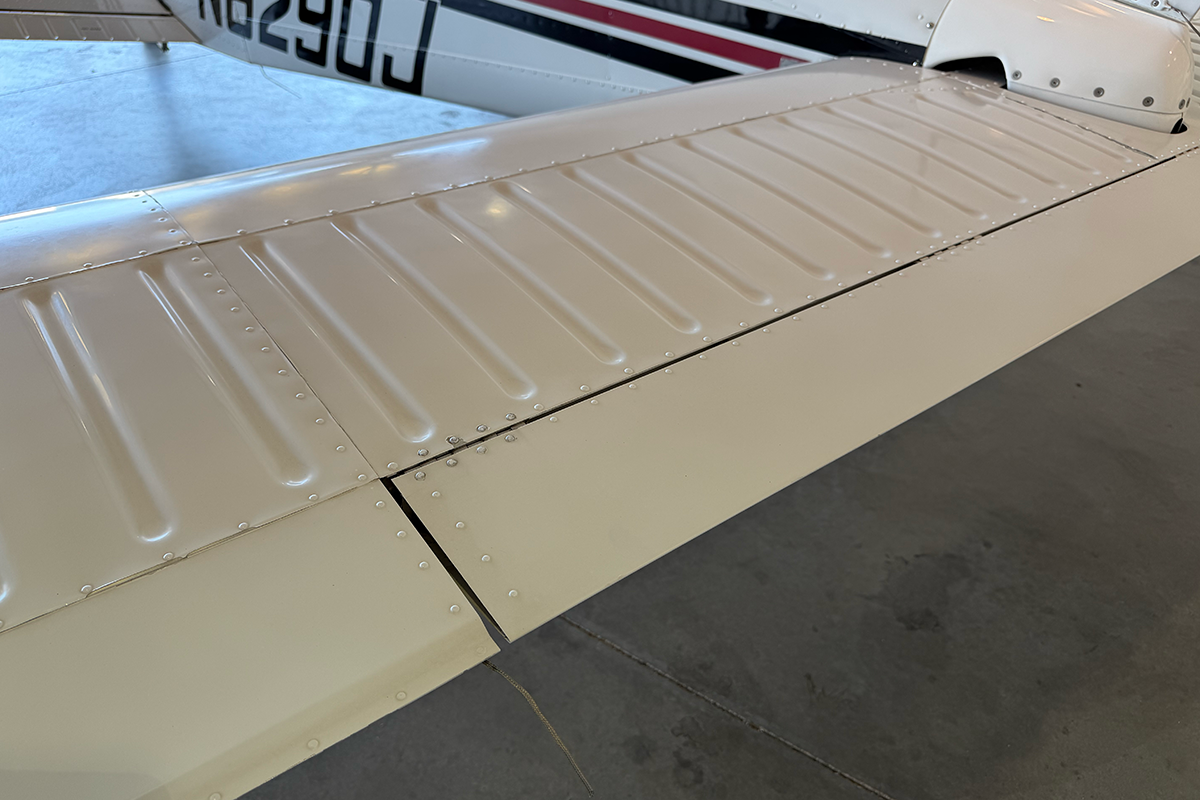

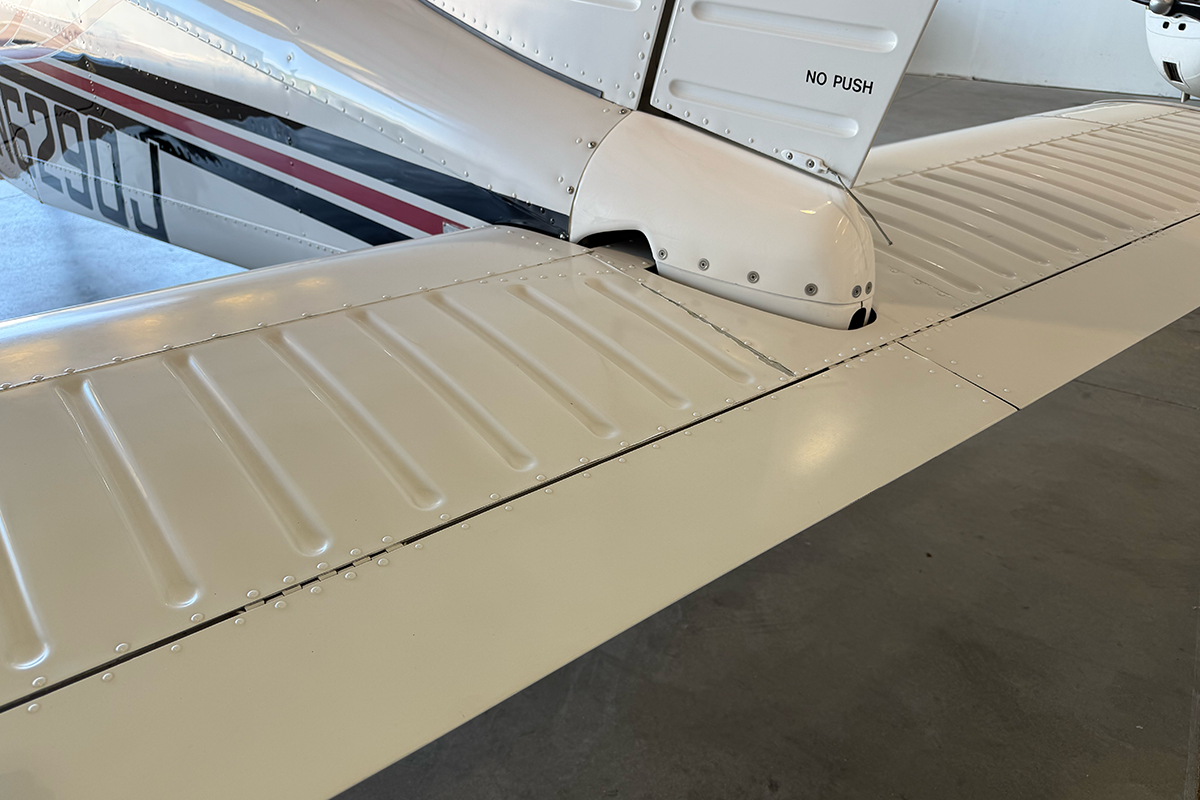

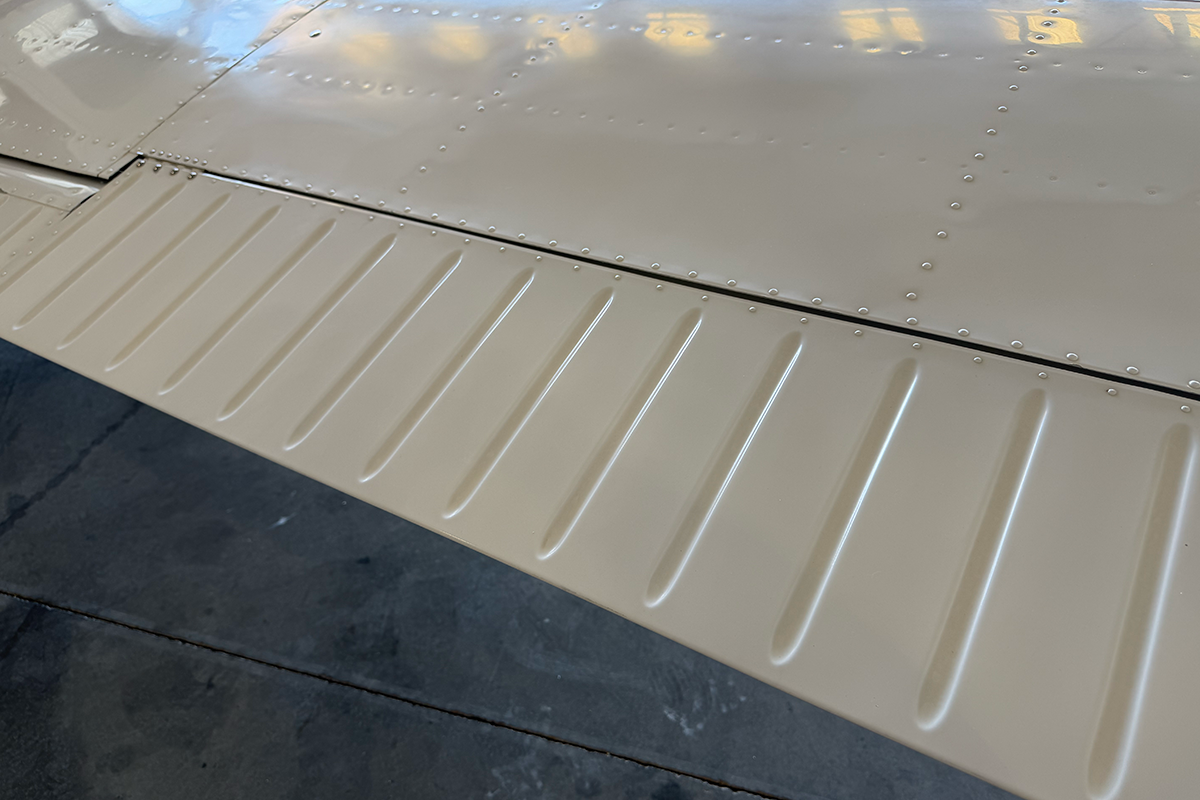

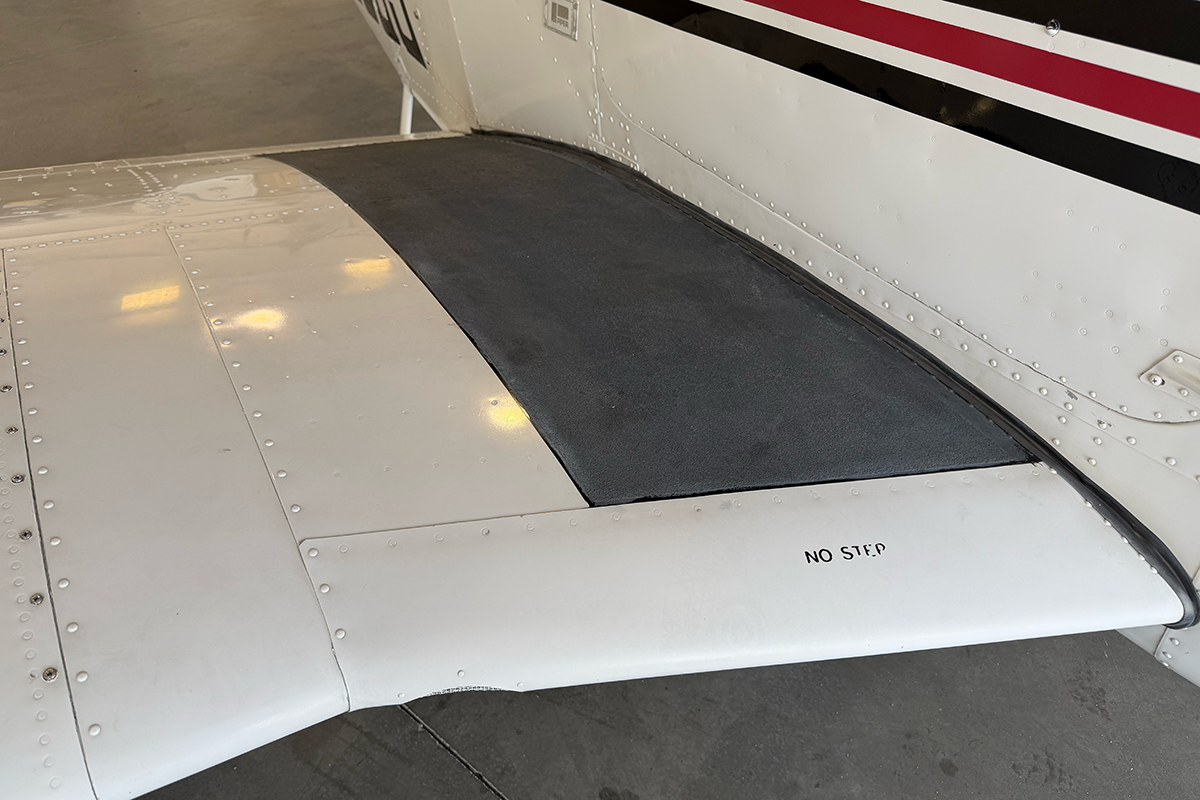

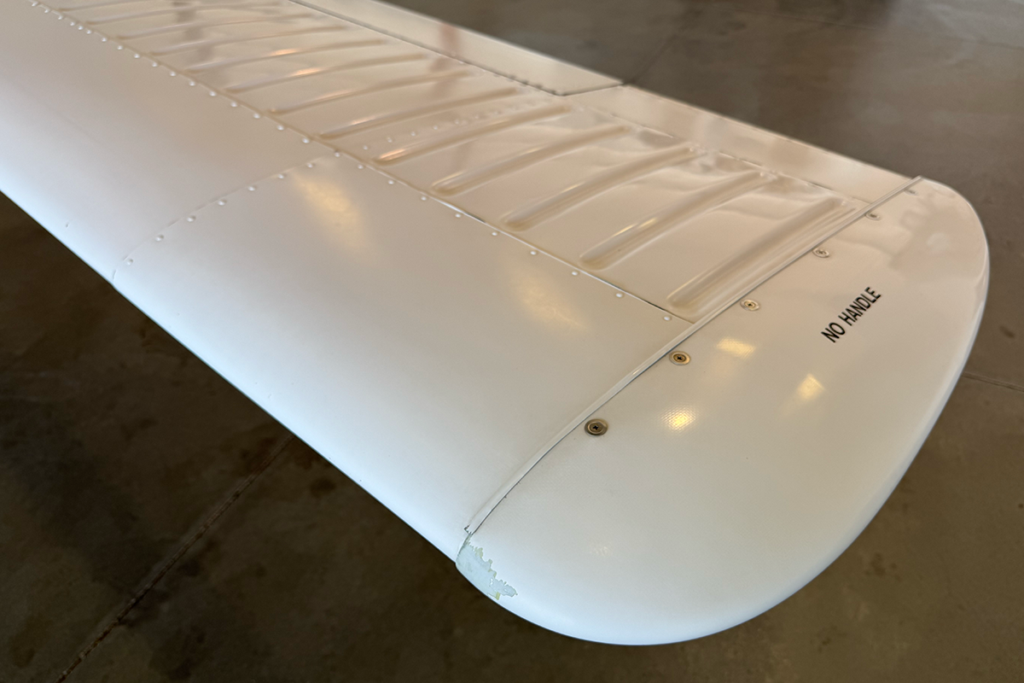

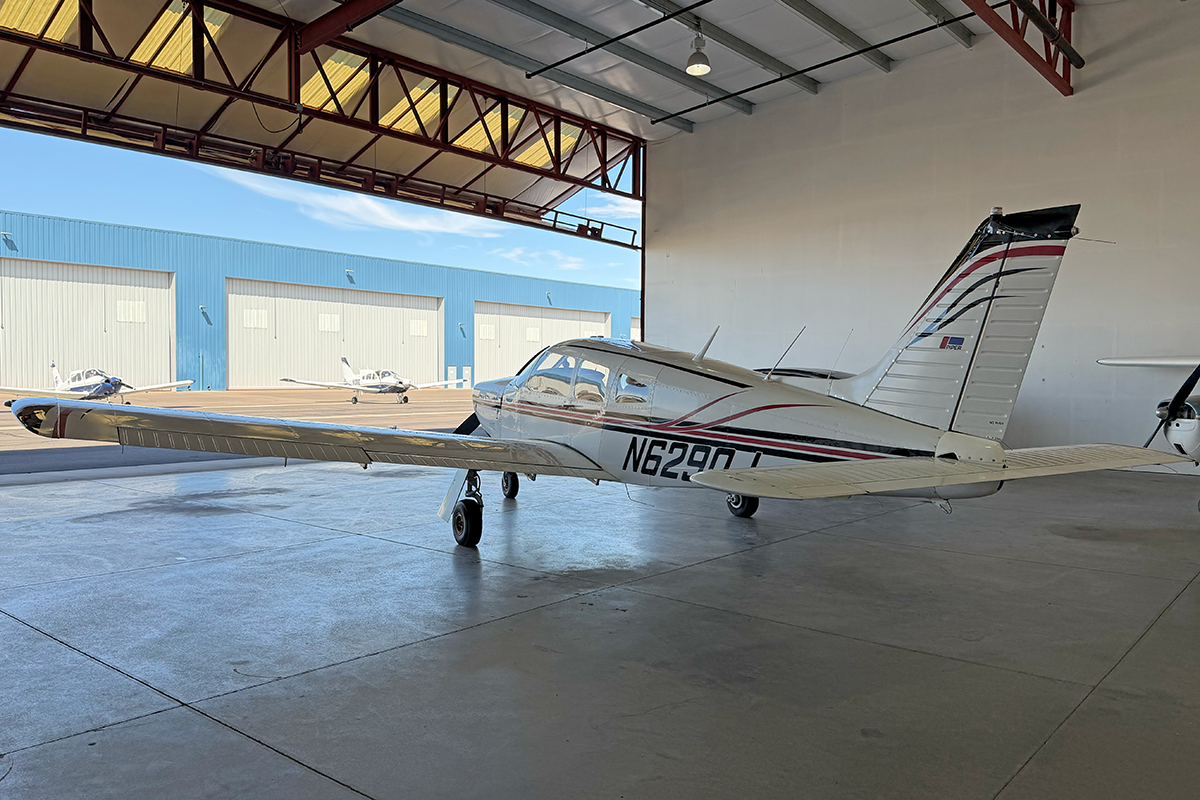

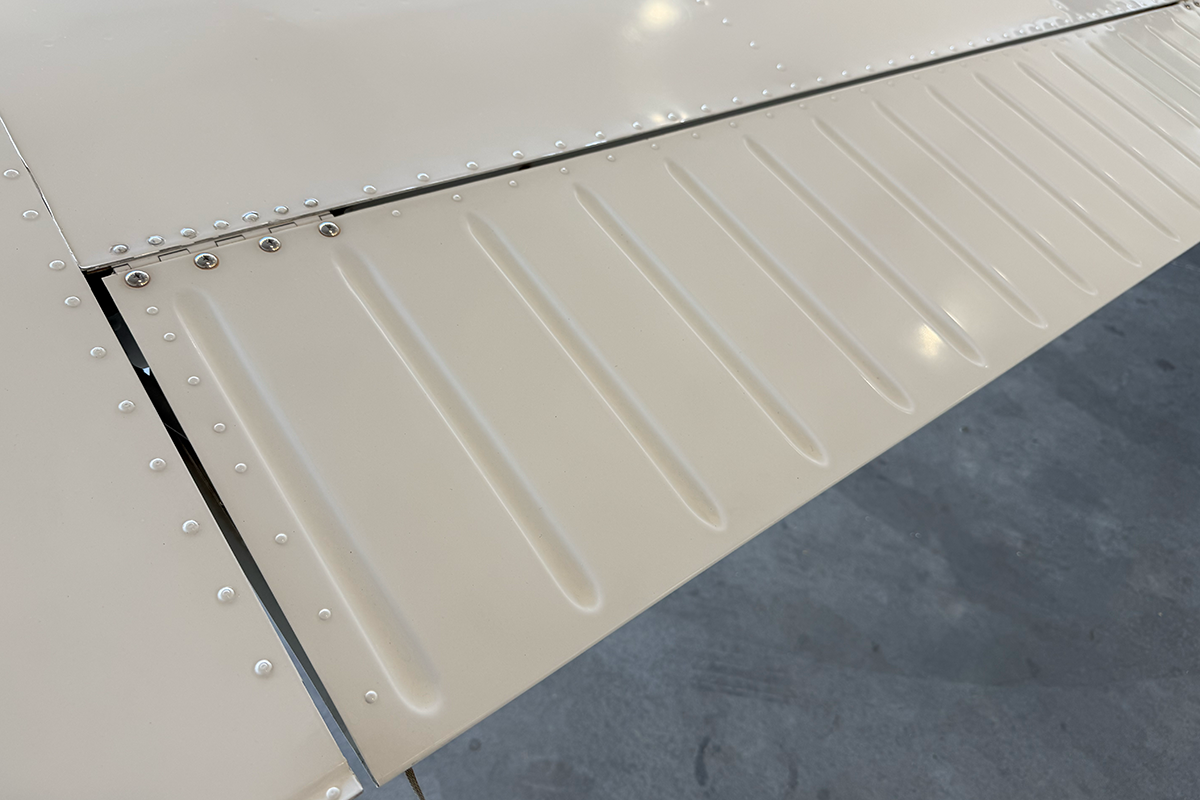

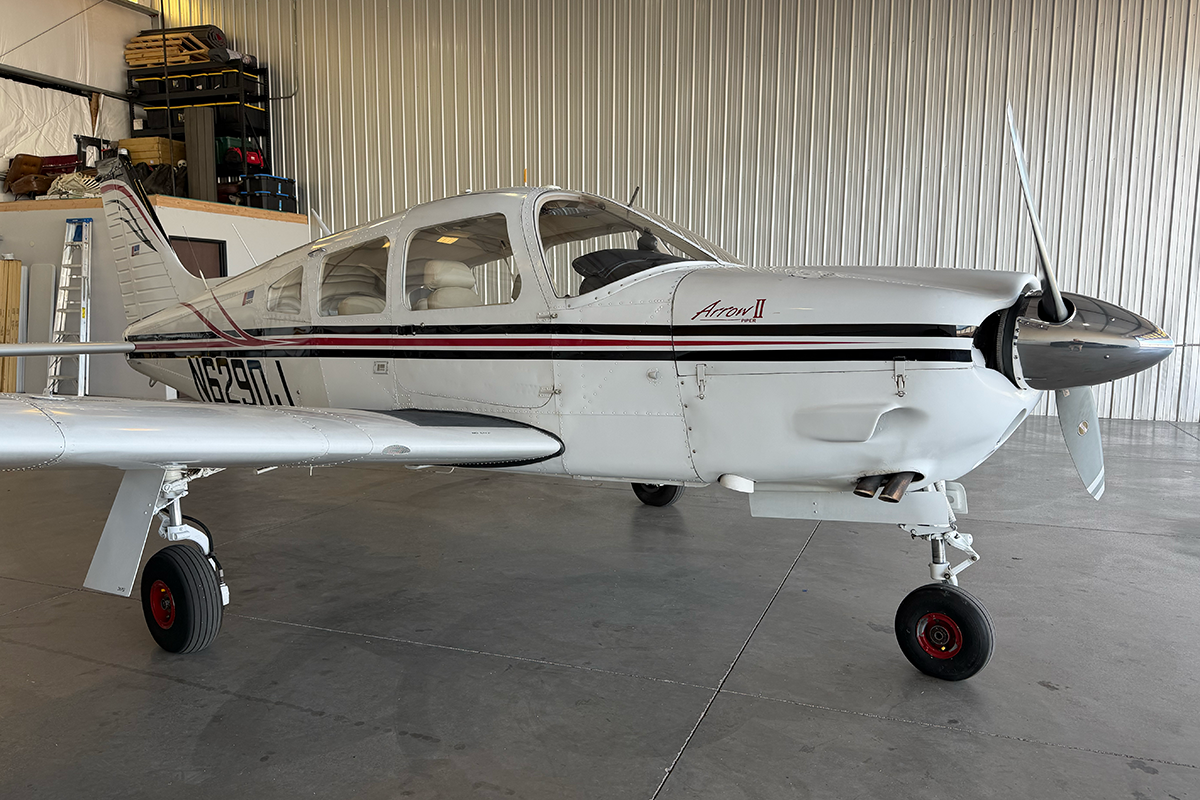

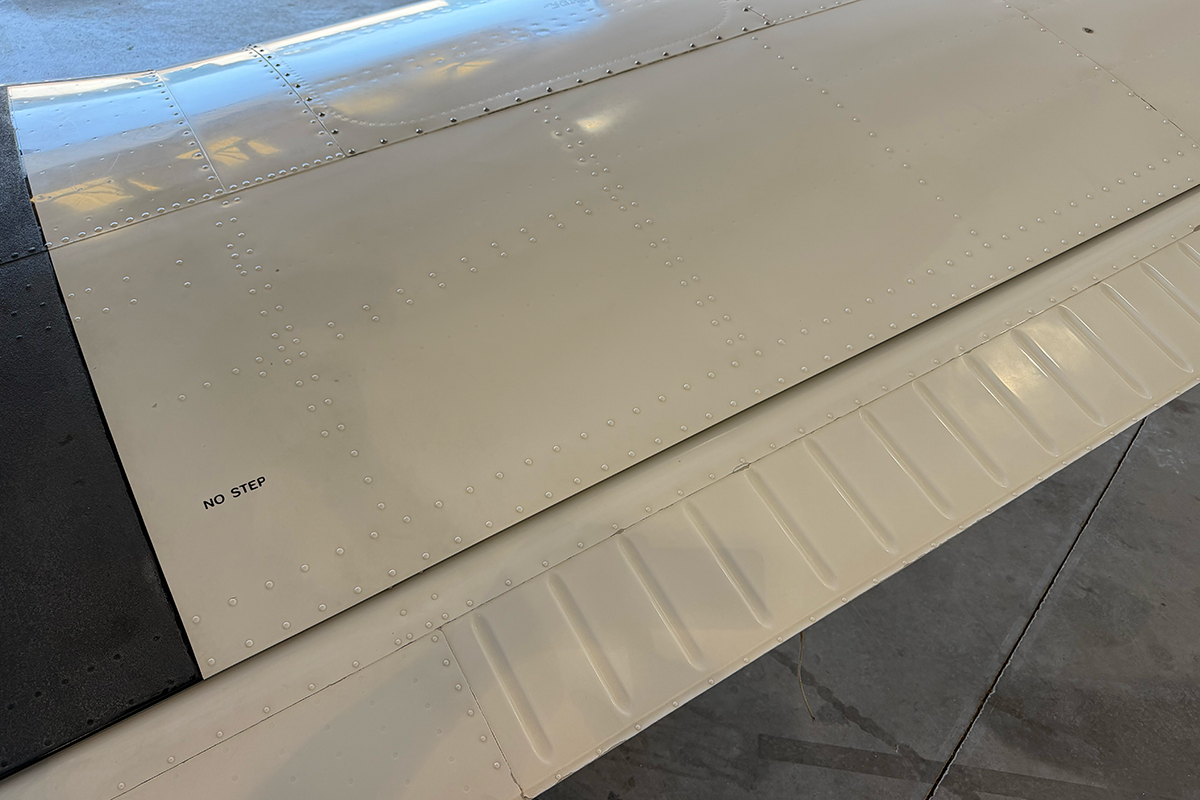

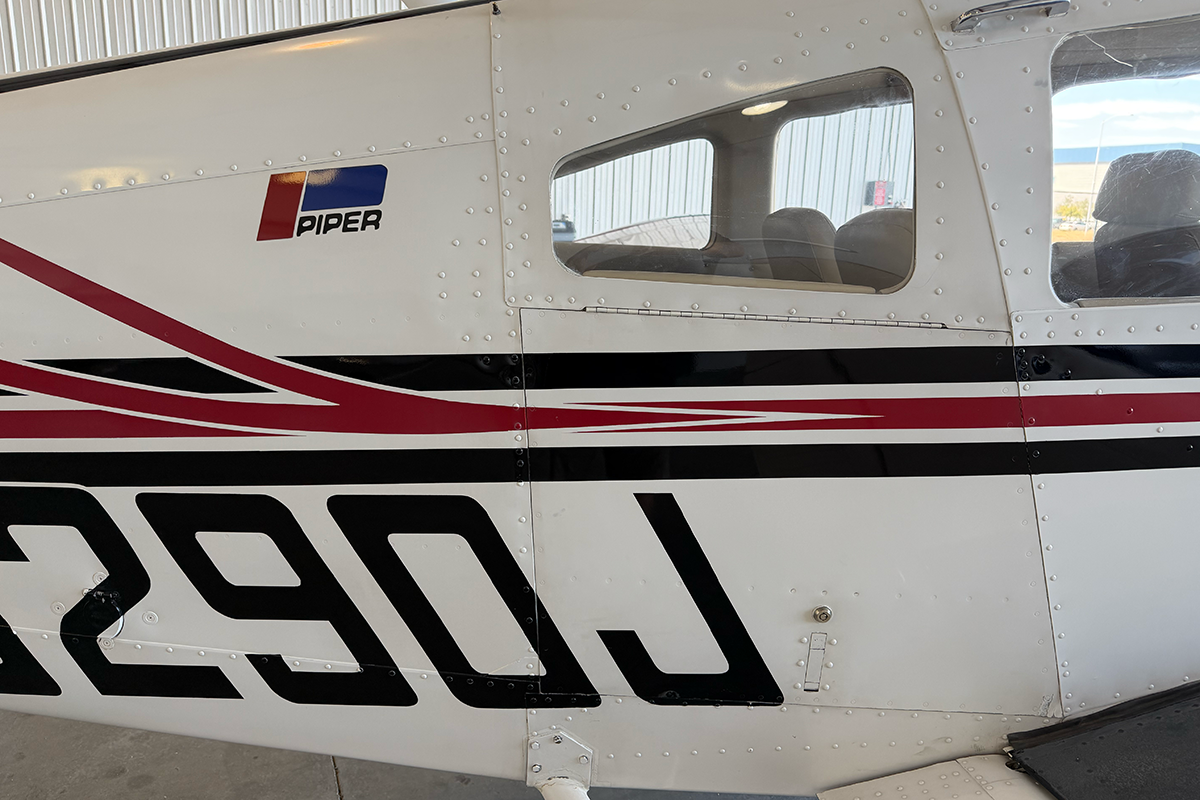

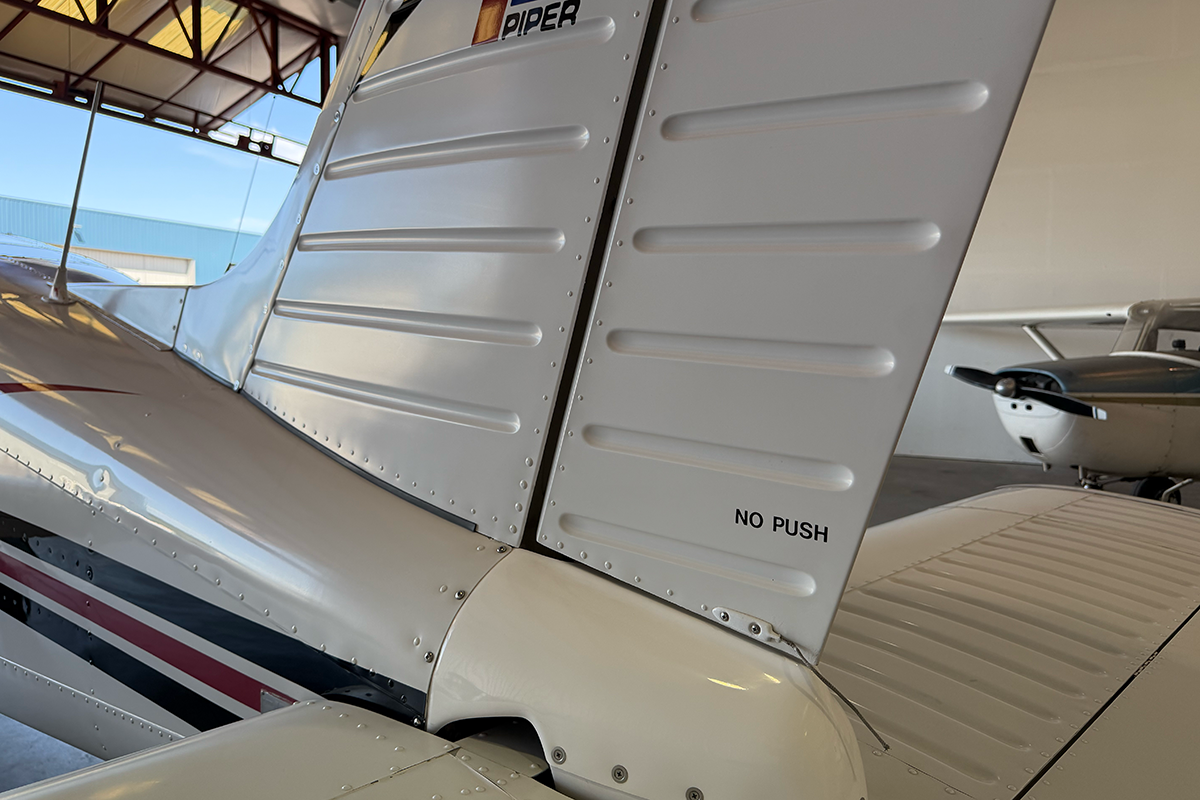

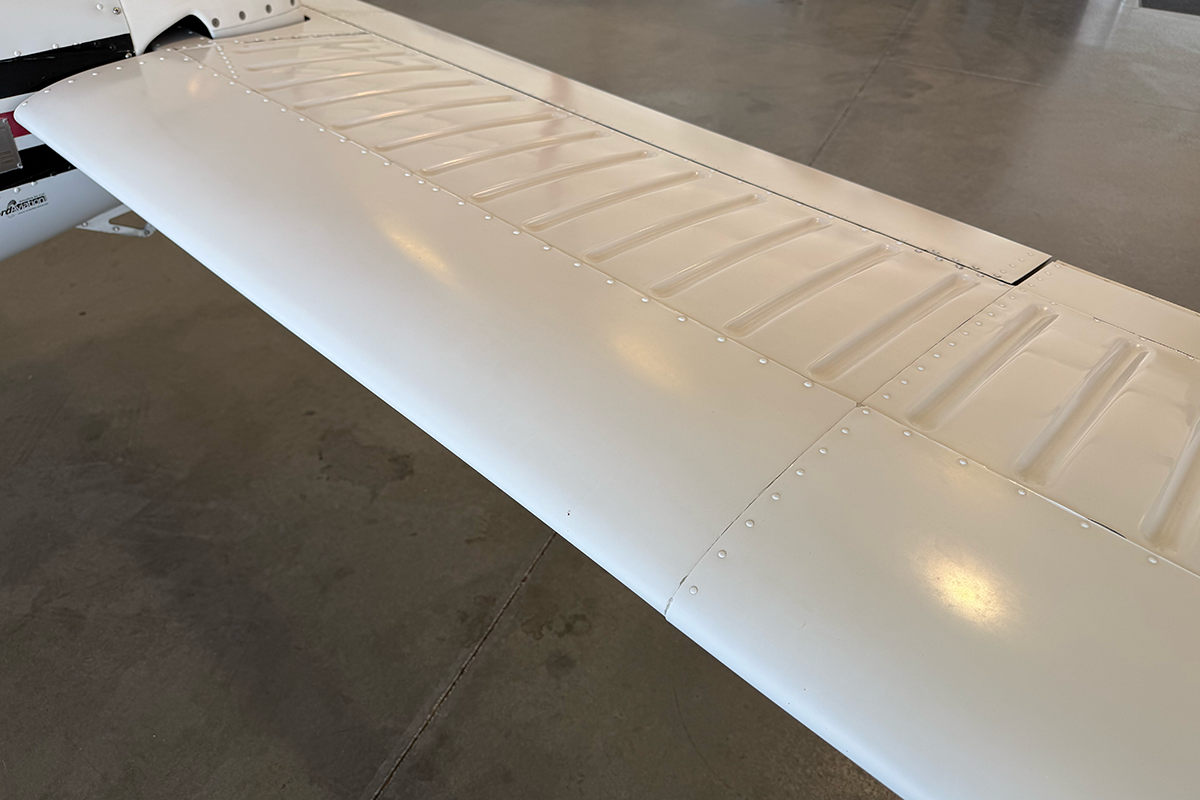

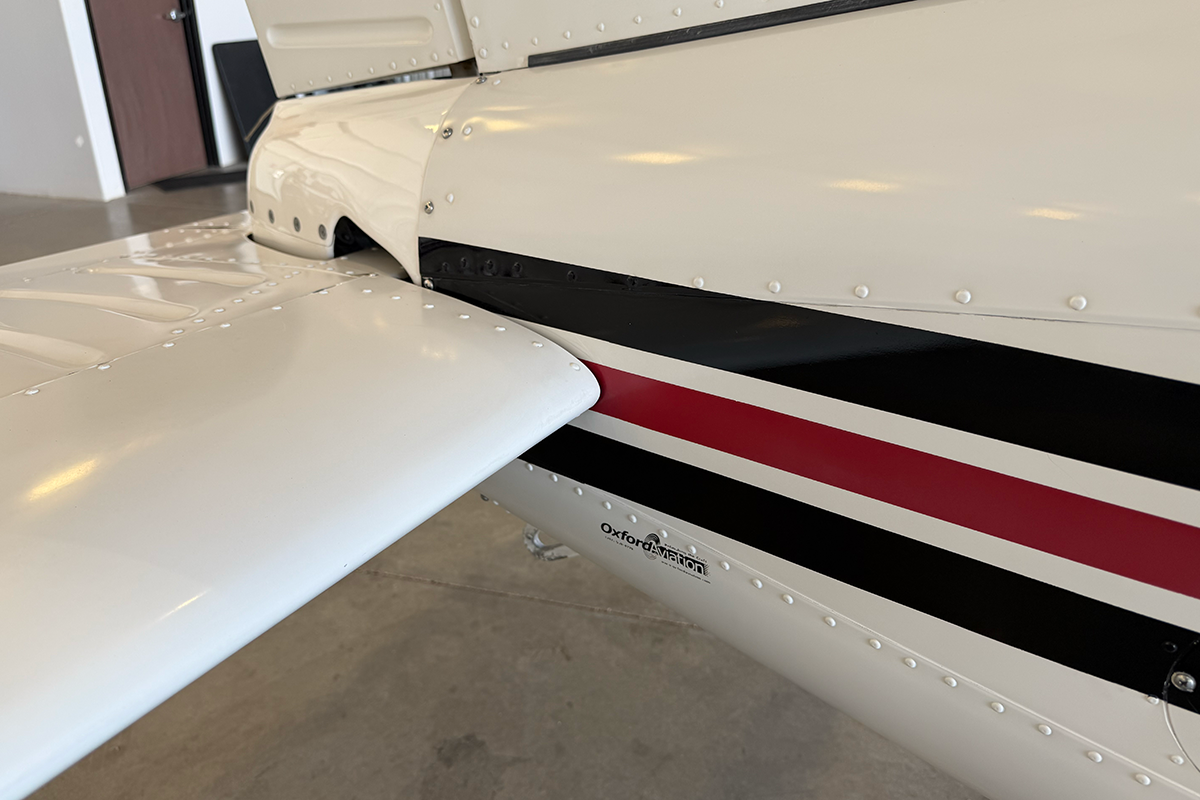

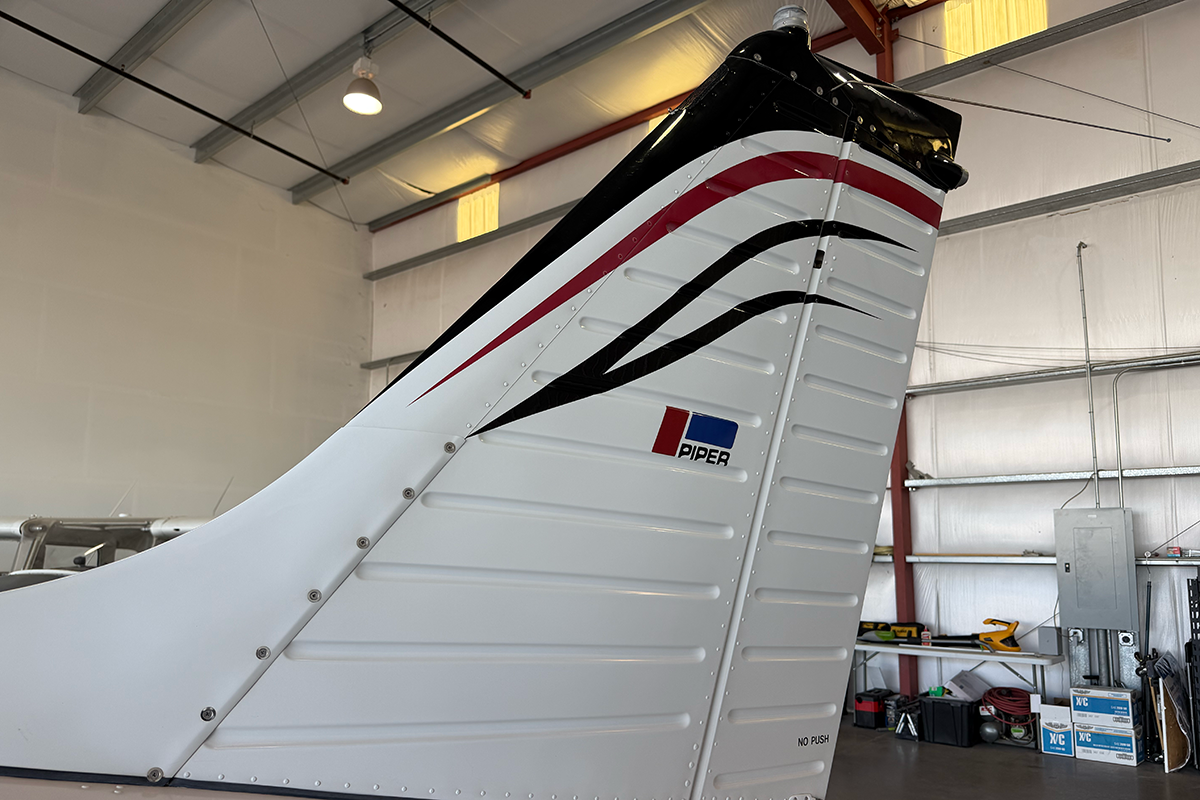

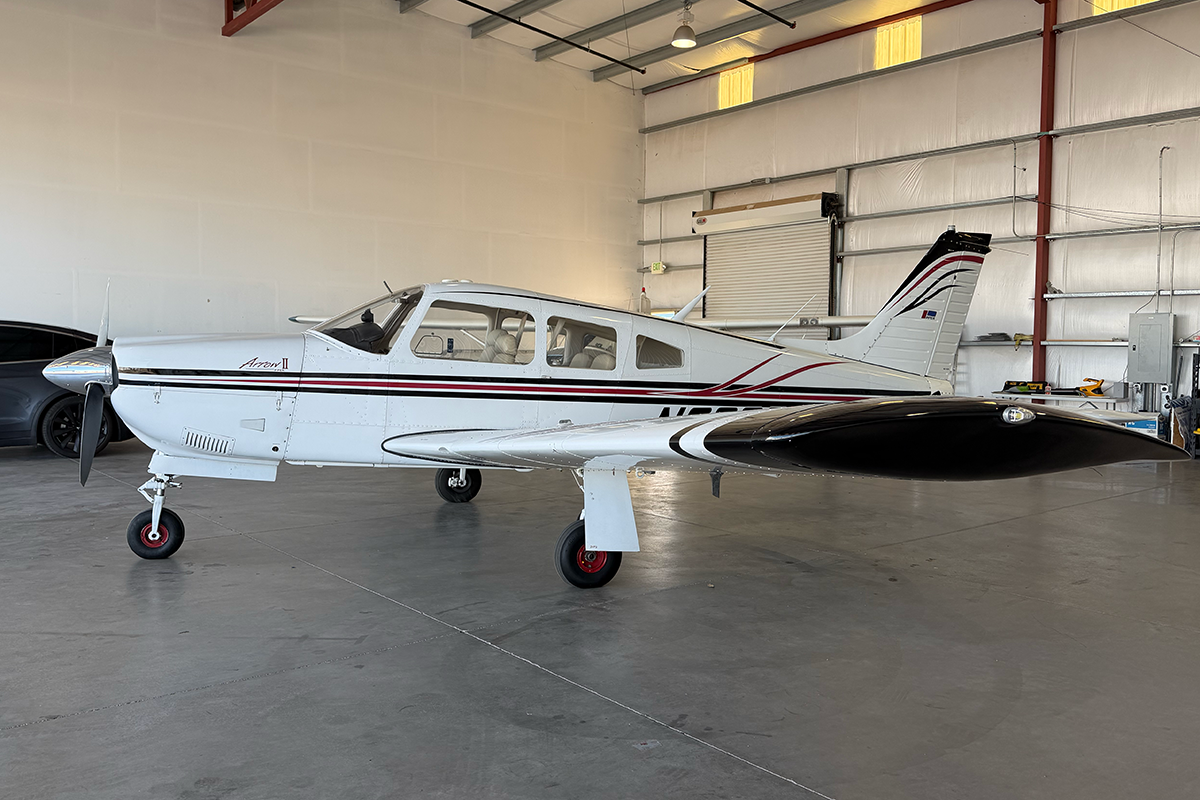

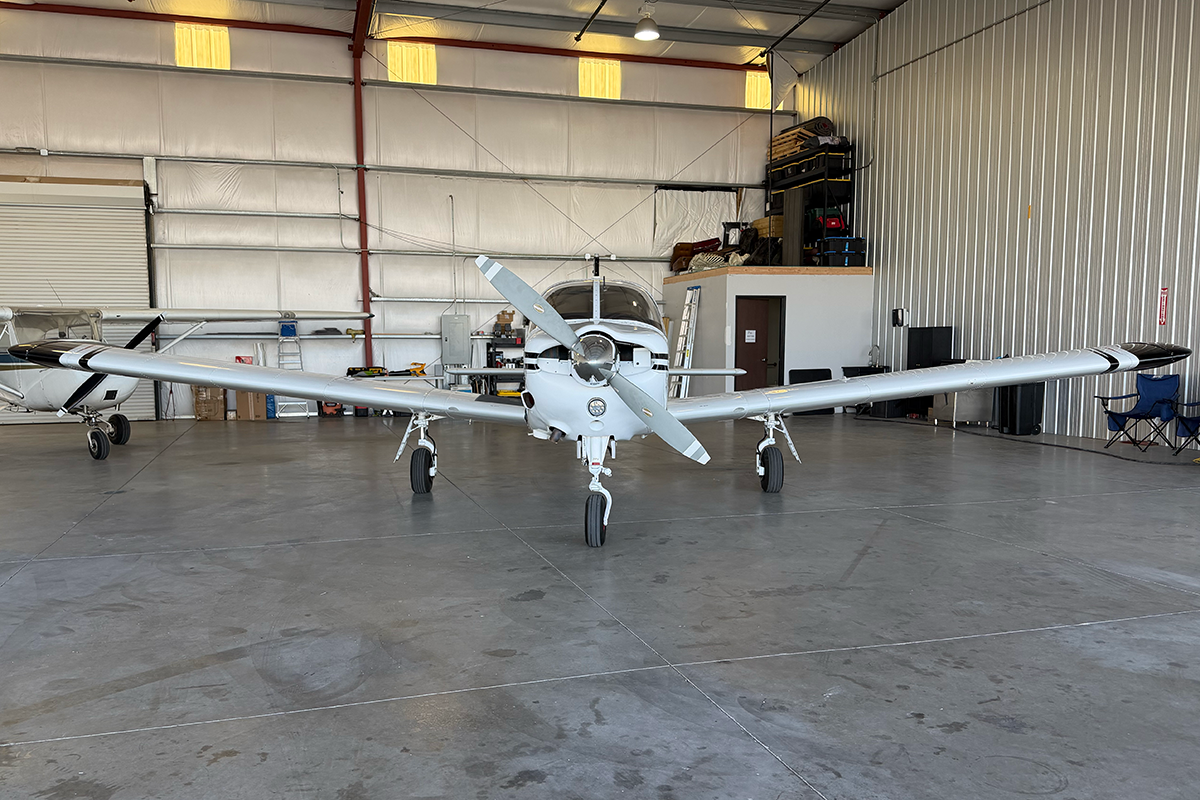

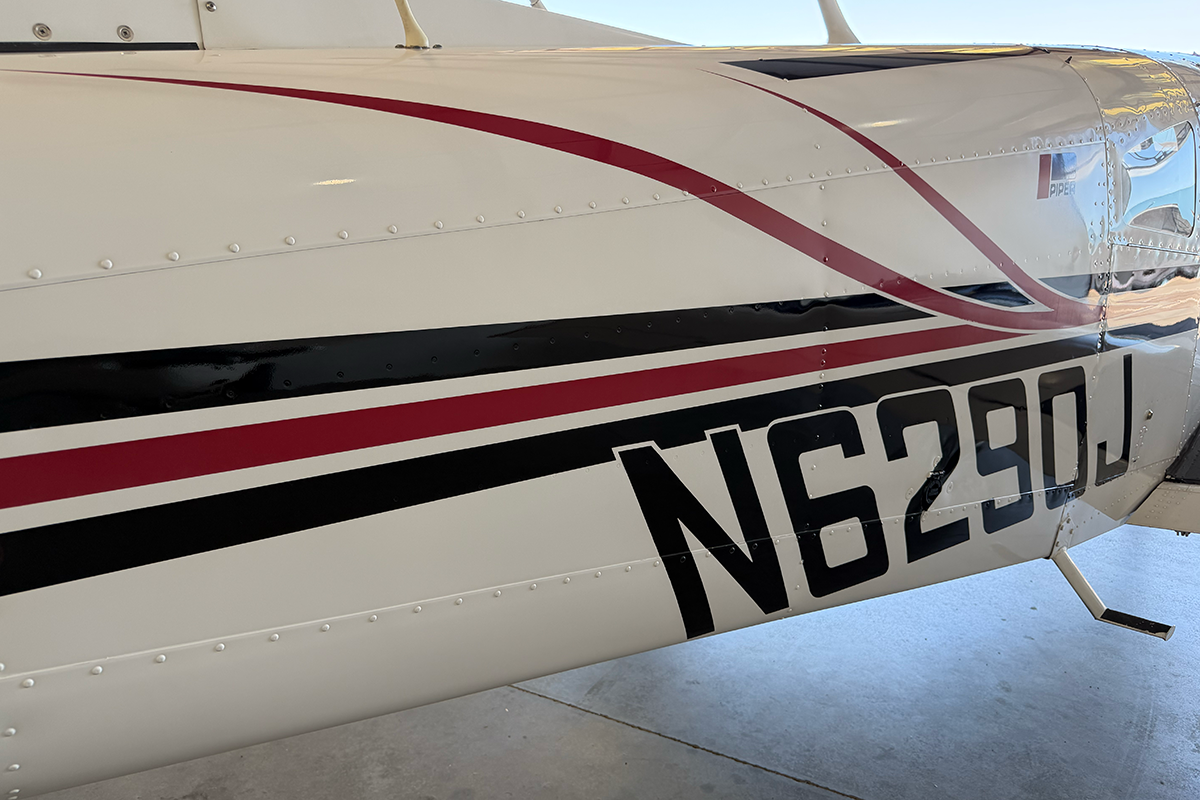

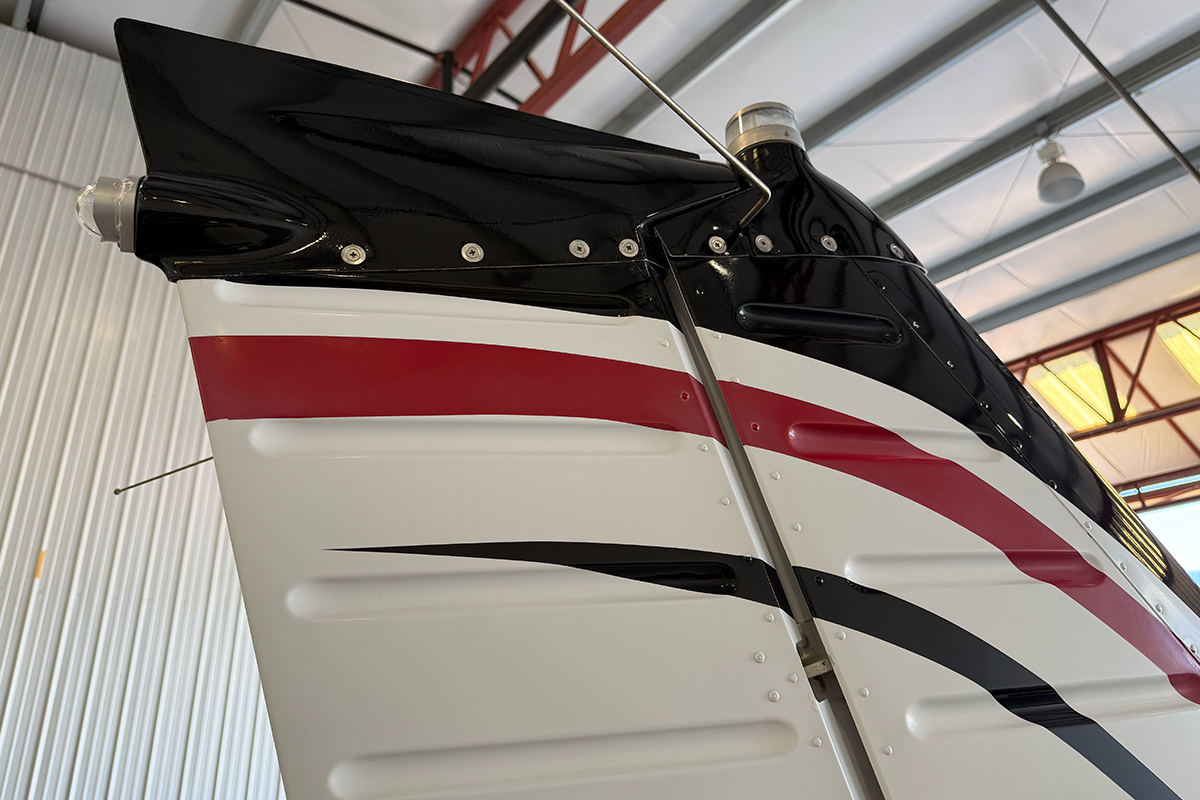

Exterior - Overall, Piper Arrow N6290J presents well and looks good on the exterior. During the intake process, I saw no aluminum damage or issues. Leading and trailing edges of the wings and tail look nice. The paint shows some aging, but has lots of life left and still looks nice. There are several areas where very minor paint cracks and chips are visible, as one may expect for an aircraft of this vintage.

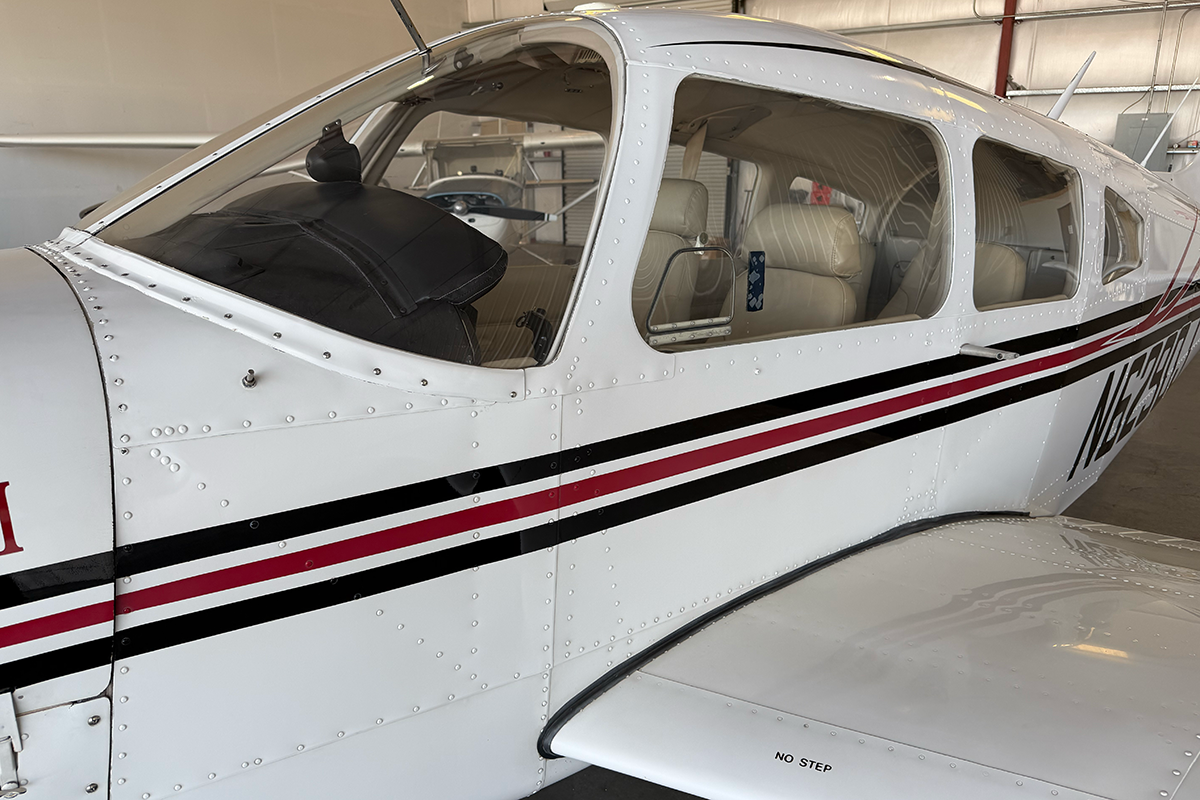

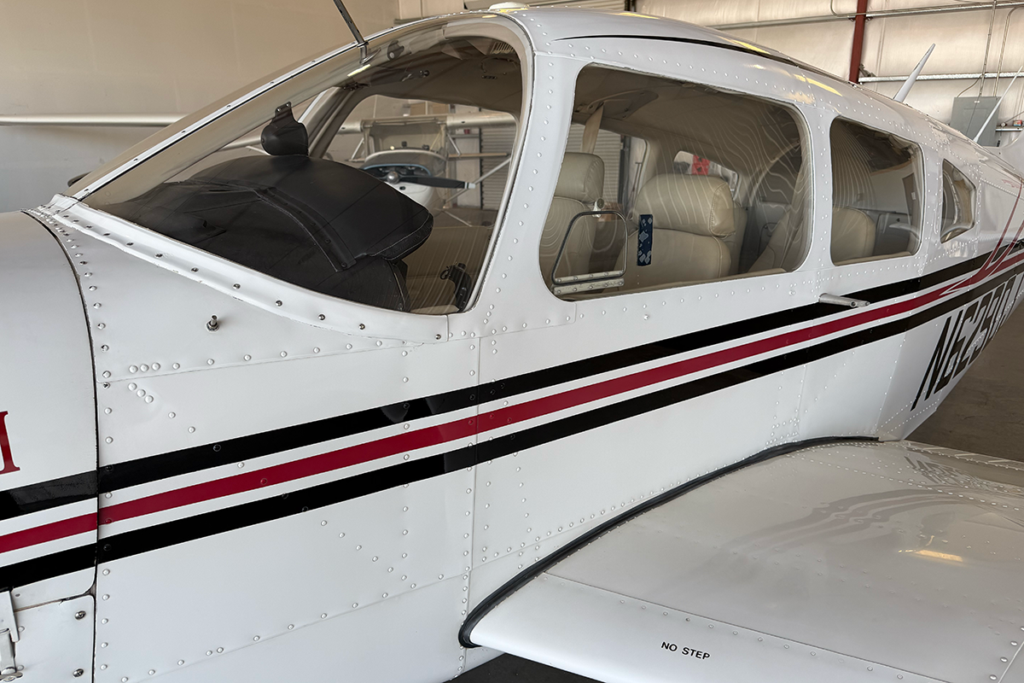

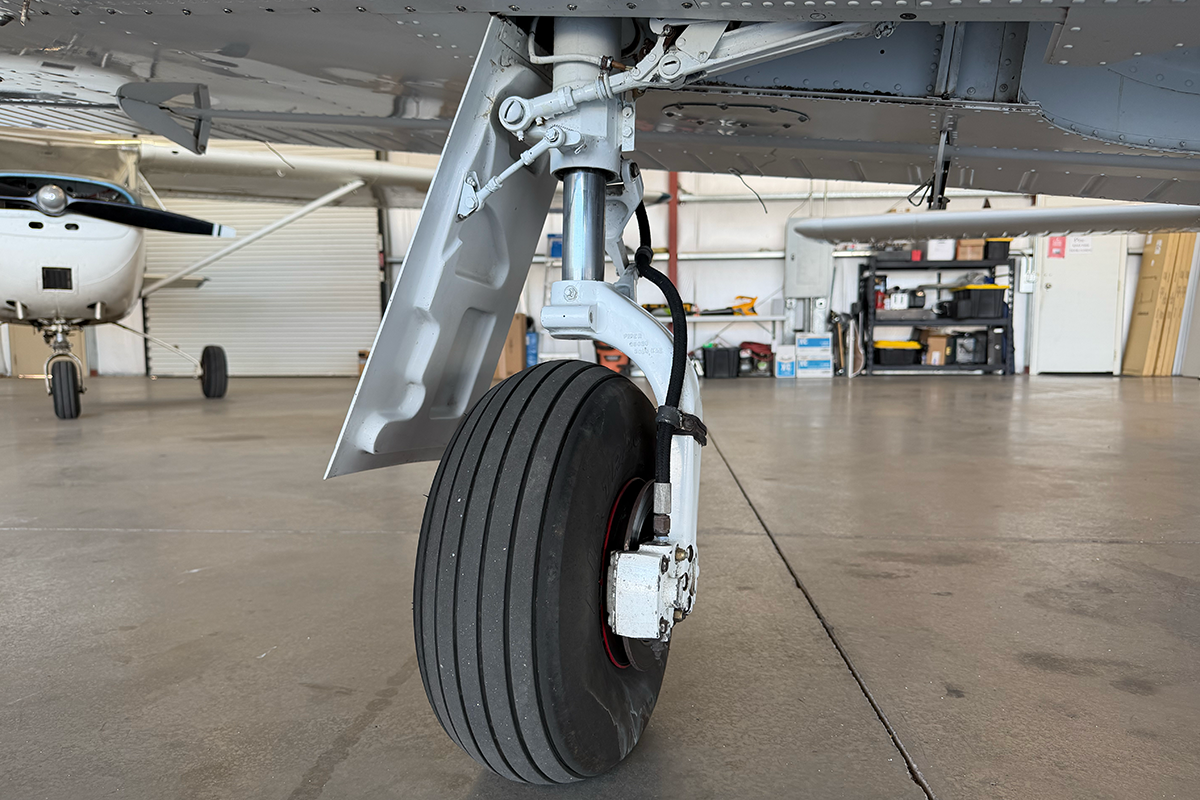

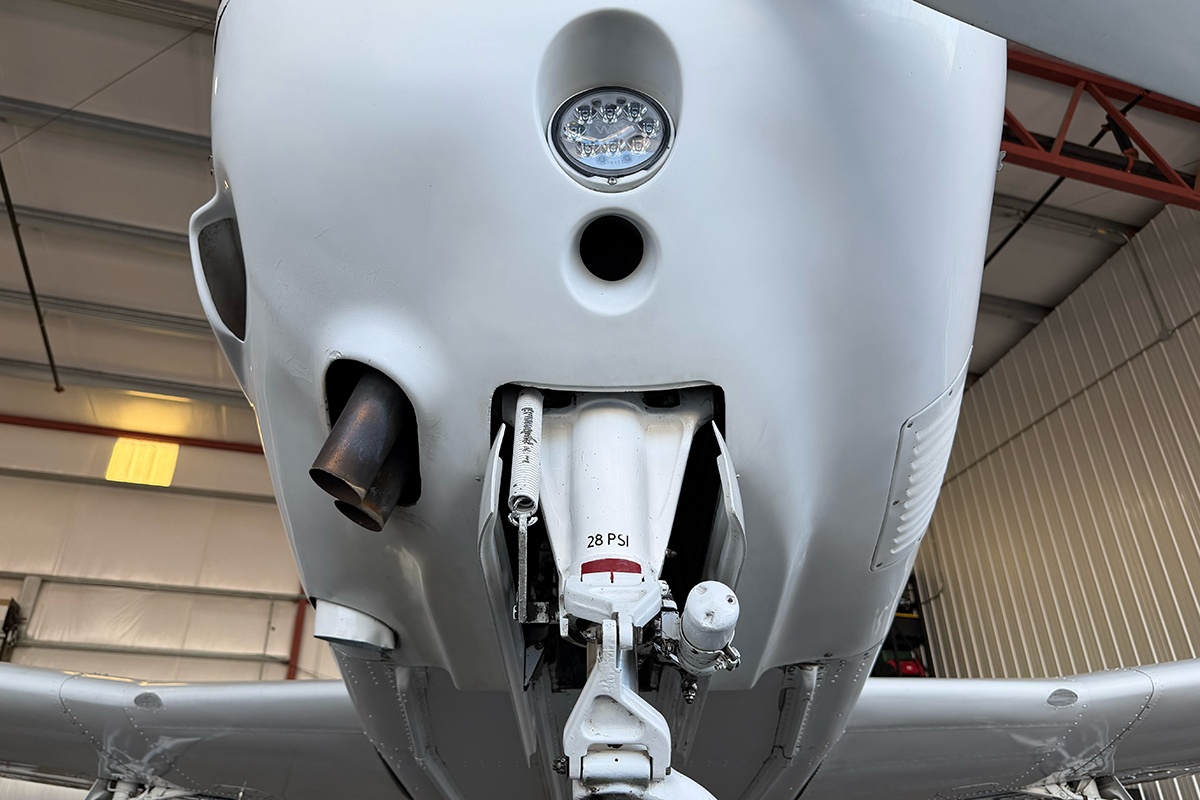

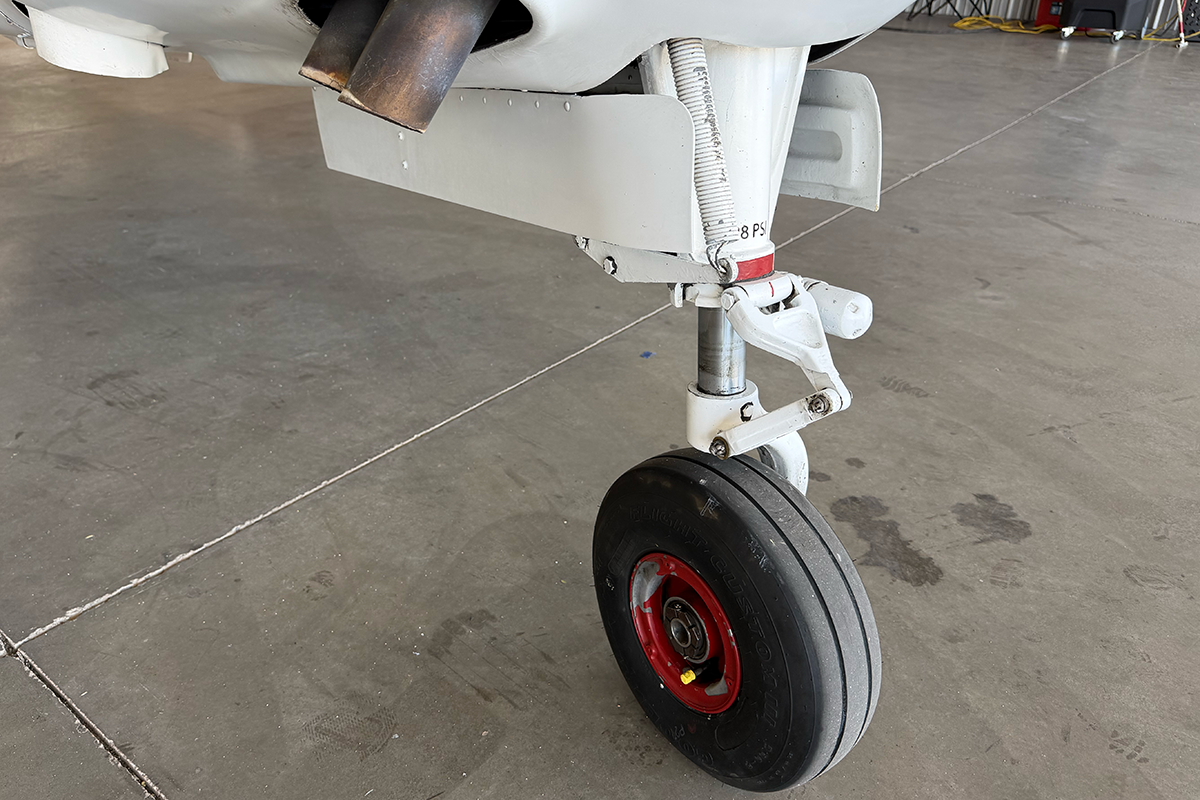

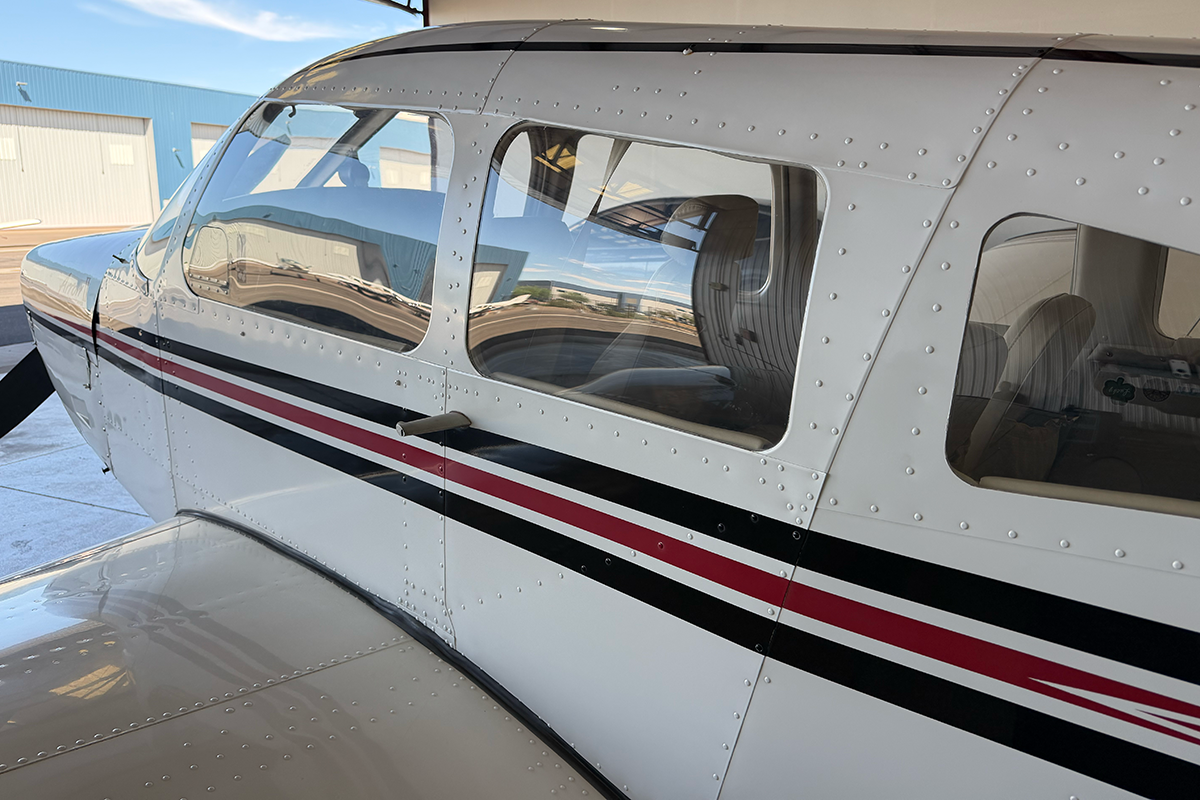

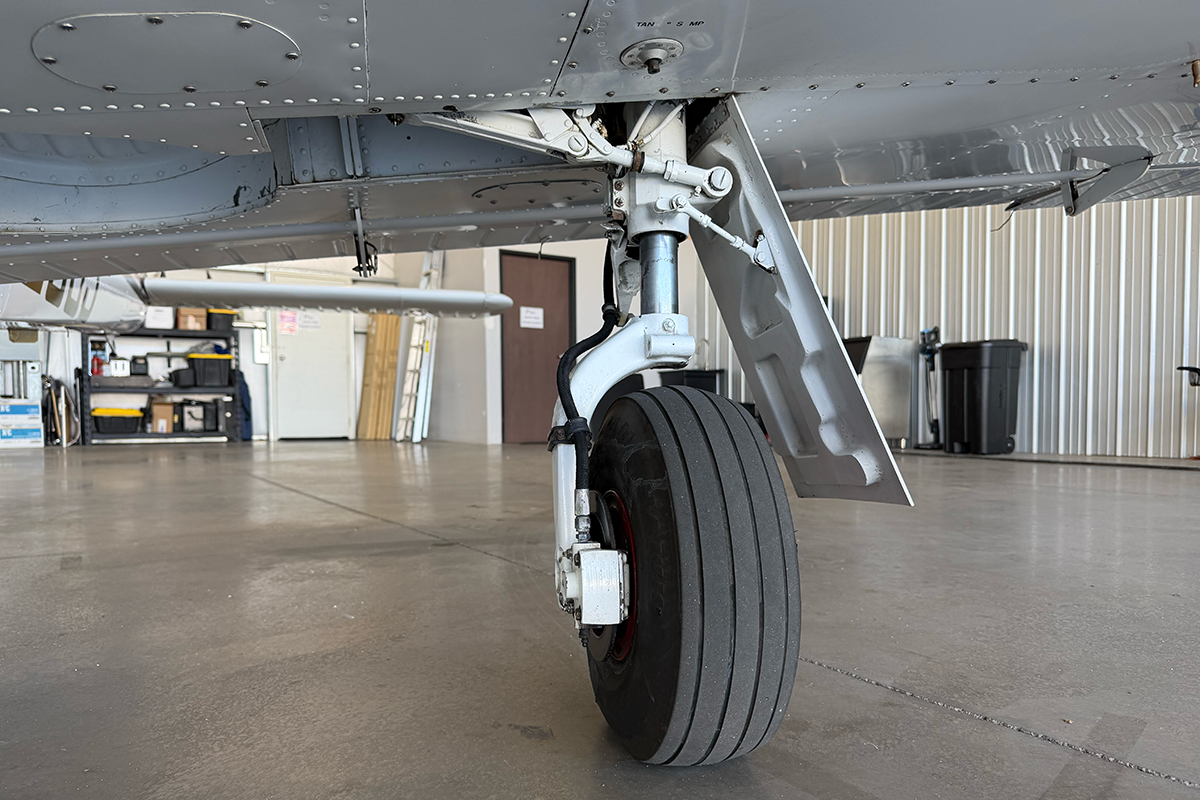

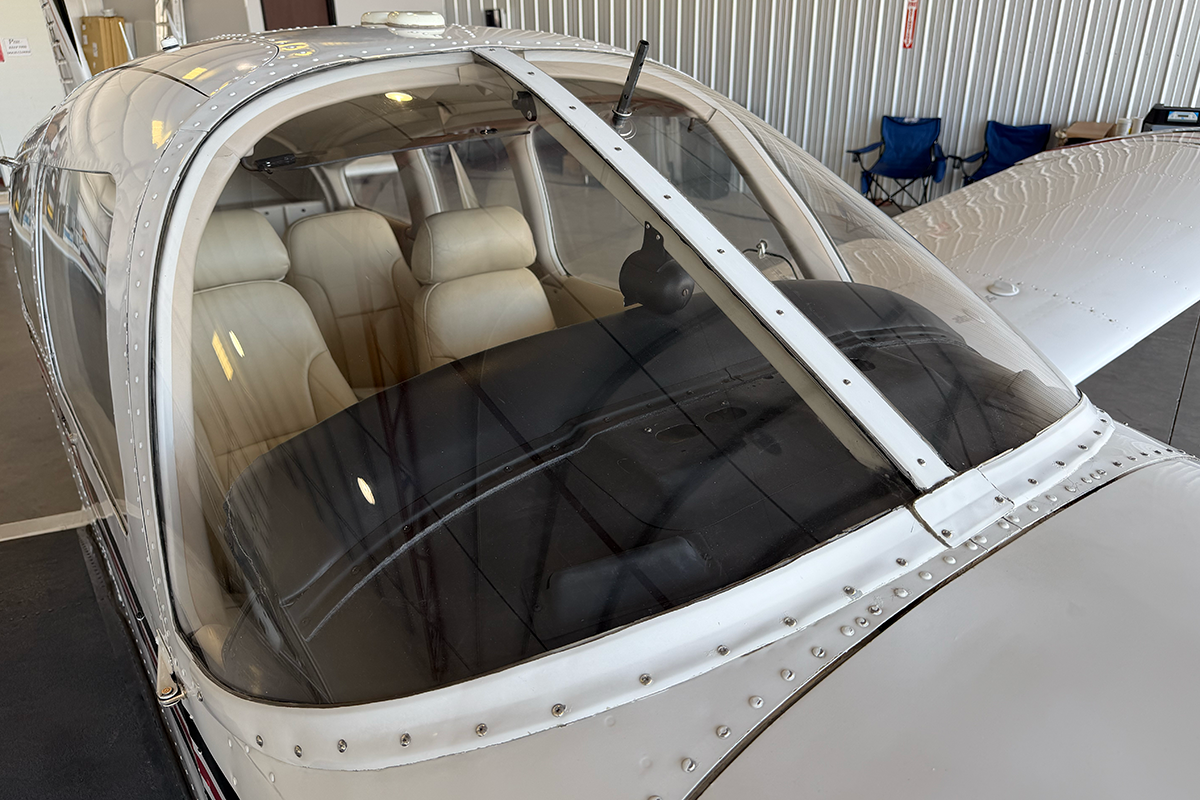

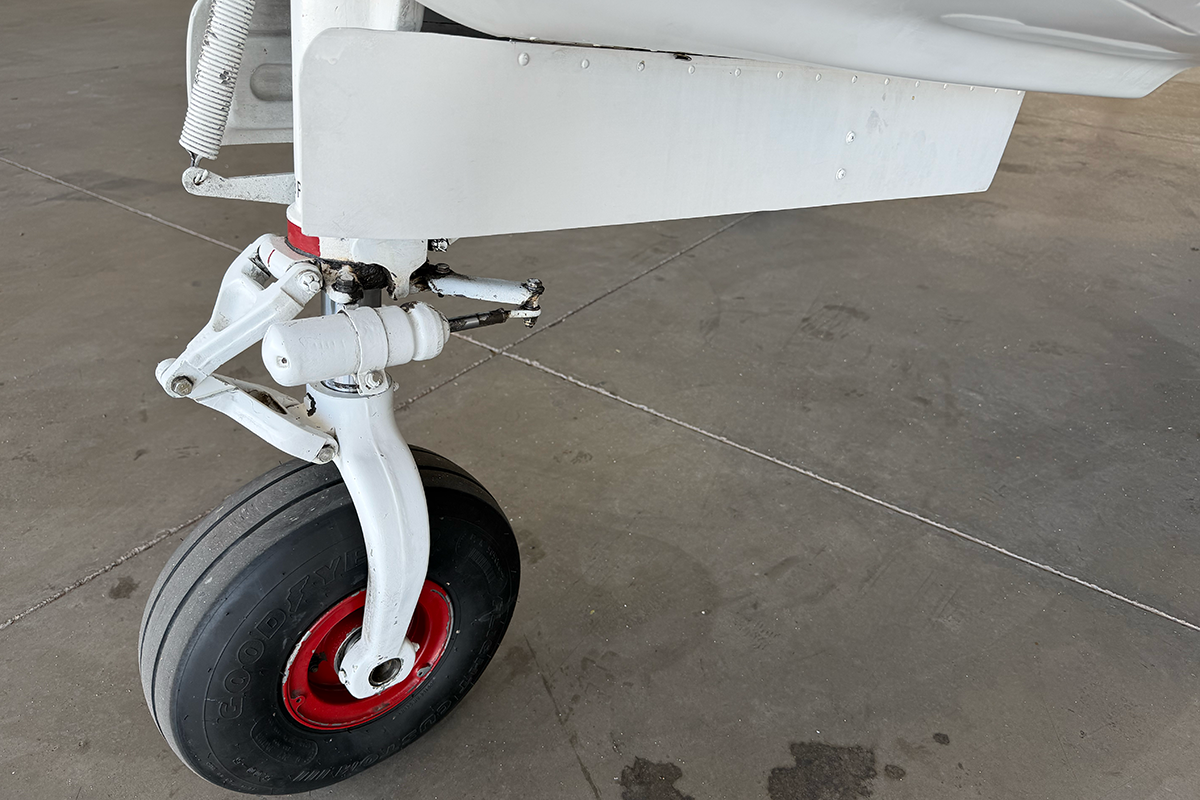

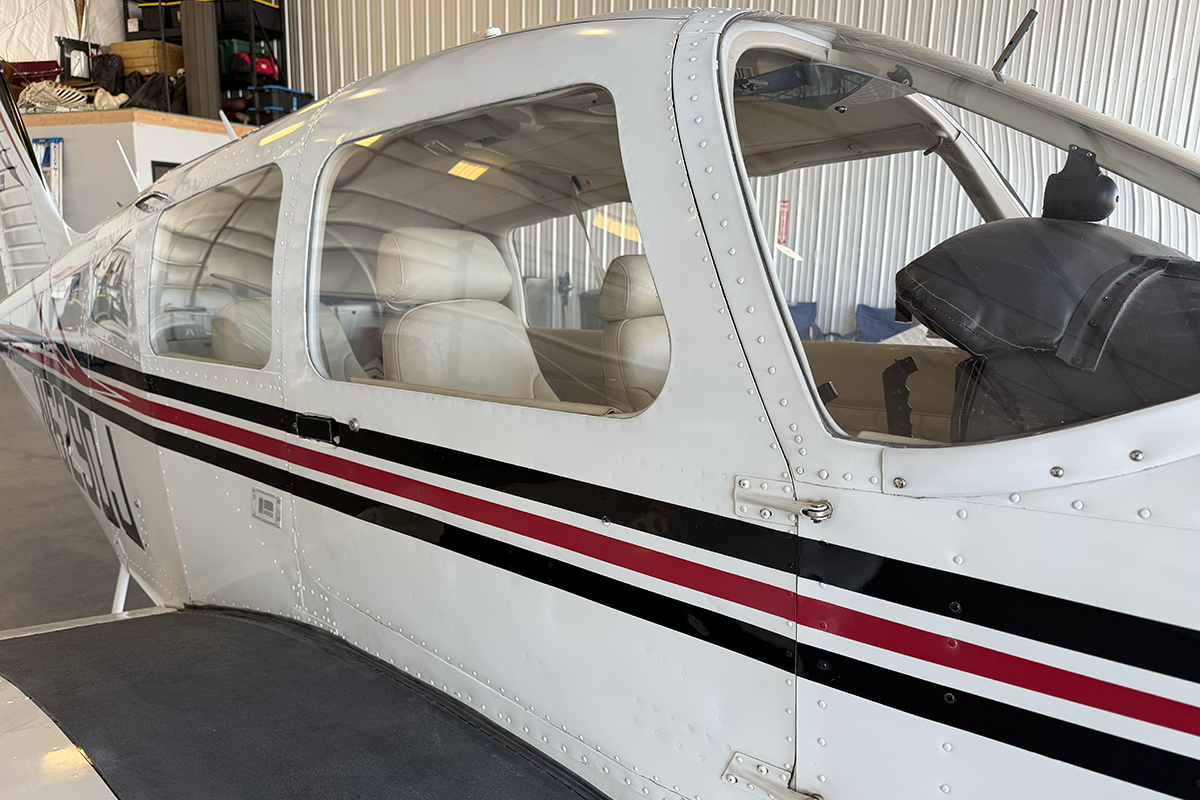

The Plexiglas windows are clear and while they show some age, there is nearly no haze in them. The tires have lots of tread and look like they are in good condition. I saw no evidence of fluid leaks from the engine or the brakes.

We invite you to explore the extensive, high-resolution close-up image gallery below to verify the good overall exterior condition of this Piper PA28R-200 Arrow II.

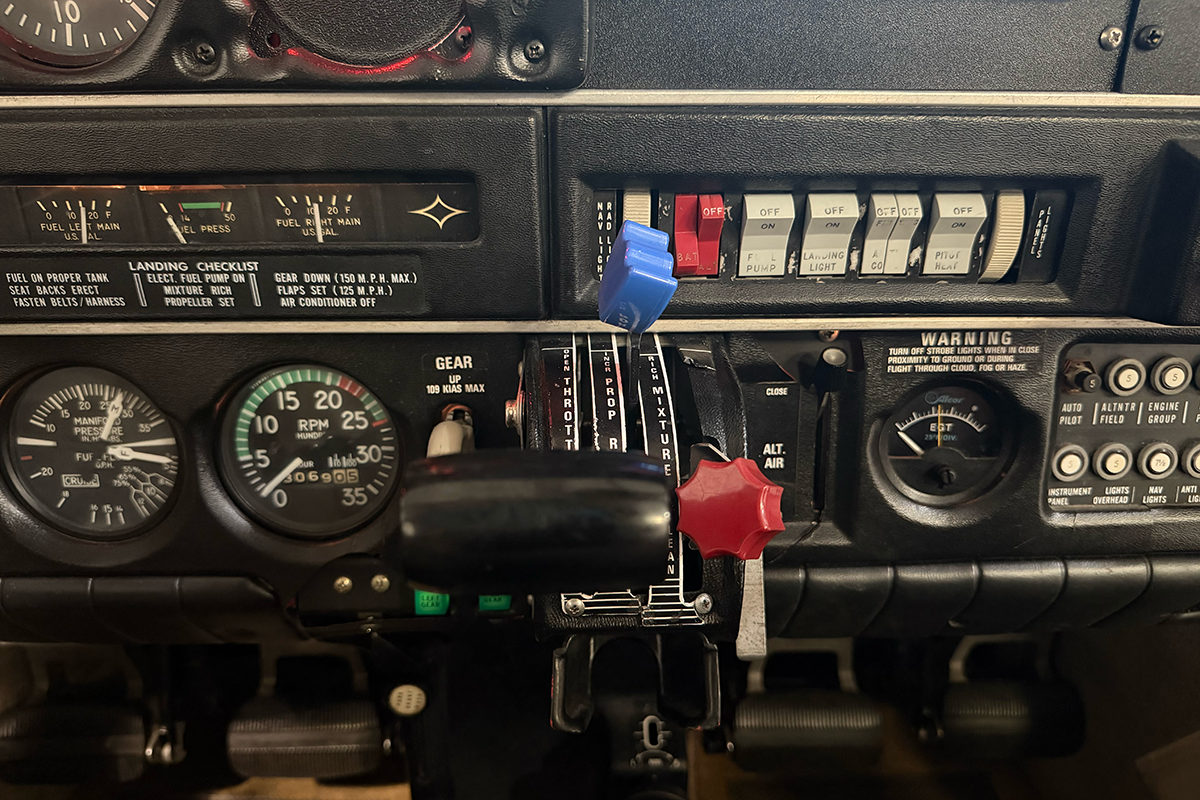

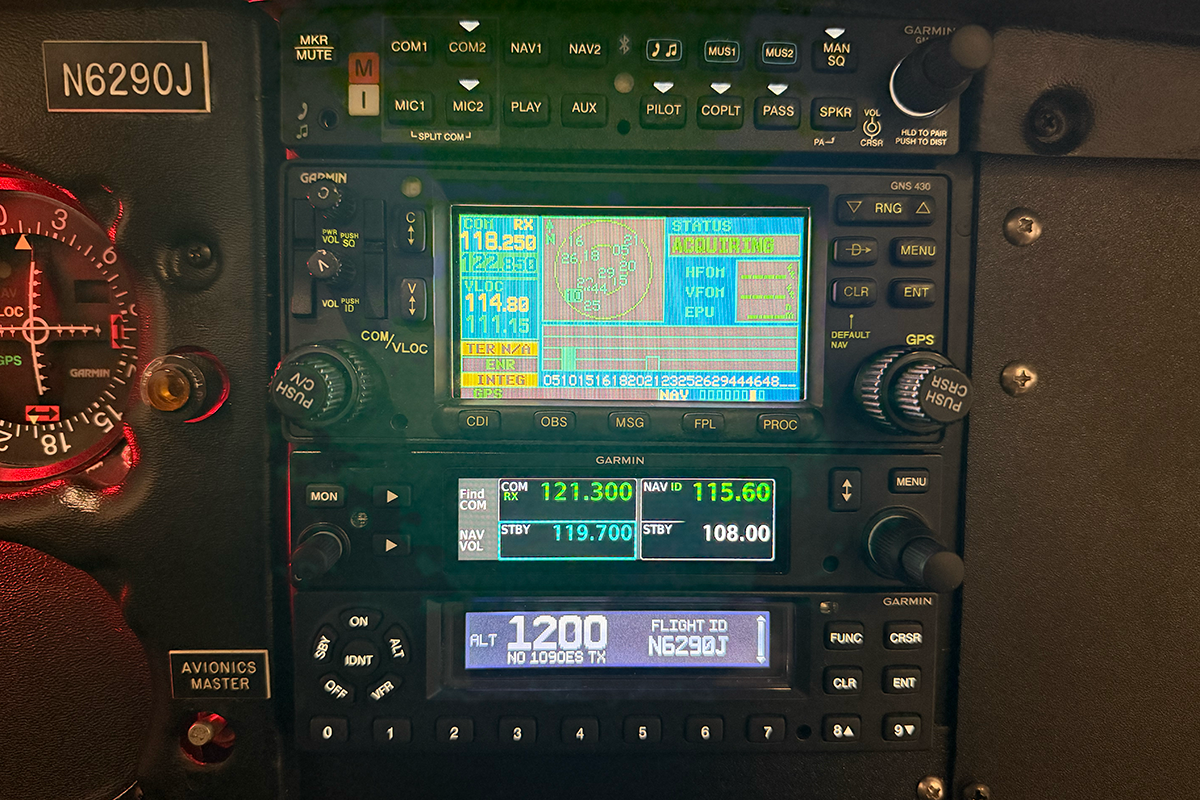

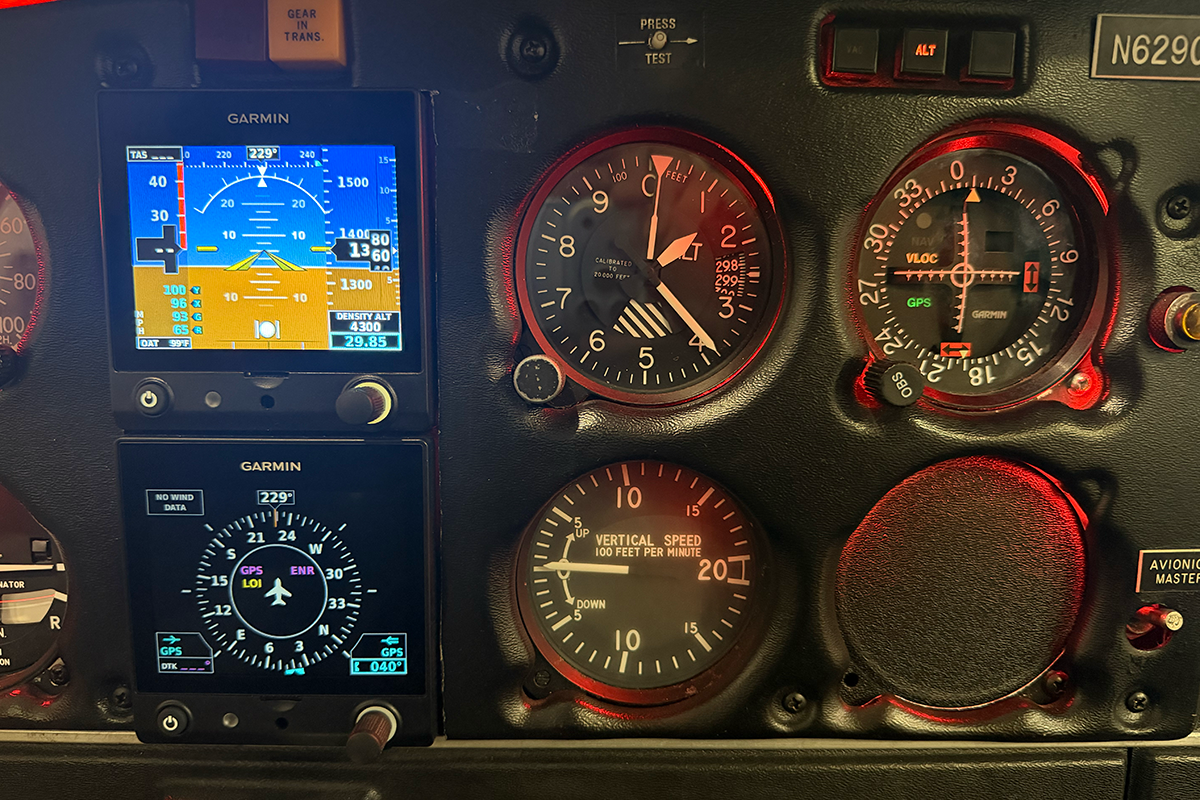

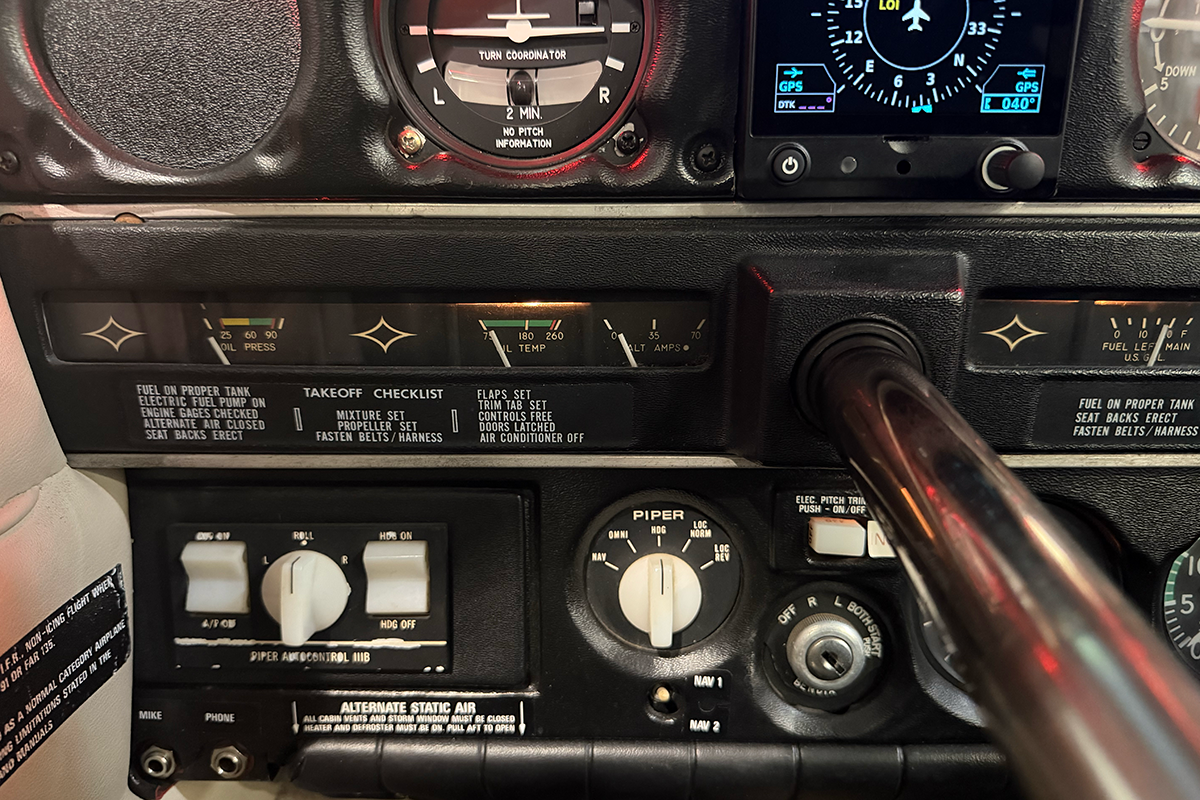

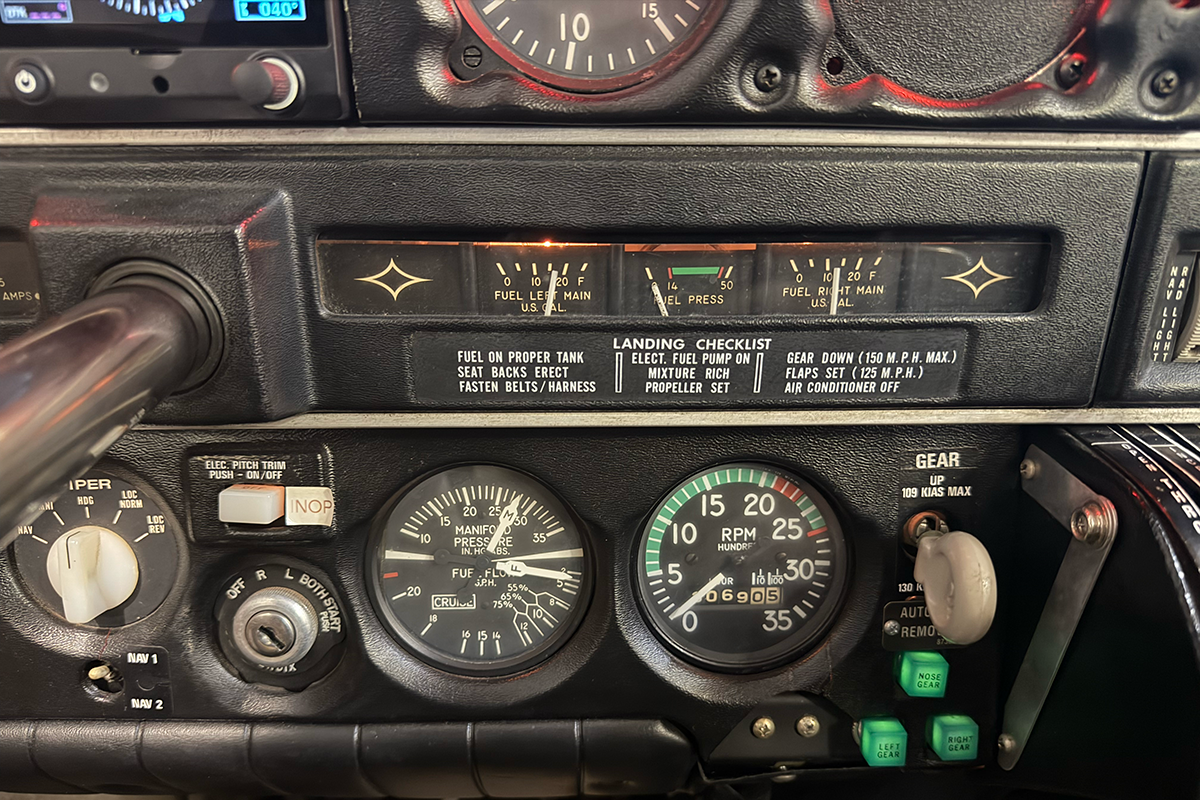

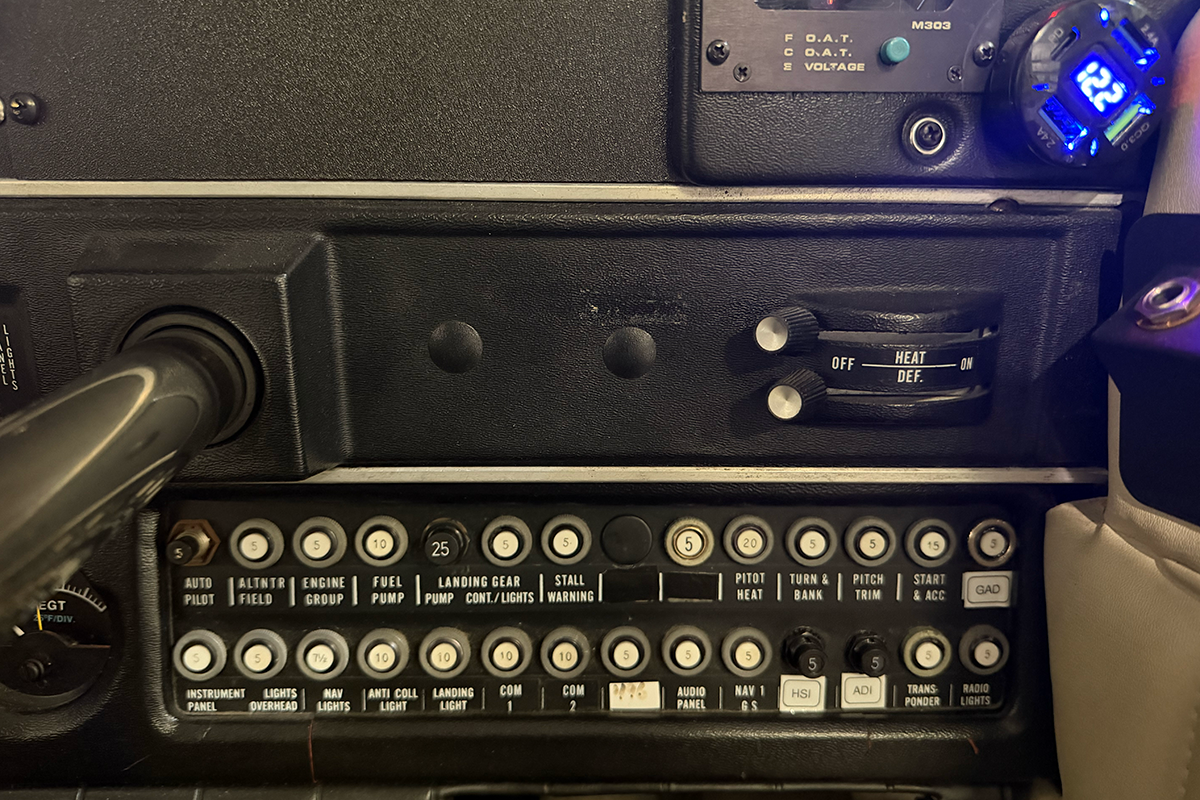

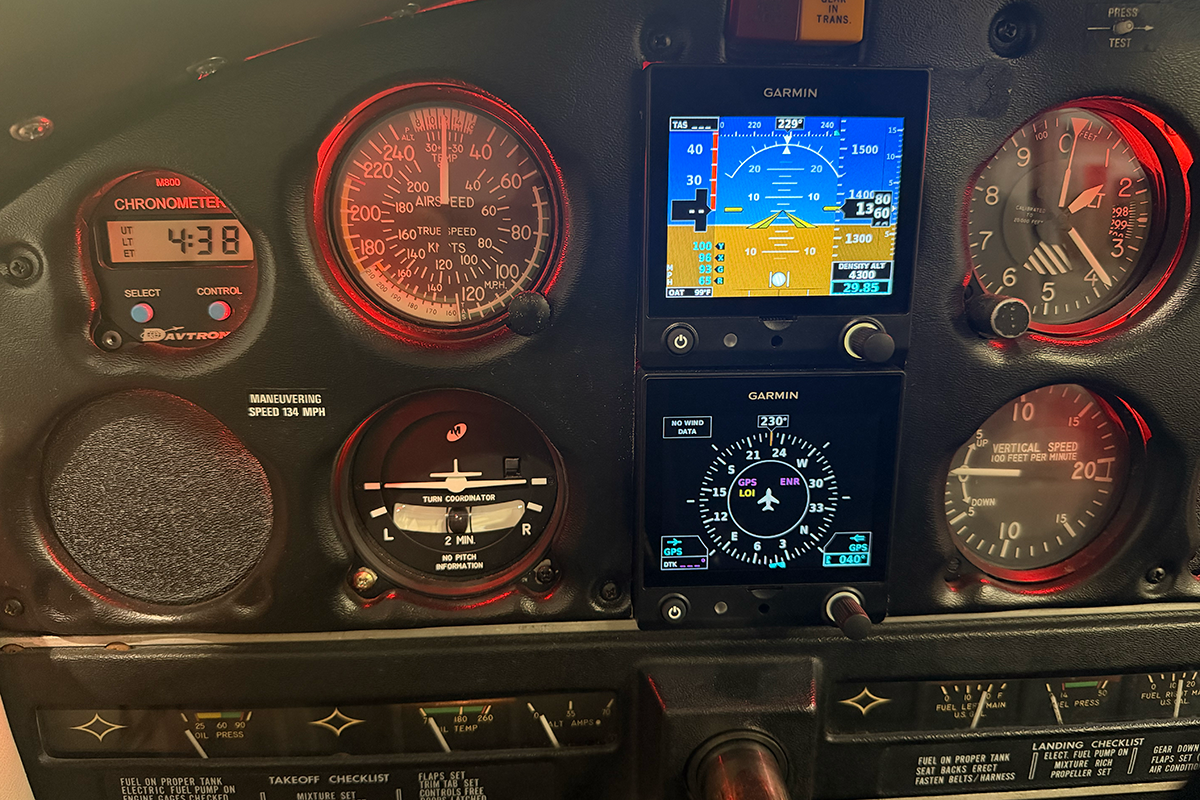

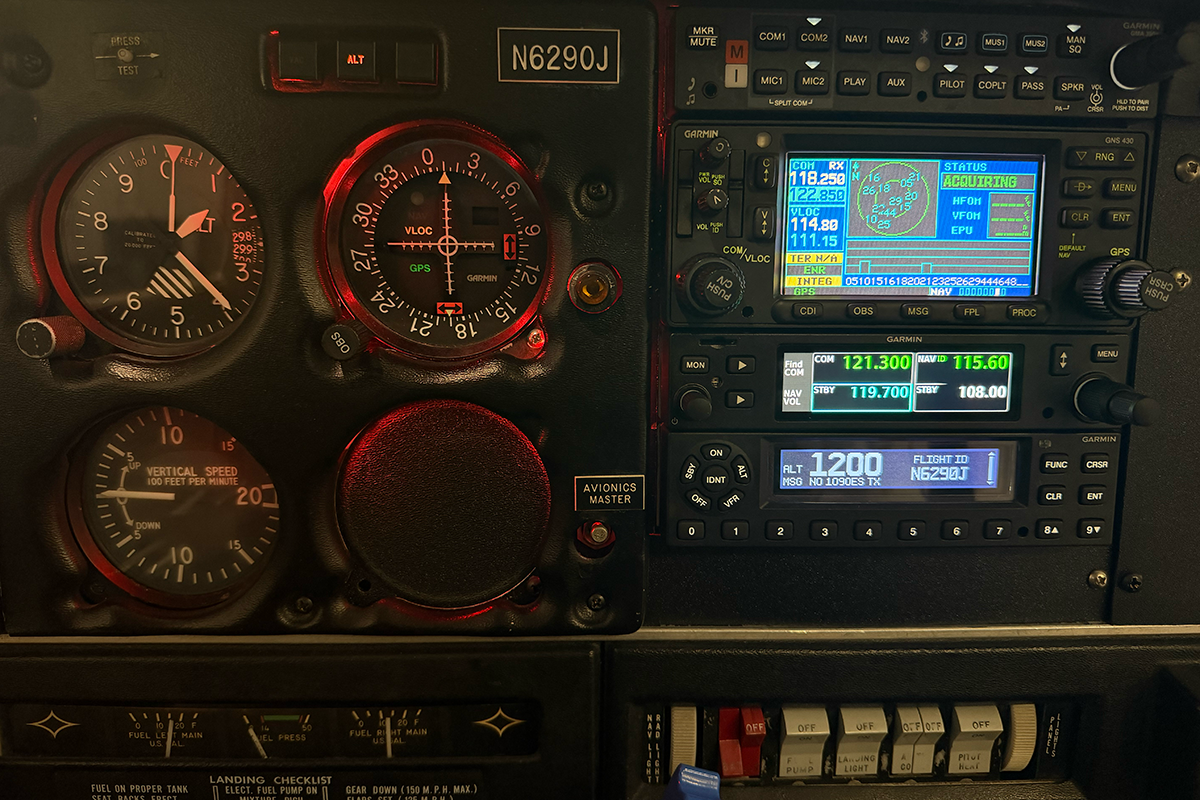

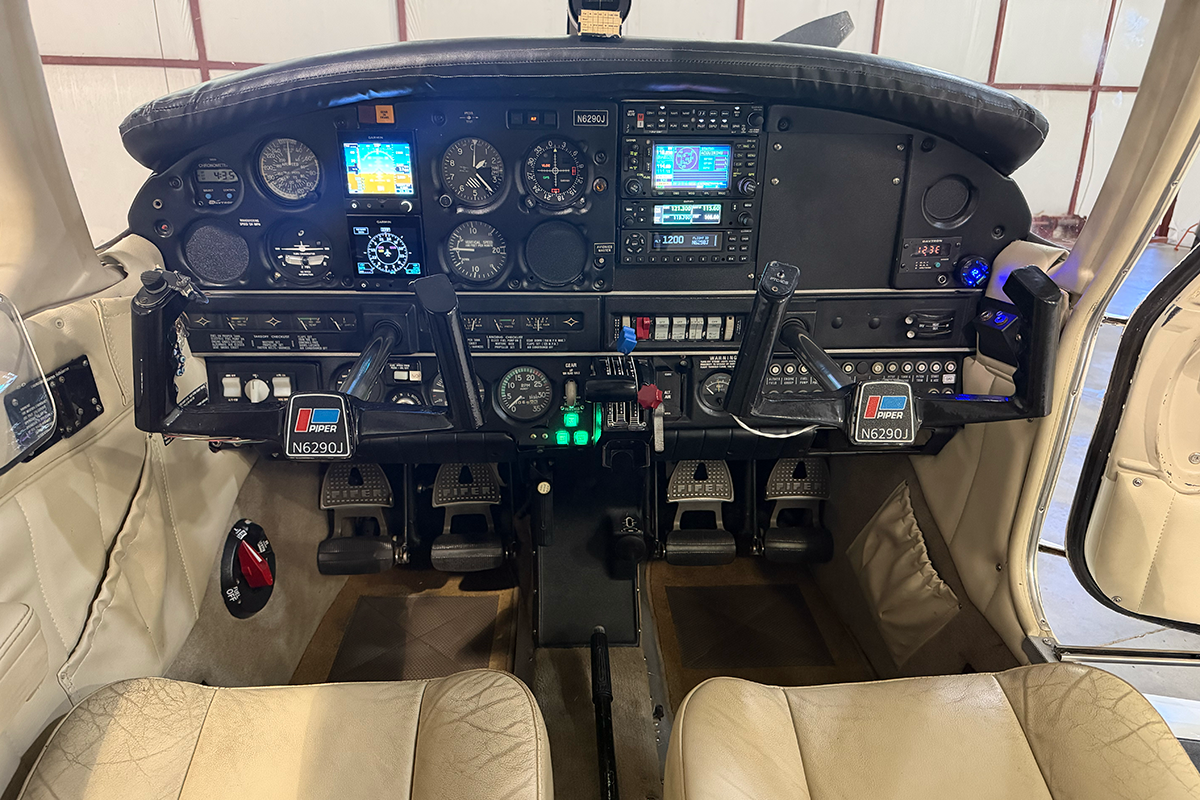

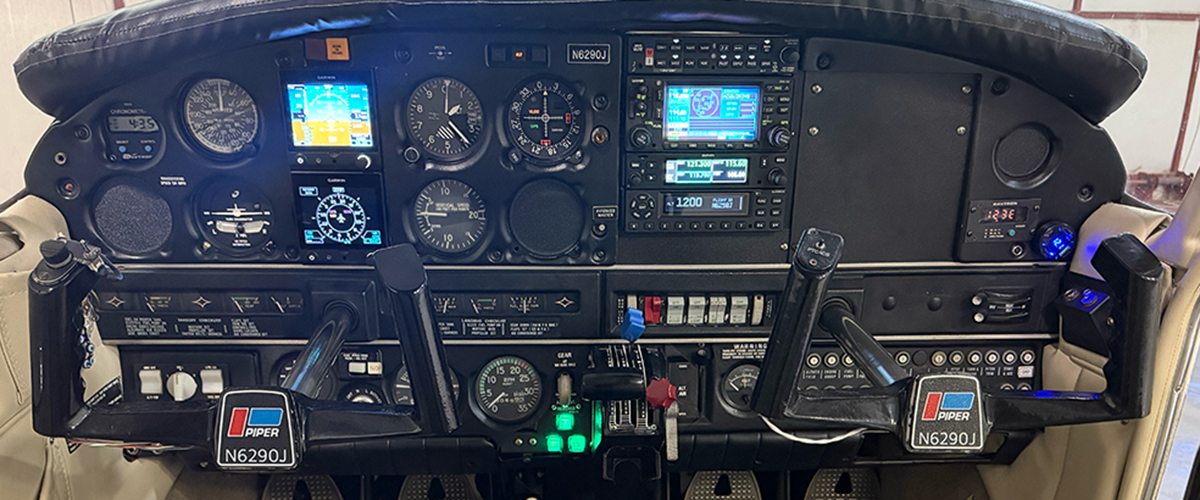

Instrument Panel - The 100% Garmin IFR panel in this Arrow II has been nicely updated, with the elimination of all vacuum-dependent instruments. The primary NAV/COMM radio, as part of the Garmin GNS 430W GPS navigator, is interfaced to dual Garmin G5 instruments (ADI and HSI). The secondary NAV/COMM radio, a Garmin GNC 215, is interfaced to a Garmin GI 106A CDI for glideslope, localizer, VOR, and GPS approaches.

N6290J is equipped with a Garmin GTX 345 transponder, the industry standard for integrated ADS-B In and Out. This unit seamlessly and wirelessly connects to your favorite EFB, such as ForeFlight, through a Bluetooth connection.

Please refer to the "Avionics and Equipment" list above for complete details of all avionics, and to the Image Gallery below for close-up images.

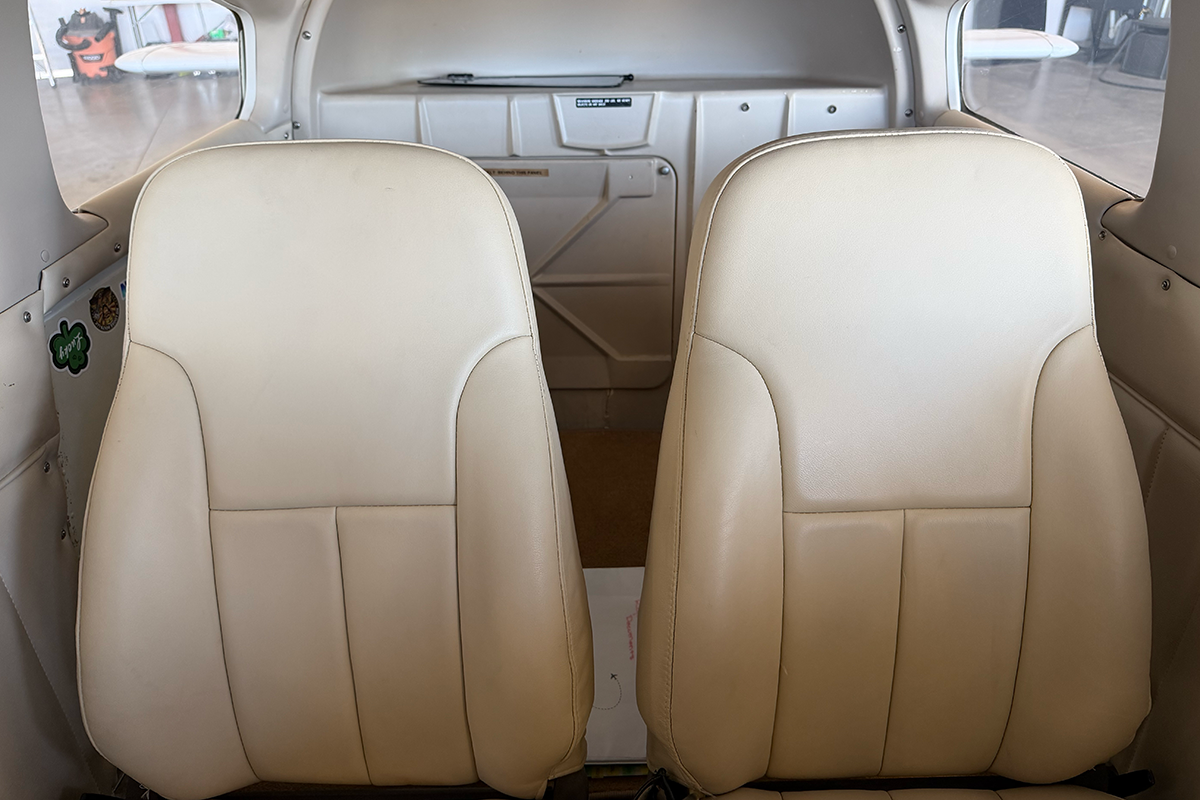

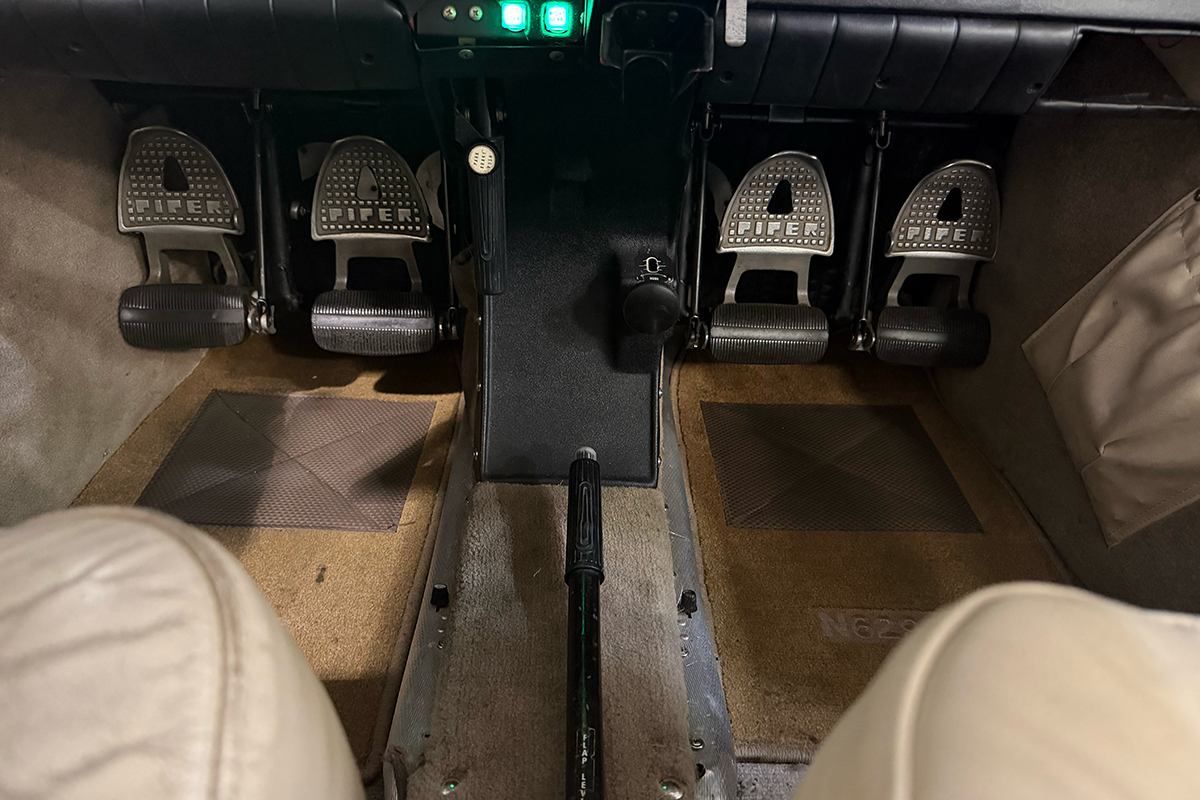

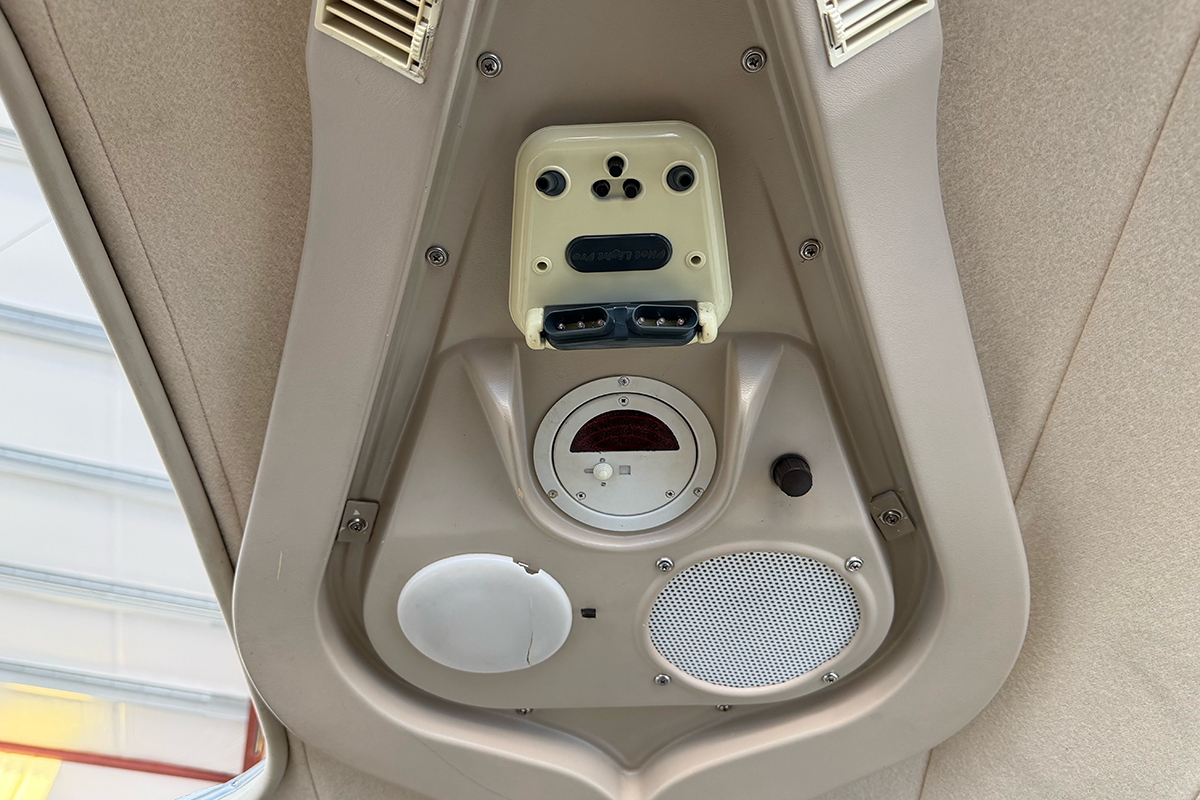

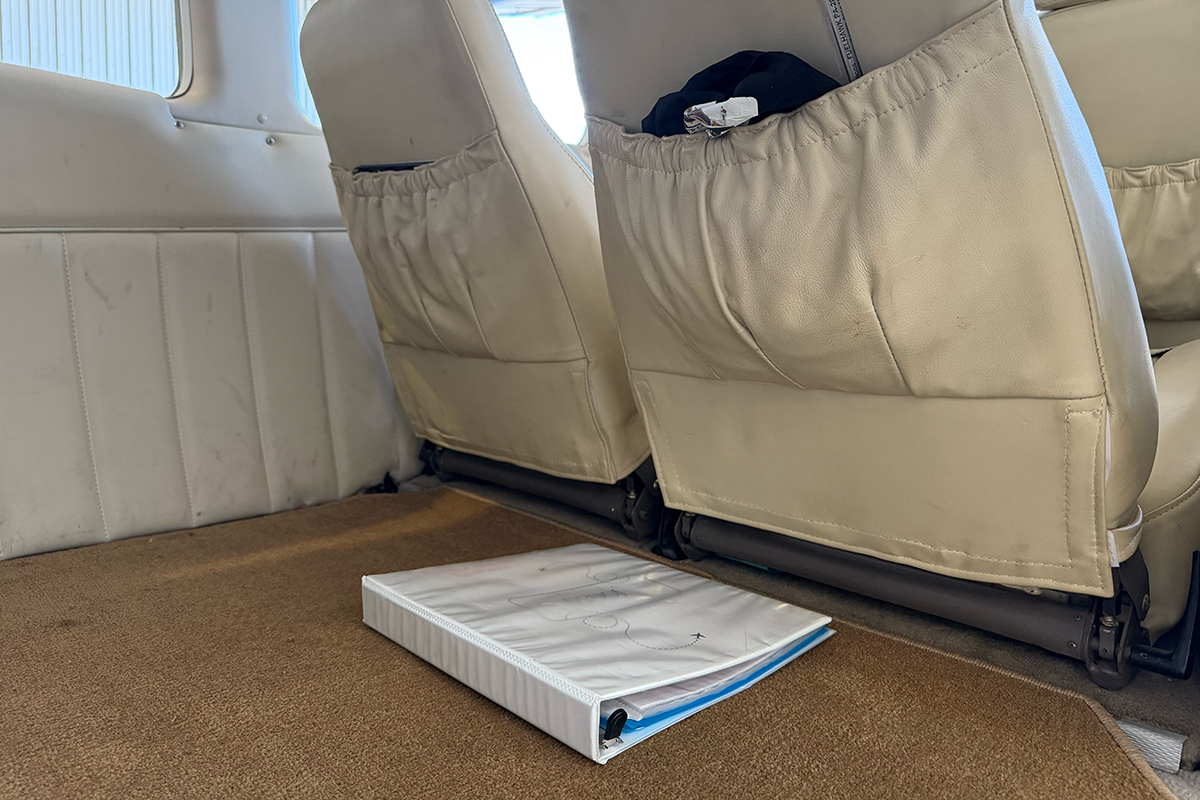

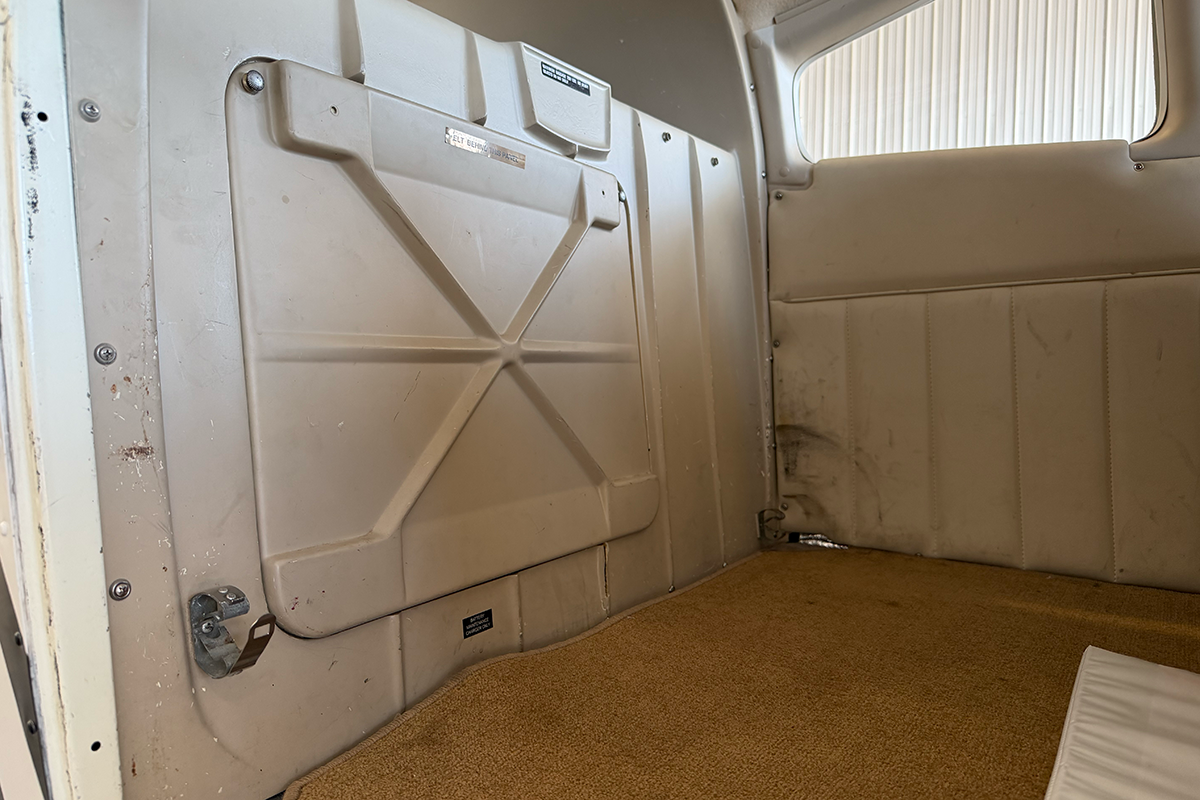

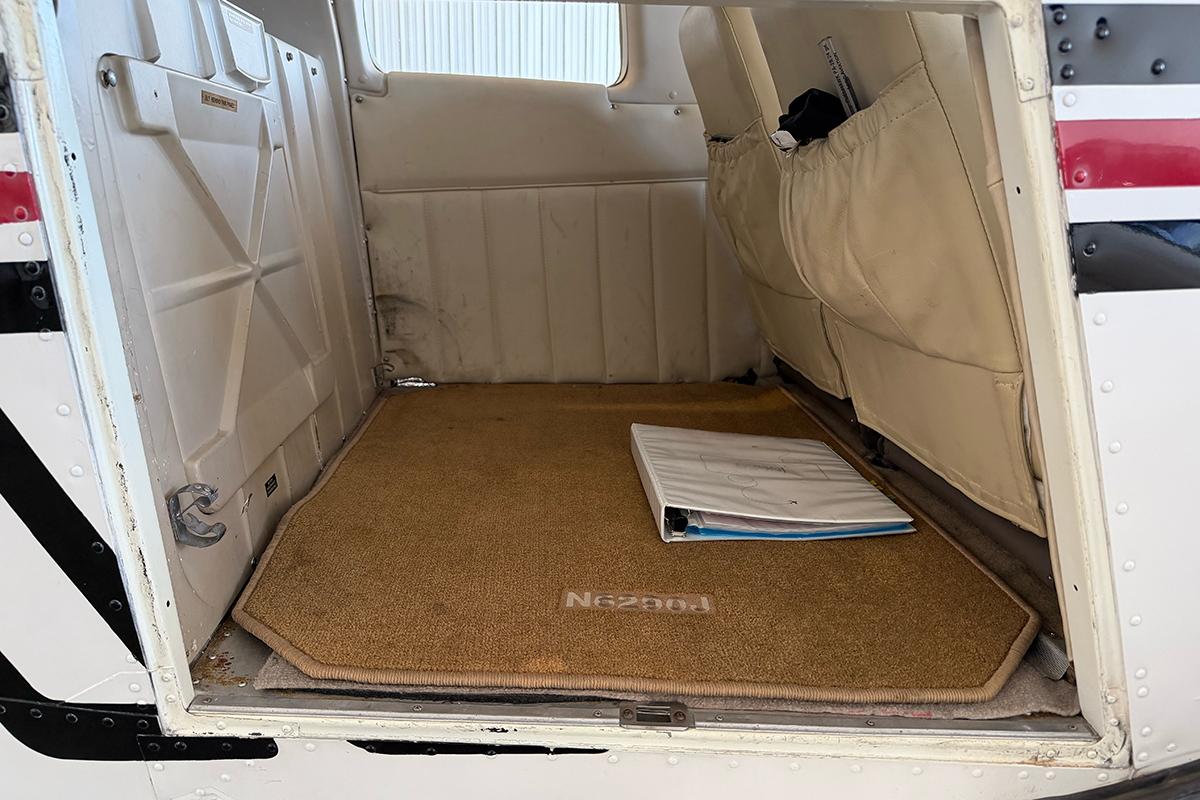

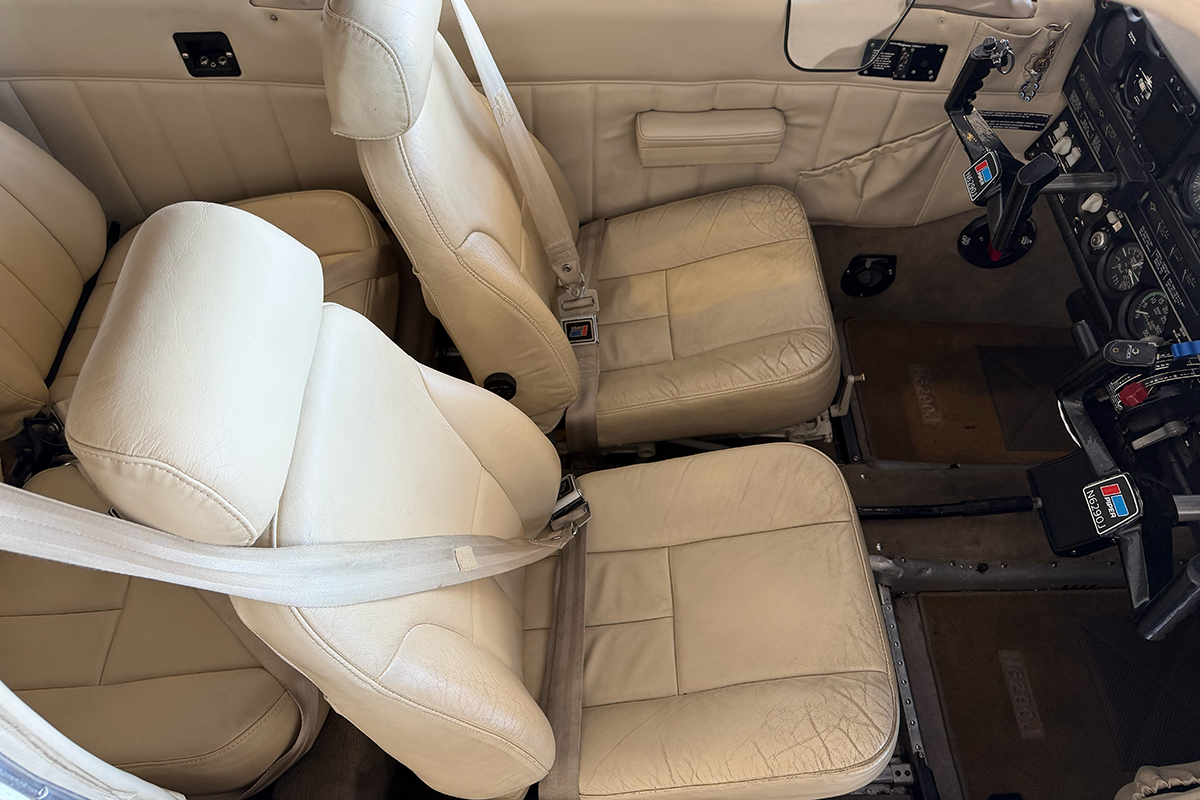

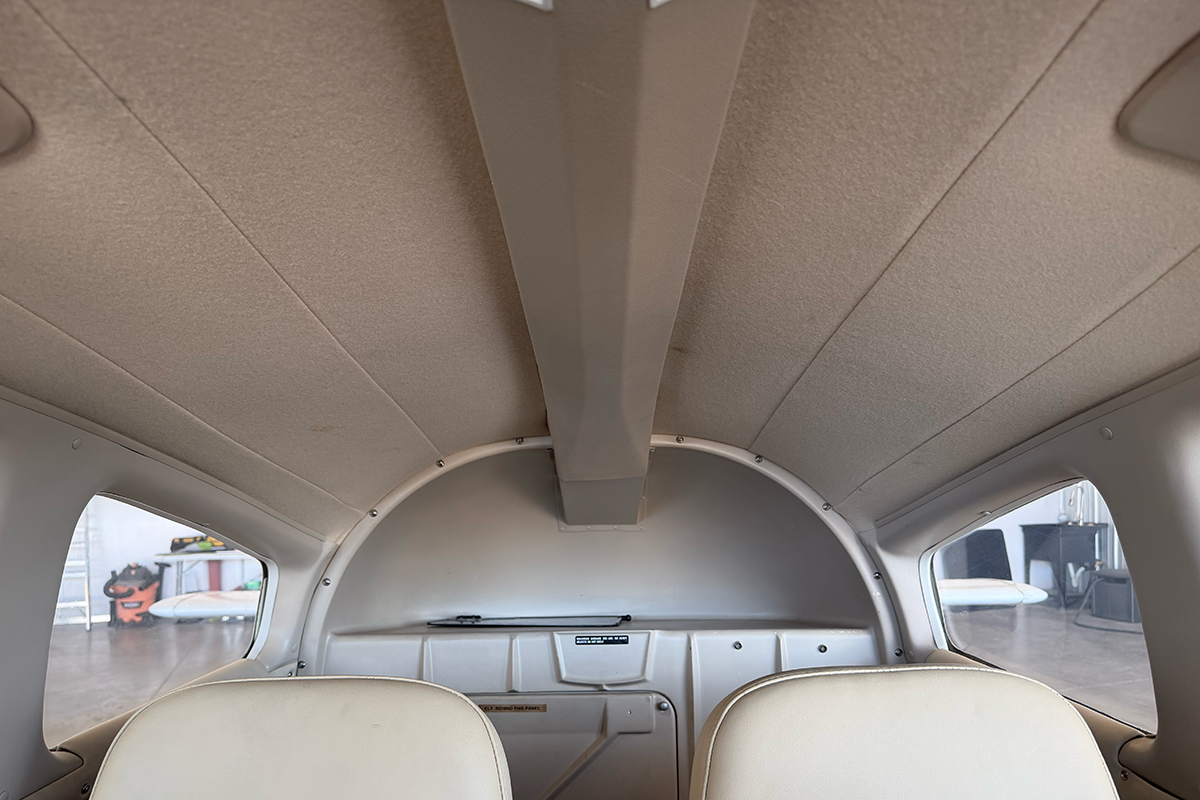

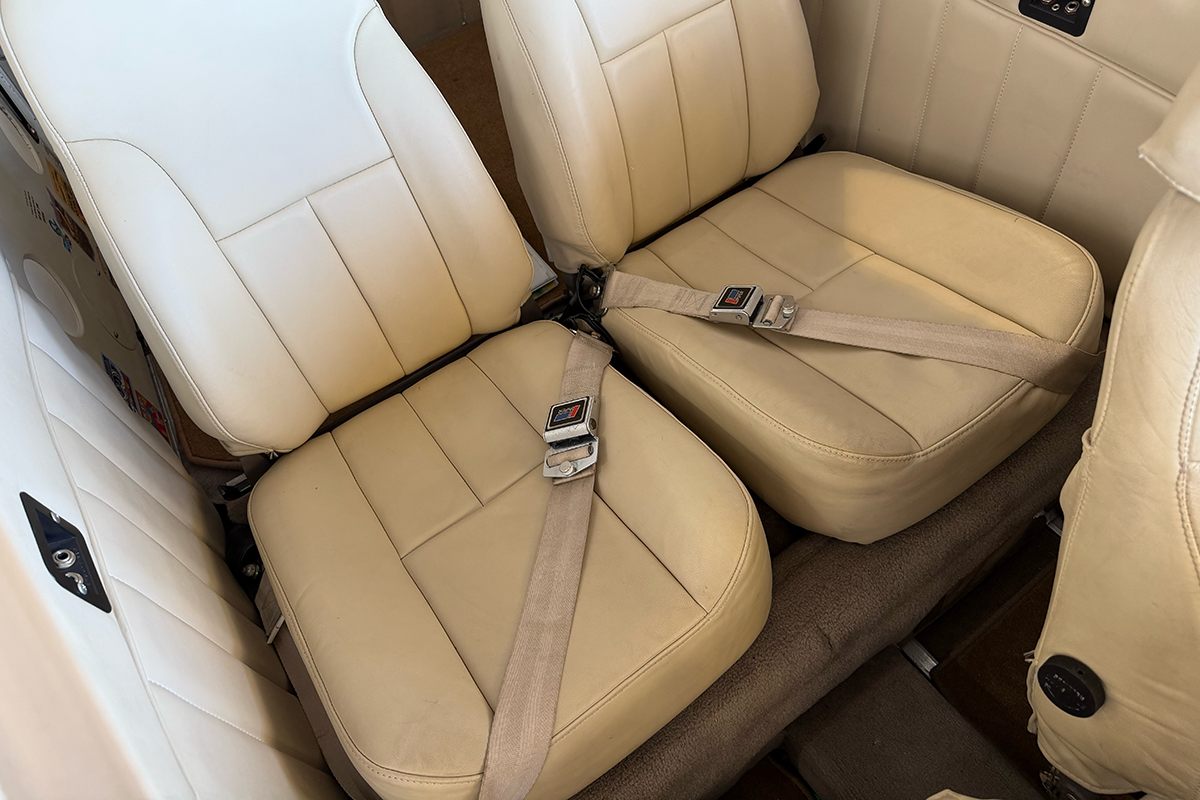

Interior - The interior of this aircraft was extensively refreshed in 2010. That restoration process included new leather upholstery, a new headliner, and new insulation to improve interior cabin noise. The seats got new foam, and all plastics were either repaired or replaced. New seatbelts were installed. Both yokes were refreshed, and the panel was painted and got new placards. The interior still looks good. The carpet shows some wear, but would respond well to deep cleaning. Overall, the interior of this aircraft looks good.

Please review the high resolution images in the Image Gallery (below) for a detailed look at the interior condition.

Logbooks available digitally upon request.
